Specifications
Brand Name :
Huashida
Model Number :
20-350mm
Certification :
CE, Rohs,TUV
Place of Origin :
China
MOQ :
1
Price :
US$200,000.00-2,500,000.00
Payment Terms :
T/T
Supply Ability :
50 Sets/Year
Delivery Time :
60DAYS
Packaging Details :
Standard Package
Computerized :
Computerized
Customized :
Customized
Line Length :
60m
Screw No. :
Single-screw
Description
One-Step PERT PU Pipe Machinery Supplier for Underfloor heating and Industrial Piping
Product Description

Huashida took 2 years to overcome about 30 technical difficulties, and developed a new one-step polyurethane foam flexible pre-insulated pipe production line with independent intellectual property rights.
The new one-step polyurethane foam pre-insulated pipe production'line includes the following processes:
The pressure-bearing and heat-resistant PERT inner working pipe extrusion, polyurethane foaming, polyurethane curing and corrugation forming,HDPE jacket coating. The whole process is online continuous production.
This production line is suitable for making both flexible polyurethane foam pre-insulated pipes and rigid polyurethane foam pre-insulated pipes, and the pipe diameter range is from 20mm to 350mm.



One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping
Product Parameters

Compare between PE-RTII insulation pipe and Ordinary insulation pipe
Picture Weight/m Cost of project Pipe Length
One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping


Light

Low

unlimited
One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping

Weight


High


Fixed-lenghth
PE-RTII Heating Pipe Structure
One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping
  1. PERT Work pipe; 2- Protective pipe; 3-Insulated pipe; 4-Stander;
  2. d1- Protective pipe outer diameter; e1- Protective pipe wall thickness; e2- Insulation Layer thickness; dn-Work pipe Nominal diameter ;en- Nominal thickness of the work tube

Production Line Details

Process Flow
Up carrier pipe--pulling up to line--pipe catching connect--transport forward---put into seal &cover film device--foaming--foam curing ---PE cover extruding--vacuum sorb -- spray cooling--checking splice--cutting splice--off-pipe--down off pipe

Equipment components
-- Plastic pipe upload table
-- Plastic pipe pulling device
-- Transfer Straight V wheel
-- Crawler-type push machine
-- Far infrared heating device
-- Pipe centering correction system
-- Foaming machine system
-- Over molding system
-- Automatic feeding machine
-- Winding machine
-- Hopper dryer
-- Extruder
-- Spray cooling water tank
-- Cutting Machine
-- Stacking table
-- Control System


More details
One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping

Extruder: PERT special single screw extruder, extrusion part using forced water cooling feeding section, machine barrel slotted, the power consumption of the main drive motor is greatly reduced; Screws with a large length-to-diameter ratio (25-38:1) have excellent plasticizing effects.

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping
Extruder head: professional PERT pipe mold, smooth inner and outer surface of the pipe, uniform wall thickness, special treatment of the flow channel, more wear-resistant, PERT pipe dedicated efficient head.

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping
Vacuum calibration box: Uniquely designed sizing sleeve, all-stainless steel vacuum box, using PERT pipe dedicated sizing sleeve, accurate sizing and good effect; High-efficiency spray cooling ensures the quality of the pipe materials.

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping

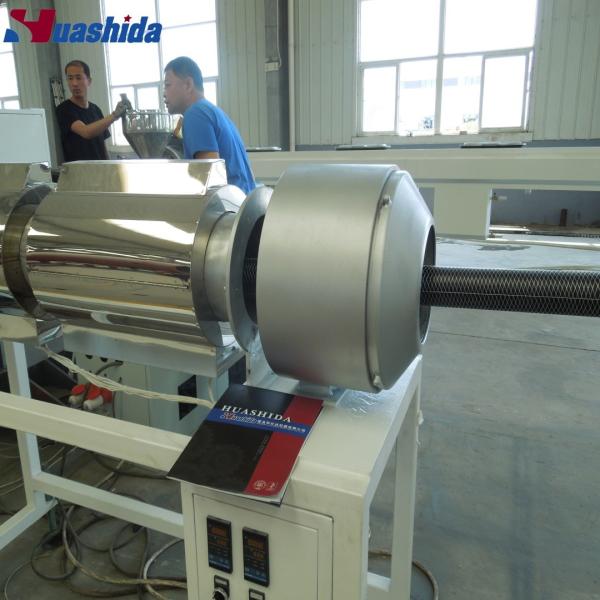

Coating die head: With a vacuum coating mold of invention patent and a specially designed coating die head, it ensures uniform thickness of the coating layer.

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping
Winding machine: A fiber-reinforced device with an invention patent, featuring efficient fiber weaving to ensure the strength of the pipe.

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping
Chipless cutting machine: Wide range cutting from 32 to 200mm; High-strength alloy steel blades, rotary knife cutting, smooth and flat pipe cutting edge with small error; The cutting follow-up ensures the precise cutting position; Professional PLC control, accurate operation; The feed position is specially designed to ensure that the cutting is completed in one go.


One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping
Application Scenarios

Huashida's continuous PERT insulated pipe pipes are ideal for a wide range of applications, including district heating, cooling systems, oil and gas pipelines, and industrial piping. Their superior insulation, anti-corrosion properties, and long service life make them the preferred choice for modern, sustainable piping systems.

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping

Customer cases


One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping
One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping

Exhibition

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping

Certifications

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping

One-Step Pert PU Pipe Machinery Supplier for Underfloor Heating and Industrial Piping
