Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
Specifications
Brand Name :
Huashida
Model Number :
20-350MM
Certification :
CE, Rohs，TUV
Place of Origin :
China
MOQ :
1
Price :
US$70,000.00-300,000.00
Payment Terms :
T/T
Supply Ability :
30 Unit/Year
Delivery Time :
60DAYS
Packaging Details :
Standard Packing
Three Layers :
Inner Pipe + PU Foam + HDPE Outer
Screw No. :
Single-screw
Customized :
Customized
Application :
Used for Sewerage and Drainage in City
Description
Industrial piping systems PU Foaming PERTII PEX Fiber-Reinforced Insulation Pipe Production Line
Product Description
---Pipe diameter range:20-350mm
What is polyurethane foam PERT insulation pipe?
Polyurethane PERT insulation pipe is called flexible insulation pipe in international, Chinese standard name is II type heat-resistant polyethylene (PE-RTII) low-temperature direct buried heating pipe.

One-step pert flexible insulation pipe production line process flow:
Pipe unwinding - unwinding traction - V-shaped wheel conveying - track feeding - encapsulation and film coating - Pouring foaming - foam curing -PE layer O-shaped extrusion - Vacuum suction coating - spray cooling - winding
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line

Production line composition
The flexible pre-insulated pipes production line consists of the following components:

1) Production line for inner pressure pipe (PERT, PEX)
2) Inner pipe unwinding device
3) Pipe feeding device
4) Conveyor
5) Pipe centering device
6) Preheating and temperature control
7) Film feeding device
8) High-precision foaming machine
9) Forming machine with temperature control

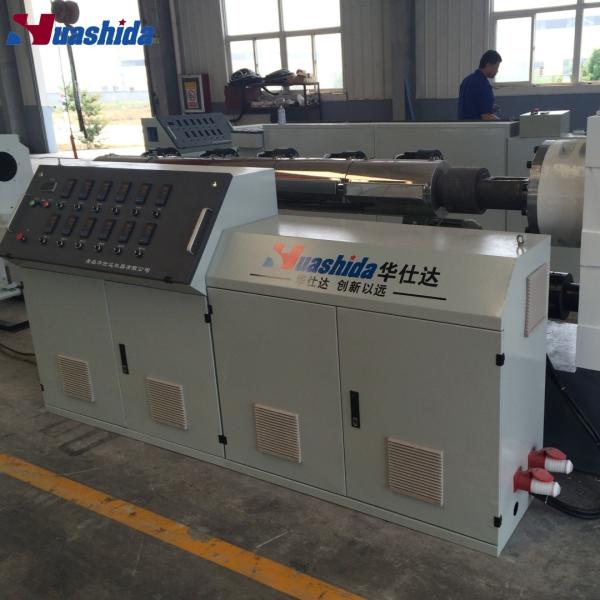

6) Extruder for casing pipe and water cooling
7) Pull-off device
8) Winding machine


Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
Pipe Structure:
Inner pipe: PE, PE-RT, Steel,PERT-II, PE-Xa
Insulation layer: Polyurethane (PPU)
Outer sheath: HDPE
Our Advantages

Advantages of the flexible pre-insulated pipe production line:
1.Substantial cost savings
2.Continuous production method enables long delivery lengths,less pipe ioints
3.Flexible pipes can insulated directly underground and demands smaller excavation
4.Excellent mechanical properties
5.Flexible pipes are easy to transport,handle and storage

Compare between PE-RTII insulation pipe and Ordinary insulation pipe
Picture Weight/m Cost of project Pipe Length
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
Light
Low
unlimited
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line

Weight

High

Fixed-lenghth
Technical Parameters

Style Diameter
(mm)		 Extruder Extrusion speed
Meter		 Capacity (Kg/h) Dimension (m)
Style Total Power
(KW)
SKRG1200 300-1200 SJ65× 30 230 1-12 320 26× 18× 5.0
SKRG2200 1000-2200 SJ90× 30 380 0.5-5 650 28× 19× 5.0
SKRG3000 1600-3000 SJ90× 30 390 0.3-3 800 48× 26× 6.0
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line


Comparison chart of the long-term durability of PE-RT II type pipes with metal-plastic pipes, PEX pipes and PPR pipes

Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line

Application scenarios

District heating and cooling networks
Residential and commercial building pipelines
Industrial piping systems
Transportation of hot and cold fluids
Industrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production LineIndustrial Piping Systems PU Foaming PertII Pex Fiber-Reinforced Insulation Pipe Production Line
