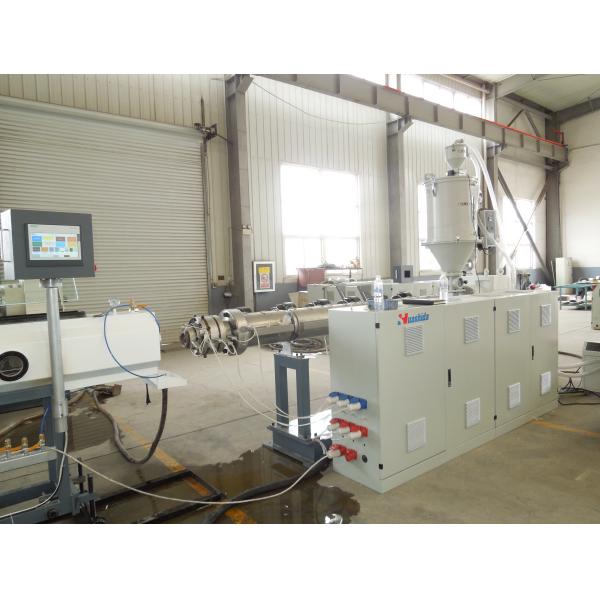

High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line
High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line
High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line
High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line
Specifications
Brand Name :
huashida
Certification :
CE, ISO, RoHS
Place of Origin :
Qingdao , China
MOQ :
1
Price :
US$150,000.00-200,000.00
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30 Sets/Year
Delivery Time :
60days
Packaging Details :
Standard Package for Export
Max Speed :
6m/Min,1.2m/Min
Material :
PP/HDPE
Field :
Drainage/Water Supply/Sewage Discharge/Agricultura
Max Output :
1000kg/H
Description

High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line for Efficient Drainag


Advanced HDPE/PP Double Wall Corrugated Pipe Production Line

This production line represents our independently developed, new-generation solution for high-speed, water-cooled corrugated pipe manufacturing, incorporating advanced international technology.

Utilizing polypropylene (PP) or high-density polyethylene (HDPE) as primary raw materials, it produces high-quality single and double-wall corrugated pipes. The unique corrugated structure of these pipes provides exceptional advantages, including light weight, high impact strength, excellent corrosion resistance, and reliable performance across a wide temperature range.

Consequently, they are widely applied in urban drainage & water supply, infiltration systems, building plumbing, cable ducting, bridge cable protection, agricultural irrigation, and more.

Line Features & Technical Advantages:

High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line

High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line

Sealed & Efficient Cooling: The mold carrier employs a sealed water-cooling structure where left and right modules move along a closed-curve path. A uniquely designed circulating water circuit ensures highly reliable and effective cooling with minimal hydraulic impact, guaranteeing consistent production stability and superior pipe surface quality.

Robust & Precise Drive System: A gear-driven mechanism ensures smooth operation with automatic wear compensation, low noise, long service life, and high synchronization accuracy between modules.

Material & Structural Excellence: Dedicated to processing PP and HDPE, the line produces pipes that are lightweight yet robust, corrosion-resistant, and suitable for diverse environmental conditions.


​

Product Parameters

pipe

Extruder

Corrugator

Maximum speed

style

DN

Model

Capacity

series

mold block qty

m/min

PP/PE double wall corrugated pipe

ID-200-600

SJ-90*36/SJ-75*36

600kg/h

DWCP-600

36

6

ID 600-1000

SJ-120*36/Sj-90*36

1000kg/h

DWCP-1000

39

12

​

High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
Radiation Cross-Linked PE Heat Shrinkable Sleeve
Electro Fusion Sleeve
Portable Hand Extrusion Welder
HDPE Welding Wire Welder Rods


Customer cases

High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line

Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line
Our team
High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line
Delivery
High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line
Exhibition
High-Strength HDPE/PP Double Wall Corrugated Pipe Production Line
Certifications
High-Strength HDPE/PP Double Wall Corrugated Pipe Production LineHigh-Strength HDPE/PP Double Wall Corrugated Pipe Production Line
