Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Specifications
Brand Name :
huashida
Certification :
ISO9001:2008
Place of Origin :
Qingdao，China
MOQ :
1
Price :
US$250,000.00 - 500,000.00 1 Piece (MOQ)
Payment Terms :
L/C,D/P,Western Union
Delivery Time :
90 days
Board Layers :
Multilayer
Automation :
Automatic
Basing Tape Thickness :
0.2-1mm
Basing Tape Max. Width :
1000mm
Description

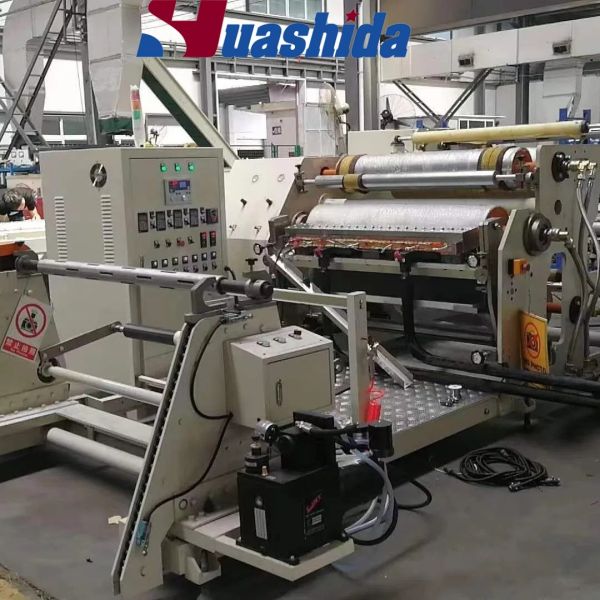

Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes

Product Description
This complete line produces cold-applied polyethylene (PE) anti-corrosion tapes.
• Composition: Three main sections: PE base film extrusion, adhesive coating, and slitting.
• Application: Protects underground/above-ground pipelines in oil, gas, petrochemical, and wastewater sectors.

Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes

Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes

Manufacturing Process Flow:
• Extrusion: PE granules are melted and formed into a uniform base film, then cooled on rollers.
• Coating: A butyl-based adhesive is precisely applied to the film, creating the functional layer.
• Slitting: The coated film is slit to the required tape widths.
• Finishing: Tape rolls are wound, inspected, and packaged for shipment.

Product Parameters
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap TapesComplete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap TapesComplete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes

PE basing file extrusion line


 Equipment Name Quantity
1 Vacuum automatic feeder 1
2 Hopper dryer 1
3 SJ-75X30 extruder 1
4 Hydraulic screen changer 1
5 Die head mold type 1000 1
6 Multi-roller tape-casting machine 1
7 Winding machine 1
8 PLC computer control system 1


Adhesive coating machine

No. Equipment Name Qua.
1 Frame 1 unit
2 200N·M Magnetic powder brake + Silicone stick 1300mm with corona processor 1 unit
3 100N·M Magnetic powder brake 1 unit
4 100N·M magnetic powder clutch 2 unit
5 200N·M magnetic powder clutch 1 unit
6 Screw 1 unit
7 Force-feed device 1 unit
8 Constant pressure system 1 unit
9 Adhesive delivery pipe 1 unit
10 Winding machine 1 unit
11 Unwinding machine 2 unit
12 Coating compound equipment 1 unit
13 Main engine frequency converter 1 unit
14 Extruder frequency converter 1 unit
15 Thermal switch 1 unit
16 PLC 1 unit




Our Advantages
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap TapesComplete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap TapesComplete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes

√ Equipped with advanced manufacturing technology

√ Ensures stable and reliable operation

√ Highly automated system to reduce labor intensity and operating costs

√ Delivers premium product quality meeting international standards

√ Provides a complete turnkey solution - including design, installation, commissioning, and training

√ Backed by global experience with over 389 production lines in operation worldwide

√ Supported by a team of 9 senior professional engineers

√ Home to a national high-end expert workstation for plastic machinery technology in China

Customer cases


Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes

Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Our team
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Delivery
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Exhibition
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
Certifications
Complete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap TapesComplete System for Manufacturing Pipeline Anti-Corrosion Cold-Wrap Tapes
