PU Spray and PE Wrapping Pre-Insulated Pipeline Manufacturing Production Line

Product Description

The polyurethane sprayed polyethylene thermal winding preinsulation pipe production line independently developed by Huashida, consists of three parts: External shot blasting and derusting collector production line, polyurethane spraying production line, and PE winding production line.
It is mainly used in pipeline engineering for oil, natural gas, and district heating. This production line uses an automated process to form a uniform insulation layer on the pipe surface, improving thermal efficiency and service life.It has significant economic and social benefits.

Rust Removal Polyethylene wrapping Water cooling

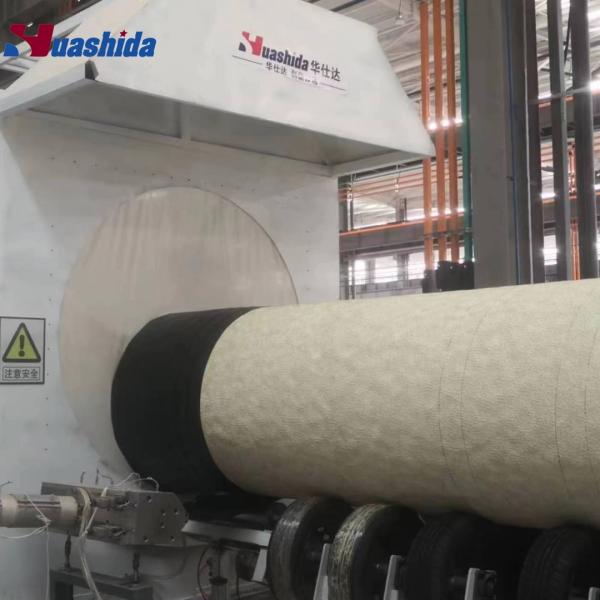

Automated Large-Diameter Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray Foam
Automated Large-Diameter Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray Foam
Automated Large-Diameter Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray Foam


Key Processes:
Steel Pipe Rust Removal: The steel pipe surface is treated to remove rust, ensuring a clean surface.
Preheating: The cleaned steel pipes are preheated using medium-frequency heating.
Polyurethane Foam Spraying: Polyurethane raw materials (isocyanate and polyol) are mixed using a high-pressure foaming machine and evenly sprayed onto the preheated steel pipe surface.
External Protection: Polyethylene (PE) material is used for wrapping.
Cooling and Shaping: Water cooling system.
Cutting: The insulated pipes are cut to the required length.
Trimming: The ends of the pipes are trimmed to ensure a flat end face, facilitating subsequent installation and connection.

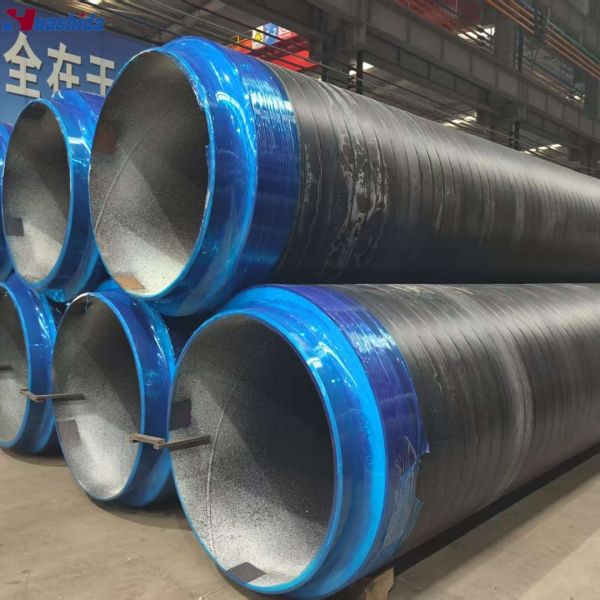

Finished Product Output: Automatic unloading and packaging.

Automated Large-Diameter Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray FoamTechnical Features:
1. Dust removal meets environmental standards(The three-level dust removal )
2. Suitable for the production of large-diameter insulation pipes
3. Automated operation of production lines
4. Spraying saves materials
5. Efficient extrusion of pipelines
6. Automated precision machining of pipeline interfaces

Advantage:
Awarded the first (set) technical equipment in Shandong Province

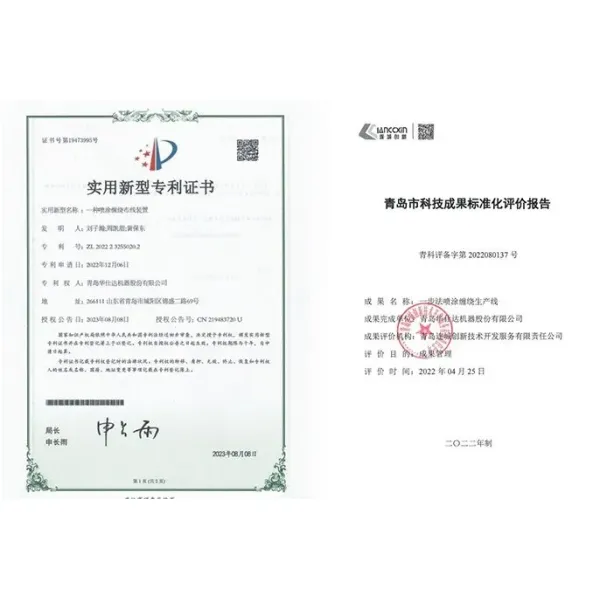

Evaluation Report on Standardization of Scientific and Technological Achievements in Qingdao City
Having multiple national patents
Automated Large-Diameter Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray Foam
Automated Large-Diameter Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray Foam
Product Parameters
Steel pipe diameter Thickness of insulation pipe Diameter of outer protective tube Minimum wall thickness of outer protective layer
500 30-60 580-640 5.6
630 30-60 710-772 6.6
710 30-60 790-850 7.2
800 30-60 885-950 7.9
900 30-60 980-1054 8.7
1000 30-60 1090-1155 9.4
1100 30-60 1190-1250 10.2
1200 40-100 1316-1436 11
1400 50-100 1538-1638 12.5
1500 50-100 1638-1738 12.5



Production line parameter:
Steel pipe range: 206mm-1820mm
Processing capacity:≤250m2/h
Cleaning class: Sa2.5
Used material: ISO (isocyanate), POLY (premixed polyether polyols), PE
Main equipment: Shot blasting and rust removal production line, Polyurethane spray production line, PE winding production line.
Detailed Photos

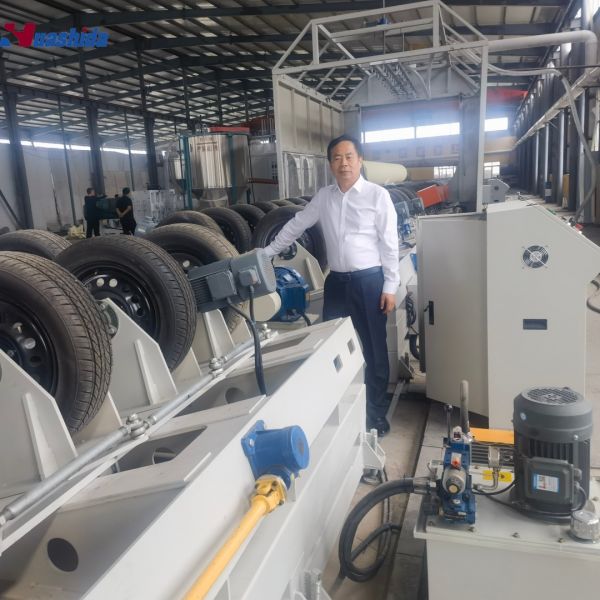

Production line equipment Photos show

Automated Large-Diameter Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray Foam

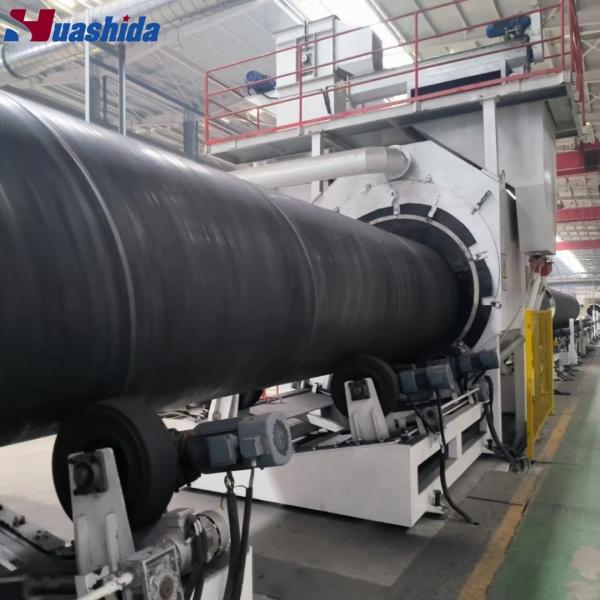

Rust Removal
Automated Large-Diameter Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray Foam

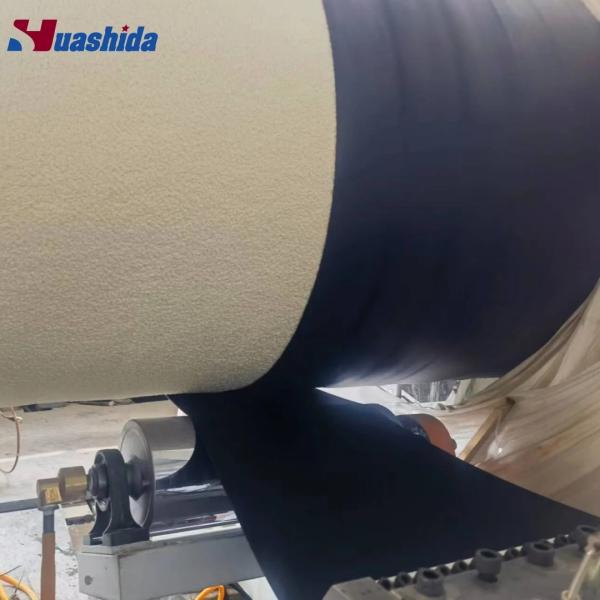

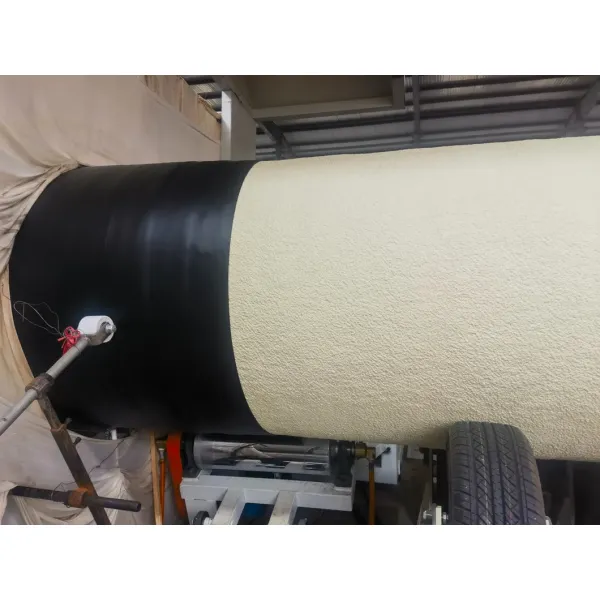

PE film jacket wrapping
Automated Large-Diameter Pre-Insulated Pipe Production Line with High-Pressure Air Type Polyurethane Spray Foam

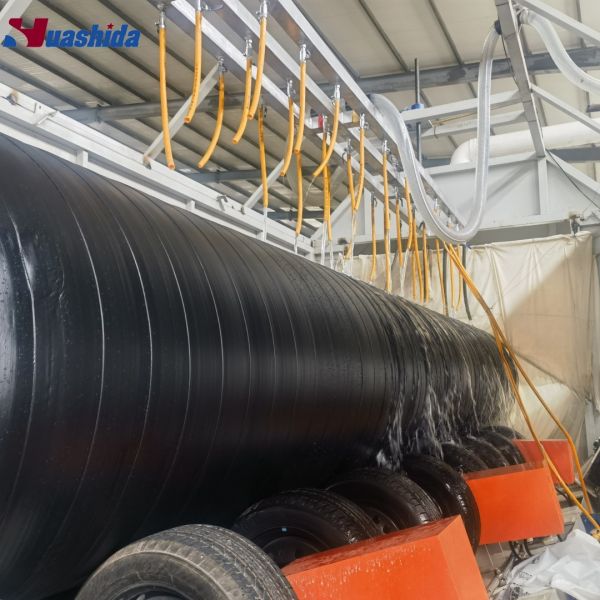

PE Jacket Water quenching
