Specifications
Brand Name :
Huashida
Model Number :
508-1620 mm
Certification :
CE, ISO 9001:2008
Place of Origin :
Qingdao, China
MOQ :
1
Price :
1000000$ - 1300000$
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30 Unit/Year
Delivery Time :
60-80 Days
Packaging Details :
1200*230*220
After-sales Service :
All Life
Warranty :
12 Months
Type :
Polyurethane Foam Machine
Raw Material :
HDPE
Principle :
High-Pressure Air Type
Automatic :
Automatic
Computerized :
Computerized
Transport Package :
Wooden Box
Specification :
Pipe Dia. 508-1620mm
Capability :
3-4 unit/H
Turnkey Project :
Yes
Application :
Hot Chiller Water/Oil /Chemical Material Pipeline
Pipe Structure :
Carrier Steel Pipe-Polyurethane Foam-HDPE Casing
Foaming Thickness :
30-100 mm
Delivery :
60-80 Days
Pipe Diameter :
508-1620mm
Description
508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line
Product Overview

Huashida's independently developed 508-1620mm PUR Spray & PE Wrapping Insulated Steel Pipe Production Line integrates three high-performance modules:

  • External steel pipe shot blasting & derusting system
  • Continuous polyurethane spray foaming line
  • HDPE strip wrapping & forming production line

Supported by multiple national utility patents and awarded Level 5 third-party certification, this line meets domestic leading industrial standards and is recognized as Shandong's First Set of Technical Equipment.

Featuring a fully automatic continuous PUR spraying process, the line delivers high efficiency, low material consumption, and energy-saving performance. It ensures uniform, high-quality polyurethane foam with a high closed-cell ratio, low water absorption, and stable three-layer composite molding.

The insulated pipes produced are eco-friendly, low-carbon, highly stable, and provide outstanding economic and social value for long-distance pipeline projects.

508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line
Production Process
  1. Steel pipe external shot blasting & derusting
  2. Medium-frequency induction preheating
  3. Uniform PUR spray foaming
  4. HDPE strip wrapping over a foam layer
  5. Finished pipe end trimming & finishing
Main Equipment Composition
No. Equipment Name
1 External wall shot blasting derusting machine
2 Medium-frequency induction heating furnace
3 Polyurethane spray foaming unit
4 Pipe rotator trolley
5 Single screw extruder and die head mould
6 Finished pipe end trimming machine
7 Pipe conveyors and racks
8 Electrical control system and PLC
Process Photos

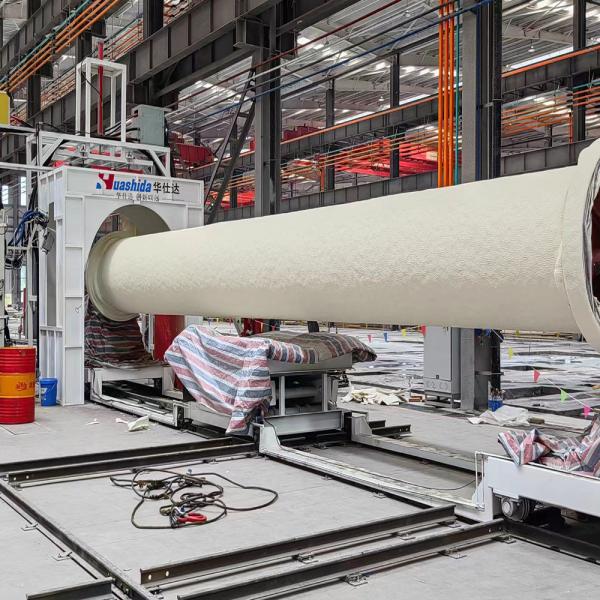

External Shot Blasting & PU Foaming
508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line

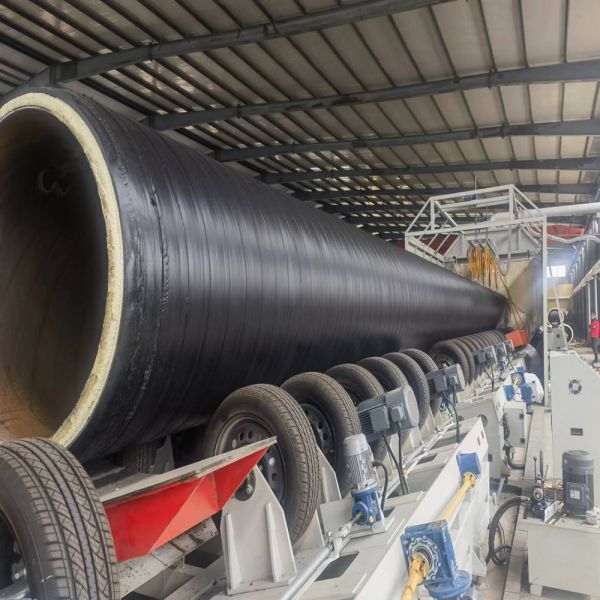

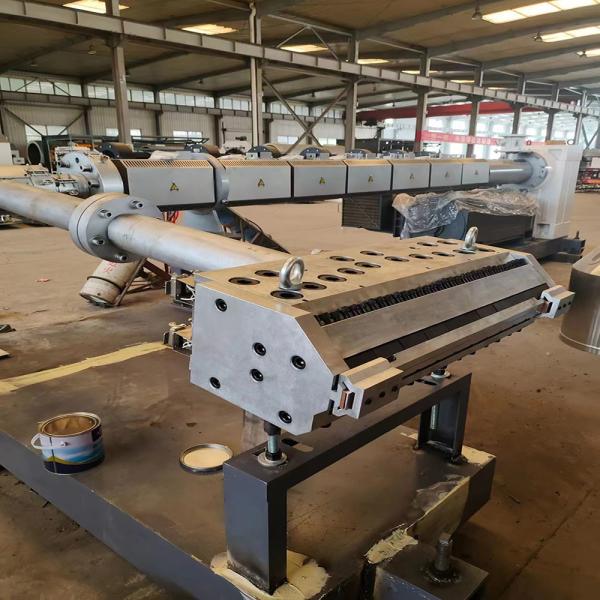

PU Foaming Curing & PE Film Extrusion
508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line
Conveyor & Pipe End Repair
508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line
Company Profile

Founded in 2003, Qingdao Huashida Machinery Co., Ltd. has over 20 years of professional manufacturing experience in pipeline equipment. Our core products include:

  • PUR spray & PE wrapping insulated pipe production lines
  • Polyurethane pre-insulated pipe manufacturing machines
  • 3PE anti-corrosion pipe production lines
  • Large-diameter underground pipeline equipment
  • Plastic pipe extrusion & fitting machinery

We maintain long-term technical cooperation with Beijing University of Chemical Technology, Qingdao University of Technology, and other national research institutions. Integrating global advanced technology and standards, Huashida has become one of the top 3 pipeline equipment manufacturers in China.

Our machines are exported to more than 60 countries and regions, including Saudi Arabia, Kazakhstan, Uzbekistan, the UAE, Turkey, and Russia. They are widely trusted by global EPC contractors, pipe mills, and energy enterprises.

508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line
International Exhibition
508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line
Customer Visit
508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line 508-1620mm PUR Foam Spray & PE Wrapping Insulated Steel Pipe Production Line

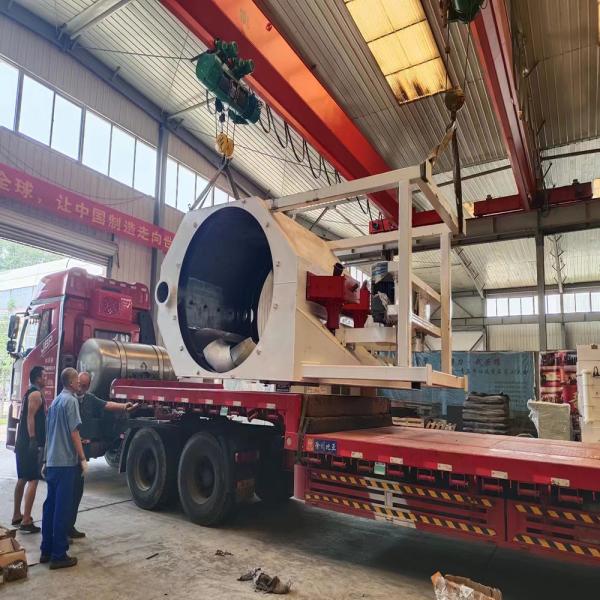

Packaging & Shipping
