Product Description

The HDPE Pipe Manufacturing Line by Huashida is a professional-grade solution engineered for the high-speed production of PE80 and PE100 grade pipes. Covering a wide diameter range from Ø16mm to Ø1600mm, this system is the industry standard for municipal water supply, urban natural gas transmission, and industrial energy pipeline networks.

By integrating advanced single-screw extrusion technology with intelligent PLC automation, this line ensures high-precision wall thickness, excellent durability, and consistent output for high-pressure applications.

Technical specification

Our PE Pipe Production Machinery comes in various configurations to meet diverse output requirements.

Model	Pipe Diameter (mm)	Main Extruder	Power (kW)	Output (kg/h)
SPEG-110	16 - 63	SJ75 X 33	180	350
SPEG-250	75 - 250	SJ90 X 33	280	500 - 1000
SPEG-630	160-315	SJ120 X 33	522	1000 - 1200
SPEG-630	160-355	SJ120 X 33	522	1000 - 1200
SPEG-630	200-450	SJ120 X 33	522	1000 - 1200
SPEG-630	160-630	SJ120 X 33	522	1000 - 1200
SPEG-630	355-630	SJ120 X 33	522	1000 - 1200
SPEG-1200	710 - 1200	SJ150 X 33	680	1000 - 1600
SPEG-2200	1000 - 1600	SJ150 X 33	1200	2000 - 2500

Production Line Details

Technological processes

Our automated workflow is designed for maximum uptime and minimal waste:

1. Feeding & Drying: Automated vacuum loading and moisture removal.

2. Extrusion Molding: High-efficiency plasticizing of PE granules.

3. Vacuum Calibration: Precision shaping and sizing.

4. Spray Cooling: Multi-stage cooling for structural integrity.

5. Hauling & Cutting: Synchronized traction and high-precision dust-free cutting.

6. Marking & Stacking: Automatic line marking and final discharge.

Main equipment list

-1set Vacuum loader
-1set Hopper dryer
-1 set High-efficiency single screw extruder
-1set 25/25 single screw extruder for mark line
-1set Vacuum calibration table
-2/4 set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Stacker

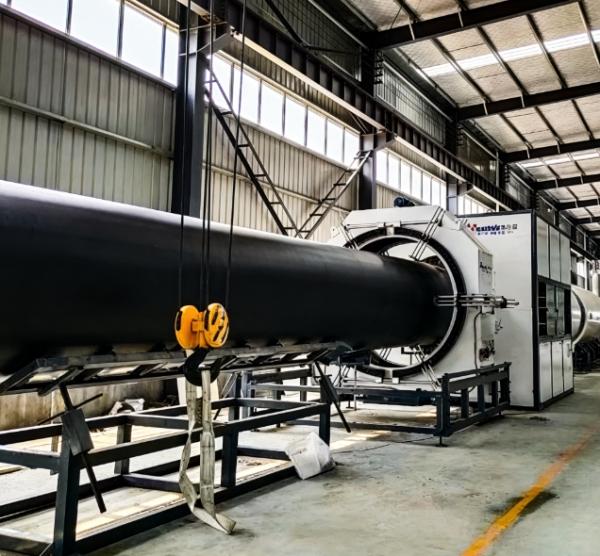

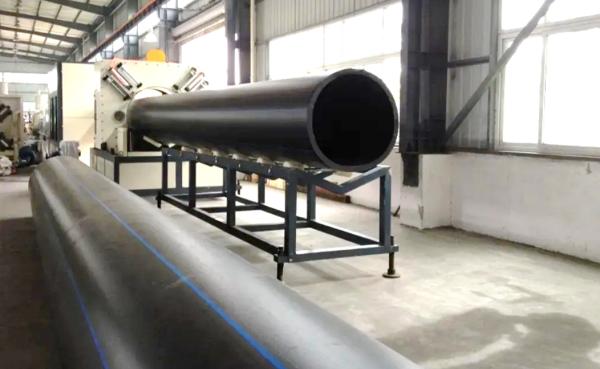

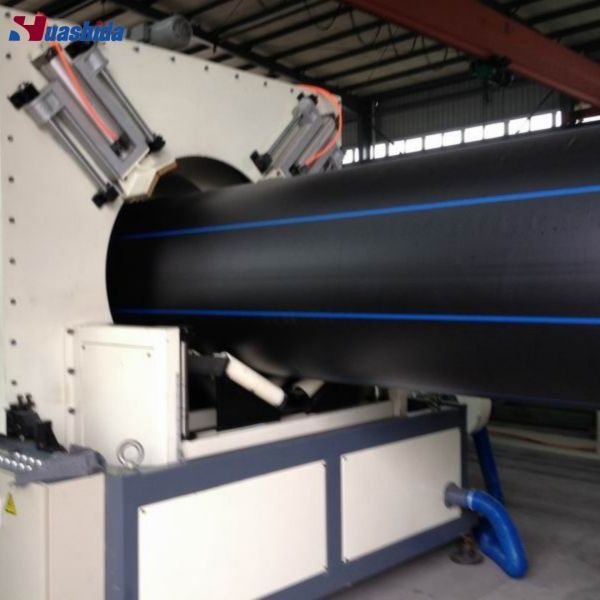

Detail photos

Feature

• High-Torque Extrusion: Powerful plasticizing capacity ensures material stability for PE100 resins.

• Precision Die Head: Helical design provides low-melt temperature processing and excellent mixing for superior pipe strength.

• Intelligent Calibration: Advanced water film lubrication and ring cooling systems ensure perfect pipe roundness and diameter accuracy.

• Smart Automation: Fully integrated PLC touch-screen control for real-time parameter monitoring and synchronized line operation.

• Cost-Efficient Co-extrusion: Multi-layer technology options allow for recycled material cores or color-coded marking lines to reduce production costs.

Our Advantages

• Turnkey Solutions: We provide end-to-end services including plant design, installation, commissioning, and staff training.

• Global Authority: Over 389 successful projects deployed worldwide across Russia, Turkey, Iran, and Kazakhstan.

• Engineering Depth: Backed by 21 years of expertise and a premier Plastic Machinery R&D Center in China.

• Certified Quality: Equipment manufactured to international standards for high-pressure gas and water applications.



Company Profile

Founded in 2003, Huashida is a leading manufacturer specializing in anti-corrosion coating lines and plastic pipe extrusion technology. Our 21-year legacy is built on providing patented, high-performance equipment for the world's most demanding infrastructure projects.

Core Product Range:

• 3LPE/FBE Steel Pipe Coating Lines

• Pre-insulated Pipe Production Systems (Rigid & Flexible)

• Large Diameter HDPE Jacket Pipe Lines (up to 2000mm)

• Geomembrane and Plastic Sheet Production Equipment
