Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Specifications
Brand Name :
HUASHIDA
Model Number :
110-2200mm
Certification :
CE, ISO9001:2008
Place of Origin :
QINGDAO,CHINA
MOQ :
1
Price :
US$200,000.00-1,000,000.00
Payment Terms :
L/C,D/P,T/T
Supply Ability :
30 Sets/Year
Delivery Time :
60days
Packaging Details :
Standard Package
Raw Material :
pe
Screw No. :
Single-screw
Used material :
ISO, POLY ,PE
cutting machine :
Planetary Cutter
Description
Vacuum Calibrating HDPE insulation pipe production line

Product Description

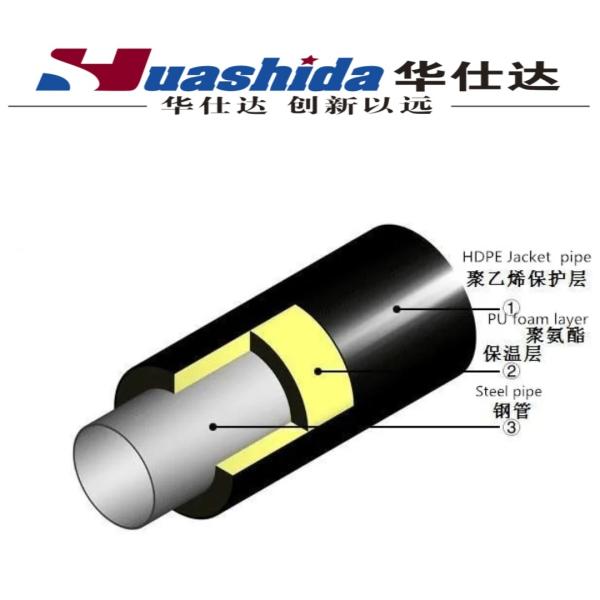

The vacuum calibration polyurethane insulation pipe is a kind of high efficiency pre insulated pipe. It is mainly composed of working steel pipe, PU insulation layer, plastic outer protective pipe and other parts.
HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-insulated Pipe according to international standard.
HDPE jacket pipe are produced by vacuum calibration method, with smooth inner and outer walls, long service life, good Anticorrosion and heat preservation performance, and excellent mechanical properties.

Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary CutterVacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter

Product Parameters

Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 45m

Production line composition:

-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder
-1set Vacuum calibration table
-1set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Discharging Frame
-1set PLC (Computer control system)
Detailed Photos

Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter


Our Advantages

Features of the HDPE pipe production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.once forming. No need trim edge.

The advantages of our company:
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
