PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line
PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line
PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line
PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line
PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line
PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line
PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line
PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line
Specifications
Brand Name :
Huashida
Certification :
CE, ISO9001:2008, QS, GMP
Place of Origin :
China
MOQ :
1
Price :
$100000
Payment Terms :
T/T,Western Union
Supply Ability :
100set a year
Customized :
Customized
Transport Package :
Standard Package
Specification :
PERT-50/200MM
Condition :
New
Screw :
Single Screw
Pipe Diameter Range :
50mm-200mm
Cutting Device :
Planetary cutter
Control System :
Siemens PLC
Pipe Size :
50mm2000mm
Description
PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line – PU Foam Insulation

These flexible polymer pre-insulated pipes represent a masterful engineering achievement, combining three essential layers into a single high-performance system:

  1. Inner pressure pipe – ensures reliable fluid transport
  2. Thermal insulation layer – minimizes energy loss
  3. Outer polyethylene casing – provides robust protection against external elements
Applications

The pipes are widely used in:

  • District heating and cooling networks
  • Industrial process pipelines
  • Pre-insulated systems for hot and cold water supply
Installation Benefits

Their exceptional design makes them ideal for both above-ground and direct burial installations, with particular advantages in urban infrastructure projects where space is limited and long-term reliability is essential.

PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line

The production line for flexible pre-insulated pipes is a sophisticated system comprising the following meticulously engineered components:

1 Production line for inner pressure pipe (PERT, PEX)
2 Inner pipe unwinding device
3 Pipe feeding device
4 Conveyor
5 Pipe centering device
6 Preheating and temperature control
7 Film feeding device
8 High-precision foaming machine

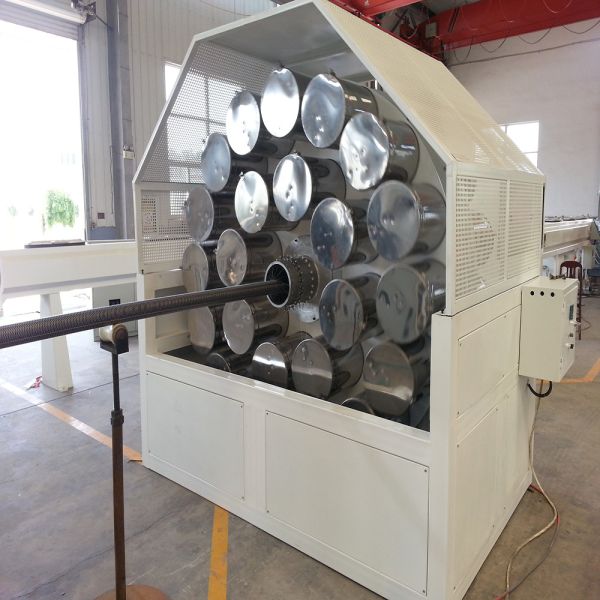

9 Corrugator / Corrugating machine with temperature control
10 Extruder for casing pipe and water cooling
11 Pull-off device
12 Winding machine
13 Control system
Detailed Photos

PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line

Our team

PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line

Delivery

PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line

Exhibition

PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line

Certifications

PERT/PEX Corrugated Flexible Pre-Insulated Pipe Production Line
