Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Specifications
Brand Name :
Huashida
Model Number :
110-2000mm
Certification :
CE, Rohs，TUV
Place of Origin :
Qingdao ，China
MOQ :
1
Price :
US$100,000.00-3,000,000.00 1 Set (MOQ)
Payment Terms :
T/T,L/C
Supply Ability :
50 Sets/Year
Delivery Time :
60days
Packaging Details :
Container loading，sea transportation
Insulation Material :
Polyurethane Foam
Surface Treatment Grade :
≥SA2.5
Product Material :
HDPE
Calibration Method :
Vacuum And Water Spraying Cooling
Warrantyperiod :
12 months
Cutting Method :
Planeatry Cutting
Transport Package :
Standard Package
Substrate :
Steel
Automatic Grade :
Automatic
Description
Polyurethane Spray Coating Equipment Steel Pipeline Anti-Corrosion & Thermal Insulation

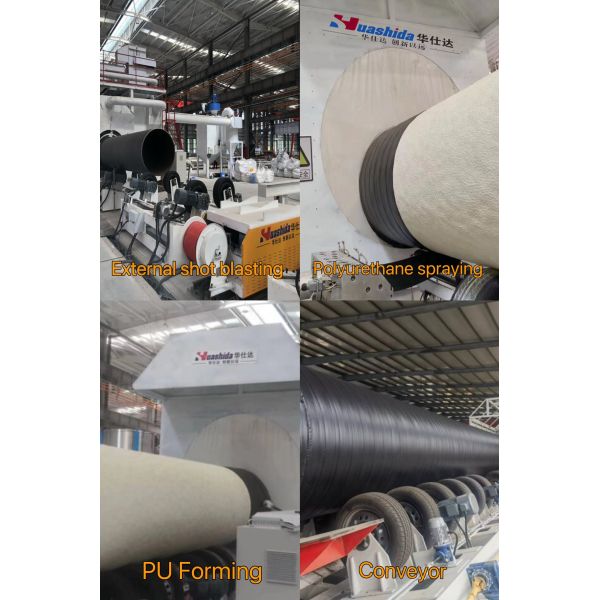

The thermal winding pre-insulated pipe production line independently developed by Huashida consists of three integrated sections:
  • External shot blasting & rust removal line
  • Polyurethane (PU) spraying line
  • PE winding line
This line holds multiple national patents. According to a third-party standardized evaluation report, its technology has reached an advanced level of 5, ranking at the domestic leading level. It has also been recognized as a "First Set of Technical Equipment" in Shandong Province.
The line adopts a continuous spraying production process featuring:
  • High automation
  • Fast production efficiency
  • Raw material savings
  • Improved foaming and closed-cell rate
  • Lower water absorption rate
  • Trinity (three-in-one) molding for more reliable performance
The products are low-carbon, environmentally friendly, and offer higher economic and social benefits.
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Product Parameters
Style PE-110/600 PE-365/760 PE-655/1380 PE-960/1680 PE-1054/1860
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ365-760mm Φ655-1380mm Φ960-1680mm Φ1054-1860mm
Capacity 250-350kg/h 400-500kg/h 700-900kg/h 1000-1200kg/h 1000-1250kg/h
Installed power 160kw 240kw 480kw 580kw 580kw
Length 26m 32m 36m 40m 45m
Our Advantages
Huashida is a company specializing in the R&D, design, production, and sales of insulated pipeline equipment series products. It boasts not only a robust scientific research team but also a highly capable manufacturing team. The insulated pipeline equipment series includes 3PE steel pipe anti-corrosion equipment, spray-coated winding pipe equipment, steel pipe internal/external epoxy anti-corrosion equipment, insulated pipe equipment, and insulated pipe foaming machine platform equipment, among others.
  • Small dimension
  • High degree of automation, can be operated by one person, saving labor costs
  • Long service life
  • High-efficiency extruder gives larger output and stable performance
  • Pipe wall is average and smooth
  • No waste of raw material
  • Once forming. No need to trim the edge
Company Profile
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Qingdao Huashida Machinery Co., Ltd was established in 2003 and has focused on plastic pipe extruder production line and joints of plastic pipes and 2PE 3PE pipes machinery for over 16 years. We are a private high-tech enterprise integrated by R&D, manufacturing, selling, service and trading.
We are always concentrating on research and development of plastic extrusion equipment, tightly cooperating with Tsinghua University, Beijing University of Chemical Technology, South China University of Technology and some other colleges and scientific research institutions. Meanwhile, by absorbing advanced technology home and abroad, we have been one of the top manufacturers of plastic extrusion machines in China, especially of PE insulation jacket pipe extrusion line, PE PP sheet extrusion line, and PE hollow wall spiral pipe production line.
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Customer Cases
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
Certifications
Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline Automated Polyurethane Spray Coating Equipment for Corrosion Resistant and Thermal Insulation Steel Pipeline
