Specifications
Brand Name :
HUASHIDA
Model Number :
Plastic Pipe
Certification :
CE
Place of Origin :
Qingdao, China
MOQ :
1
Price :
US$200,000.00-1,000,000.00
Payment Terms :
L/C,D/A,T/T
Supply Ability :
100 Unit/Year
Delivery Time :
60DAYS
Packaging Details :
Standard Package
Screw :
Single-Screw
Pipe Diameter :
110-2200mm or Customized
Raw Material :
HDPE
Calibration Method :
Vacuum Calibration and Water Spraying Cooling
Description

PU Foam Insulated Pipe Production Line with HDPE Casing for Underground Pipelines

Product Description

HDPE PU Foam Thermal Pre-insulated thin wall Pipe Extrusion Line is a high efficiency equipment with high speed and energy saving which is developed by Qingdao Huashida Machinery Co.Ltd., PU foam Pre-insulated Pipe Extrusion line is easy to operate with automatic control system and has long service life.

1. Pipe colour: Black ,Yellow (The color can be customized)
2. Mian Extruder : SJ-75/33,SJ-90/33,SJ-120/33,SJ-150/33
3. Materials for production: polyethylene,ie HDPE pellets
4.It is mainly composed of working steel pipe, PU insulation layer, plastic outer protective pipe and other parts.
5.According to customer demand for the production of different specifications products.

Features:
Small space required;high degree of automation, can be operated by 1-2 person;long service life.
High-efficiency extruder gives larger output, stable performance.
Pipe wall is uniform and smooth;no waste of raw material
Once forming. No need trim edge;Dust free cutting

Single-Screw Extruder PU Foam Insulated Pipe Production Line with 110-2200mm HDPE Casing and Vacuum Calibration

Product Parameters

Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 45m

Working Conditions
Electric source 3 380V(-10%,+5%)50Hz
Total power ~160kW
Cooling water ≤20ºC,≥0.3Mpa , 26~30 m3/h
Compressed air 0.4m3/min ,>0.5MPa
Dimension 24*3*3m
Material
 HDPE granules

Performance and advantages

HUASHIDA insulation pipe production line Equipment details

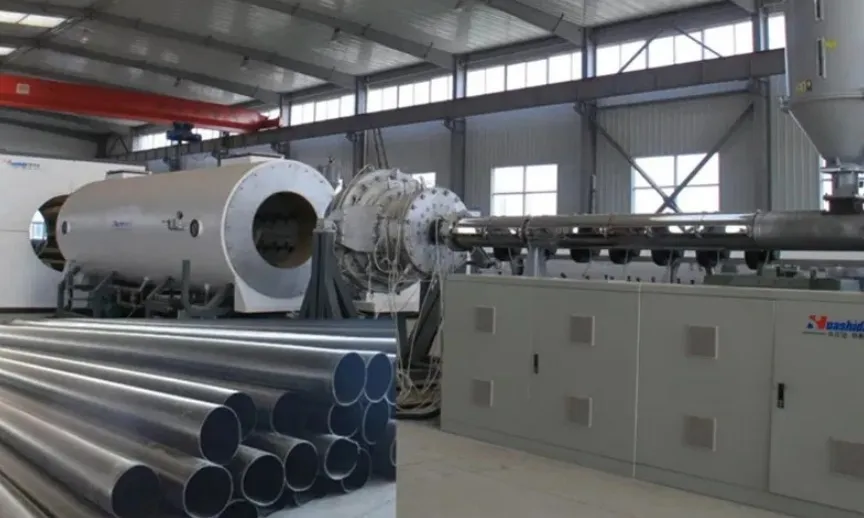

1. Main machine- High-efficiency single screw extruder
The screw is with barrier & mixing head; the barrel is a new model with slotting (channel). Both guarantee the good jellification, large output and stable performance of the extruder.
Single-Screw Extruder PU Foam Insulated Pipe Production Line with 110-2200mm HDPE Casing and Vacuum Calibration

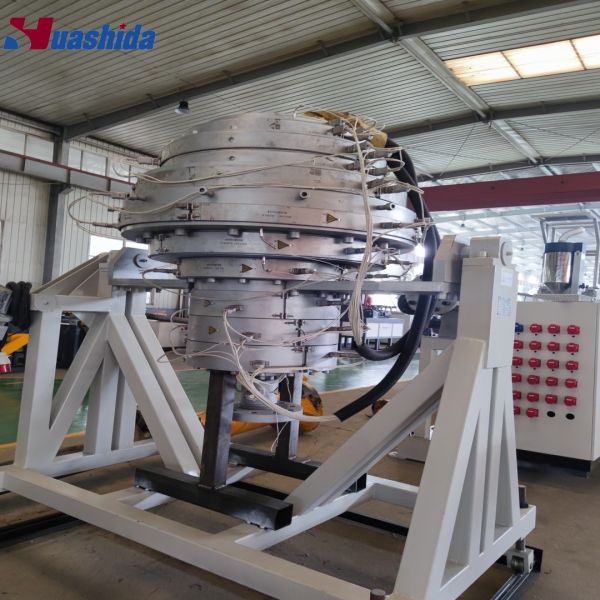

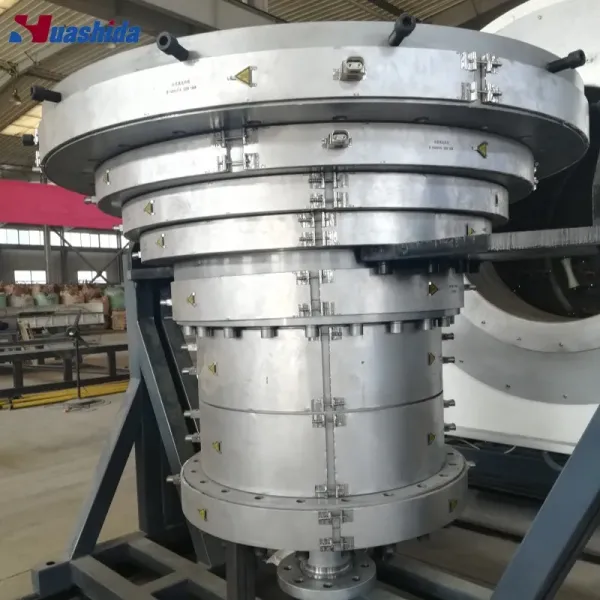

2.Die Head
Single-Screw Extruder PU Foam Insulated Pipe Production Line with 110-2200mm HDPE Casing and Vacuum Calibration

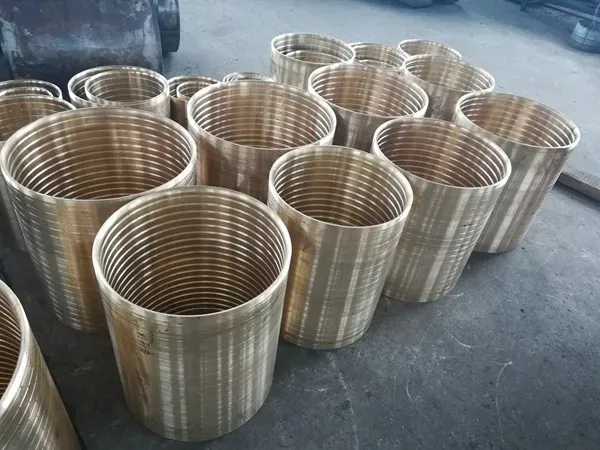

3.Sizing sleeve

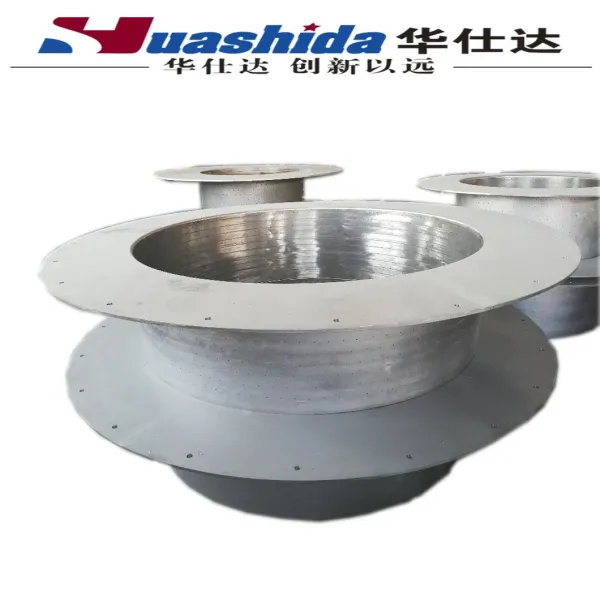

Single-Screw Extruder PU Foam Insulated Pipe Production Line with 110-2200mm HDPE Casing and Vacuum Calibration4.Calibrators

Single-Screw Extruder PU Foam Insulated Pipe Production Line with 110-2200mm HDPE Casing and Vacuum Calibration

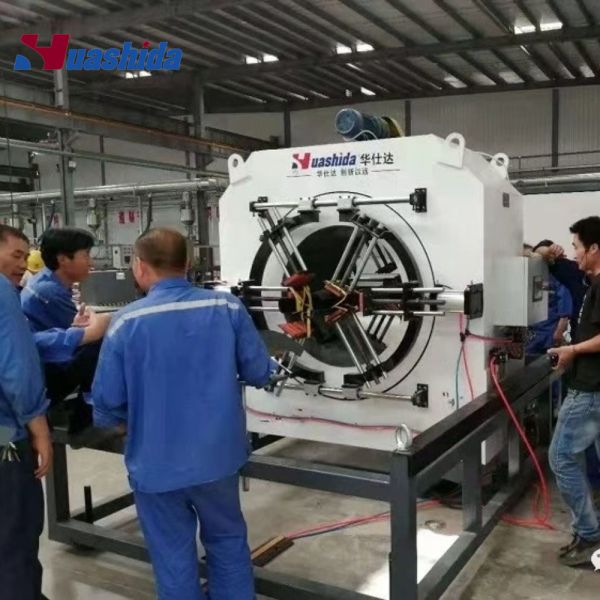

5.Chipless cutting
Single-Screw Extruder PU Foam Insulated Pipe Production Line with 110-2200mm HDPE Casing and Vacuum Calibration

6. Electrical system
-ABB frequency converter or EUROTHERM speed controller
-Japan RKC temperature controller
- AC contactors

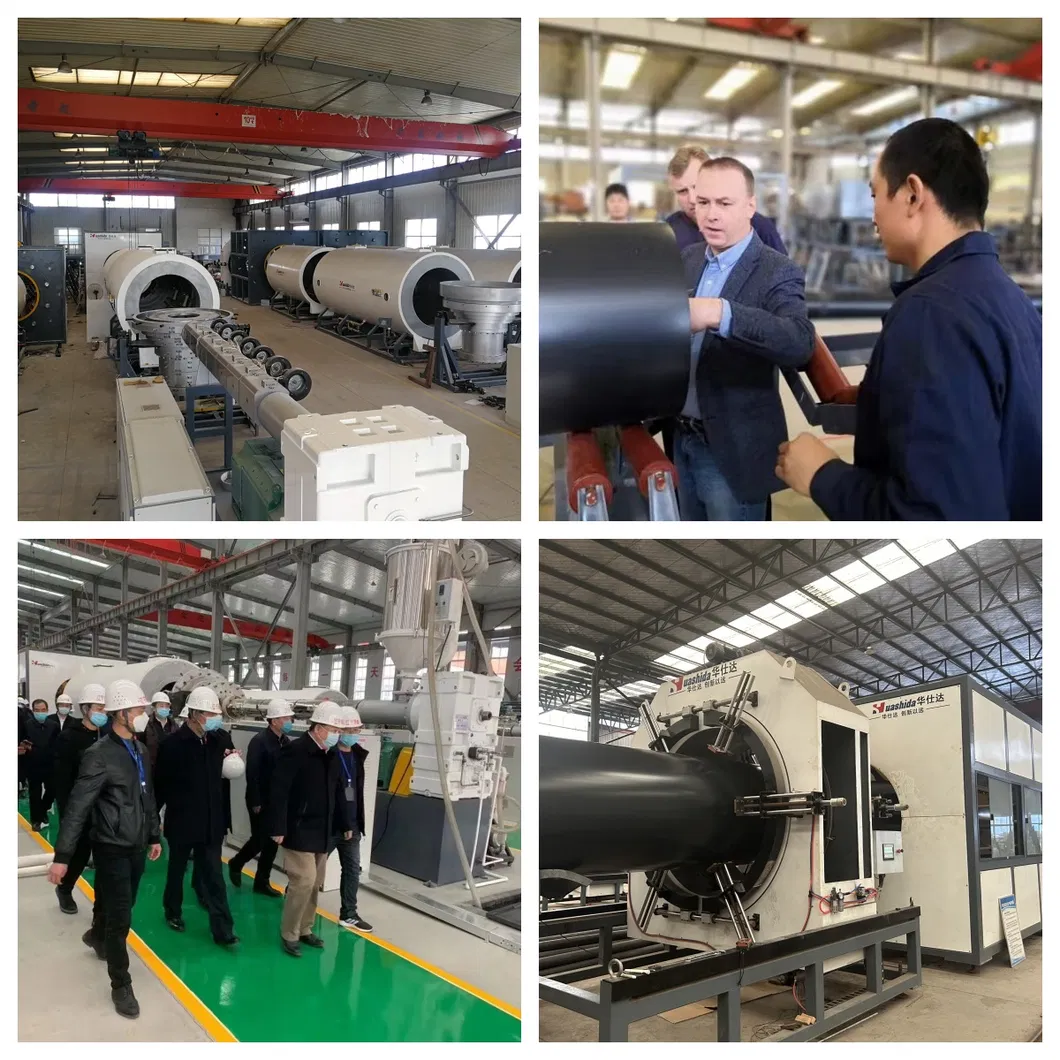

Overseas customers

Single-Screw Extruder PU Foam Insulated Pipe Production Line with 110-2200mm HDPE Casing and Vacuum Calibration

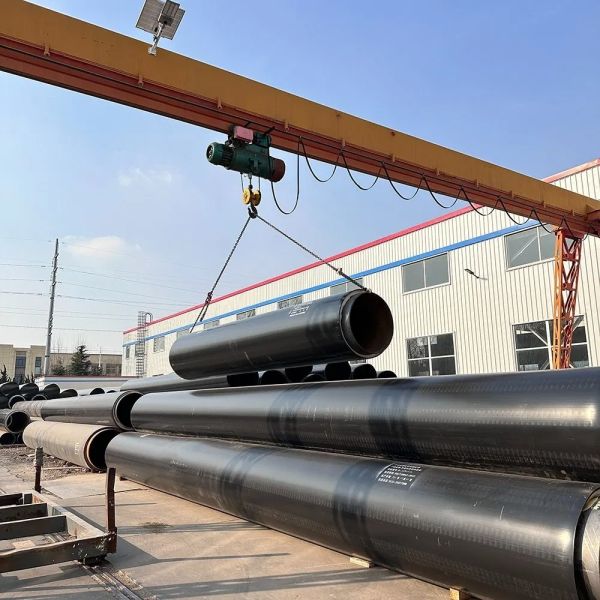

Factory overview
