The external 3PE anti-corrosion system consists of a three-layer structure: an epoxy powder base for corrosion resistance, a copolymer adhesive for interlayer adhesion, and an outer polyethylene layer for mechanical protection. The inner wall is coated with liquid epoxy to prevent corrosion from transported media. This comprehensive protection enhances service life and is widely used in oil, gas, and water
pipeline engineering.



The external 3PE (Three-layer Polyethylene) anti-corrosion system consists of a three-layer composite structure: a fusion-bonded epoxy (FBE) powder primer provides fundamental corrosion resistance, an intermediate copolymer adhesive layer ensures high interlayer bonding strength, and an outer polyethylene (PE) layer provides excellent mechanical protection. The inner wall is coated with liquid epoxy, forming a dense barrier that prevents corrosion erosion from transported media (oil, gas, water). This combined inner-and-outer protection scheme offers synergistic, durable, and long-lasting performance, significantly extending the service life of steel pipes, and is widely applied in pipeline projects such as oil/gas transportation and municipal water supply and drainage.

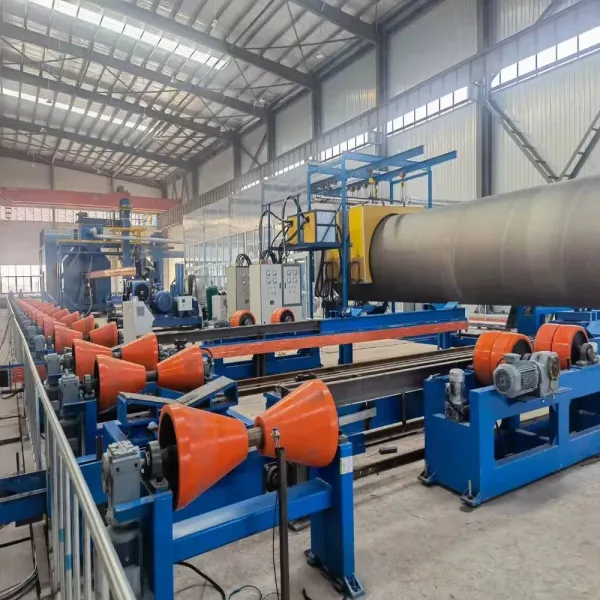

Huashida's 3PE coating line is engineered to maximize your productivity while minimizing space requirements. With a compact layout and optimized process flow, it delivers outstanding efficiency in a smaller footprint.

Achieving up to 800 m² per hour, the line operates at 2 to 3 times the efficiency of conventional systems, helping you boost output and reduce costs.

Powered by proven technology and a stable formulation, it ensures one-time successful commissioning with zero defective pipes, delivering consistent, high-quality production from day one.

Compliant with global standards including EN, DIN, and NORSOK, it is ready for demanding international pipeline projects. Meanwhile, its energy-efficient and eco-friendly design reduces consumption and enhances material recycling.

From design and manufacturing to installation, commissioning, and training, Huashida offers a true one-stop solution, backed by reliable after-sales support for long-term, stable operation.

The anti-corrosion coating processing line includes:
-steel pipe transmission system
-Internal and external shot blasting system
-dust collection system
-pipe heating system
-electrostatic spraying system
-PE coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system

Upload pipes→pipes screw conveyor→inernal rust removal →external rust removal→ intermediate frequency heating→Internal Epoxy powder coating→External Epoxy powder coating→ outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes

1. Pipe diameter: 159-4200mm
2. Processing capacity: ≥250m²/h
3. Cleaning level: ≥Sa2.5
4. Materials for production: epoxy powder, adhesive, polyethylene

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
