8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets
8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets
8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets
8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets
Specifications
Brand Name :
huashida
Certification :
CE, ISO9001:2008, QS, ISO
Place of Origin :
qingdao,China
MOQ :
1
Price :
US$200,000.00 - 250,000.00
Payment Terms :
D/P,D/A,T/T
Supply Ability :
30 sets/year
Delivery Time :
60 days
Screw :
Single-Screw
Computerized :
Computerized
Customized :
Customized
Specification :
sj120/33, sj200/33
Automation :
Automatic
Product Type :
Extrusion Molding Machine
Transport Package :
Standard Package
Screw Channel Structure :
Deep Screw
Film Thickness :
0.5-2.0mm
Exhaust :
Don't Exhaust
Description
Product Description

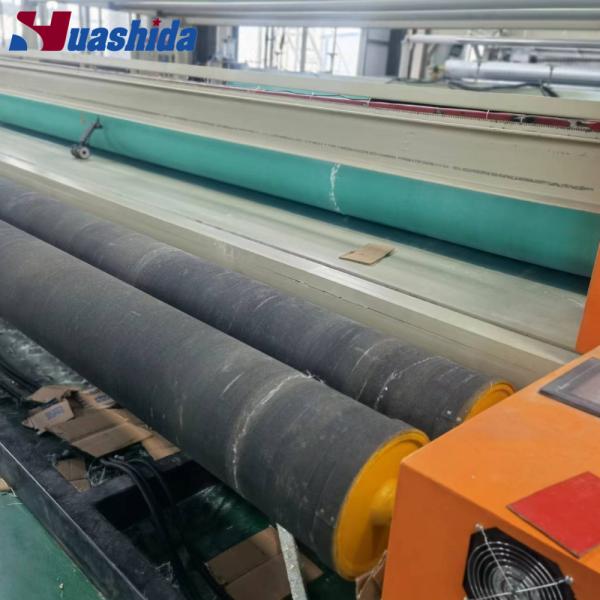

Geo-Membrane Film Extrusion Line
The Geo-Membrane Film Extrusion Line is an advanced production line specifically designed for manufacturing high-quality waterproof membranes. Utilizing a range of high polymer materials such as PE, PP, PET, PVC, and EVA, this extrusion line can produce films with a maximum width of 5000 mm and thicknesses ranging from 0.1 mm to 30 mm.
Features


8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets

Product Specifications

This extrusion line is ideal for various engineering projects, √ including:
√ Landfill sites
√ Wastewater treatment plants
√ Subway projects
√ Tunnels
√ Flood control systems
√ Artificial lakes
√ Industrial waterproofing

Our Advantages

Comprehensive Specifications: Full range of widths and thicknesses available.
High Flexibility and Strength: Exceptional durability and resilience.
Excellent Environmental Stress Crack Resistance: Adaptable to various environmental conditions.
Wide Temperature Range: Suitable for diverse applications.
Easy Installation: Simplified construction processes.
Versatile Use: Perfect for underground projects and complex terrains.

8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets

Technological processes
Extruder
Film Width
Film Thickness
Capacity
Total Power
Dimension(m)
SJ120/33
3000mm
0.5-2.0mm
500Kg/h
250Kw
20×4×2.5
SJ200/33
8000mm
0.8-3.0mm
1200Kg/h
550Kw
22×10×2.5


Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
