Pre-insulated Pipe Outside casing extrusion line

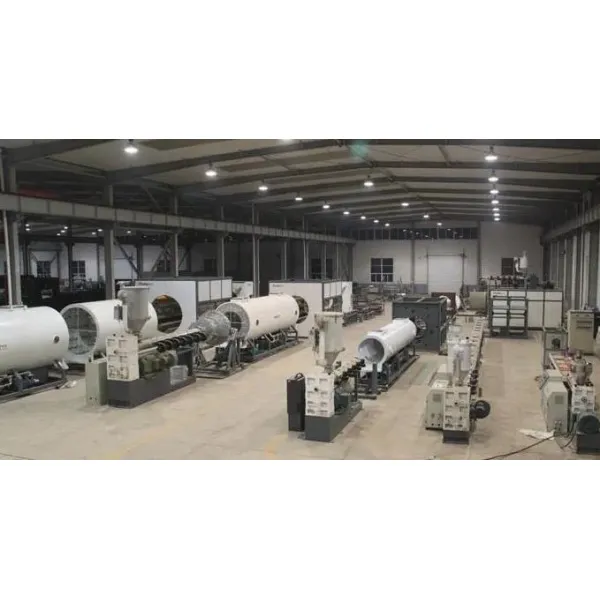

pre-insulated pipe outside casing extrusion line mainly Composed by extrusion, vacuum calibrating, cooling, pulling, cutting, stacker.

1set Auto Vacuum feeder :

1set Hopper dryer
1set Efficient single screw extruder
1set Mould

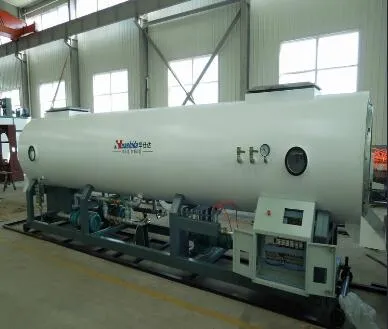

1set Vacuum calibration table
1set Hauling machine
1set Cutting machine
1set Stacker

Pipe Usage of Thermal insulating jacket pipe production line:
HDPE jacket pipe is outcase of thermal insulating pipe, which is widely used in central heating system, oil, nature gas and other industrial area.

Advantage of Thermal insulating jacket pipe production line:

(1)the Thermal insulating jacket pipe production line adopts Solid-liquid phase separation screw, can improve the plasticization rate and plasticizing production.
(2)The barrel is slotted to ensure high speed output.
(3)Barrel cooling water jacket, to speed up the cooling rate, improve the quality of the product

Control system of Thermal insulating jacket pipe production line:
The complete line can be controlled by PLC, PLC is responsible for the unified regulation of production line heating and power. PLC has a good human-machine interface, all technical parameters can be set and indicated by touching screen. Our PLC import from Germany, it has advanced technical and stable performance.

Technical Parameters 0f Thermal insulating jacket pipe production line:

Machinery warranty time is 12 months from the date of Bill of Lading. electronic parts 6 months.
Training how to install the machine and how to operate the machine.
Engineers available to service machinery overseas at customer cost.

Qingdao Huashida Machinery Co., Ltd is a professional plastic extrusion production line manufacture since 2003. The factory covers 34000 square meters. Our products such as HDPE pressure pipe for gas or water transmission, structural wall pipe extrusion line, corrugated pipe extrusion line . The products have been exported to Middle East, Russia, Africa. Turkey, Korea.Our factory locates in Cheng yang Industrial area, Qingdao ,Shandong Province. we have been approved and got certificate ISO90001:2008 by SGS. All the customers are welcome to visit the factory.

Our products mainly include:
Single Screw Extruder & Twins Conical Extruder
Vacuum Calibrating pre-insulated pipe outside HDPE casing Extrusion line
20-630mm Single/multi layer HDPE Pipe Extrusion Line
200-3000mm HDPE Spiral Corrugated Pipe Extrusion Line
Fiberglass reinforced PP-R Pipe Co-extrusion line
Plastic Sheet/ Plate Single/multi layer Extrusion Line
PVC Fiber & Steel Wire Reinforced Hose Line
Hand Extruder / Electro-fusion Welder
Heat Shrinkable sleeves (Normal style & Fiber Reinforced style)
Electro-fusion Girth Welding joint closure & Electro-fusion welded belt
