Specifications
Brand Name :
huashida
Model Number :
110-2200mm
Certification :
CE, ISO9001:2008
Place of Origin :
Qingdao,china
MOQ :
1
Price :
US$200,000.00 - 1,000,000.00
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
30 Sets/Year
Delivery Time :
60days
Packaging Details :
standard packaged
Screw No. :
Single-screw
Raw Material :
PE
Application :
Producing Pre-Insulated Pipe Jacket
HDPE Jacket Pipe Color :
Can Be Customized
Description
HDPE Outer Casing Jacket Pipe PU Foam Preinsulated Pipe Cover Extrusion line

Product Description
Pre-Insulated HDPE Plastic Jacket Pipe Production Line:

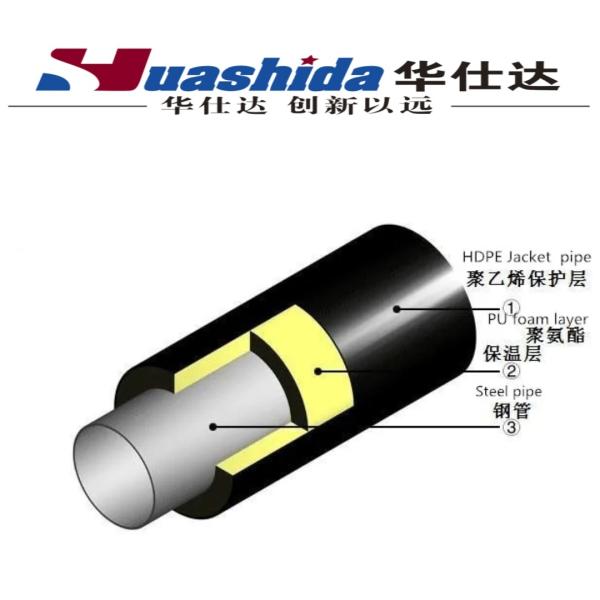

HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-Insulated Pipe according to international standard.
HDPE jacket pipes are produced by vacuum calibration method, with smooth inner and outer walls, a long service life, good anti-corrosion and heat preservation performance, and excellent mechanical properties.
HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls
HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls

Product Parameters

Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 48m

Production line composition:

-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder
-1set Vacuum calibration table
-1set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Discharging Frame
-1set PLC

Technical Highlights:
Single-screw extruder Precision temperature control system ensures consistent material fusion
Proprietary single-screw extruder optimized for polyethylene (PE) materials
Vacuum Calibration Patented vacuum calibration system replaces traditional internal pressure methods
Smart Automation Fully integrated PLC control system
Real-time process monitoring
Production Capabilities Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent)


Our Advantages

Features of the HDPE sleeve production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding
HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe WallsHDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe WallsHDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls
HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html


HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
