High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
Specifications
Brand Name :
HUASHIDA
Model Number :
500-1600MM
Certification :
CE, ISO9001:2008
Place of Origin :
QINGDAO,CHINA
MOQ :
1
Price :
US$1,000,000.00 - 1,300,000.00
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
30 Sets/Year
Delivery Time :
60DAYS
Packaging Details :
Wodden Box
Foaming Machine :
High-Pressure Foaming Machine
Foaming Thickness :
30-100mm
Pipe Structure :
Carrier Steel Pipe-Polyurethane Foam-HDPE Casing
Type :
Polyurethane Foam Machine
Description

PU Sprayed Foaming HDPE Winding Preinsulation Pipe Manufacturing System

Product Description

Pipe diameter range: 500-1600MM
Polyurethane spraying polyethylene wrapping pre-insulated pipe production line is used for the production of polyurethane prefabricated direct buried thermal insulating pipes, which are widely used in the field of heating, cooling and crude oil transportation.


Main features of the PU Spray insulation pipe:
1. The density of polyurethane is uniform and controllable.
2. Polyurethane rigid foam has no empty spaces.
3. The surface of polyurethane foam is rough, the shear strength (friction) to the polyethylene outer casing is greater than 200Kpa.
4. The thickness of the polyurethane insulation layer and the thickness of the polyethylene outer casing can be adjusted according to the design.
5. The production has a high degree of automation.

High-Pressure PU Foam HDPE Winding Pipe Manufacturing System


Product Parameters

The spraying and winding production process ensures the uniformity of the density of the insulation layer, improves product quality, and reduces production costs.
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
PUF spray PE winding preinsulated pipe production line consists of the following parts:
1) Steel pipe outwall shot blasting line
2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipment

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:
No. name
1 External wall Shot blasting rust removel machine
2 Medium-frequency induction heating furnace
3 Polyurethane spray foaming unit
4 pipe rotator trolley
5 Single screw extruder and diehead mould
6 Finished pipe ends trimming machine
7 pipe Conveyers and racks
8 Electrical system and PLC

Detailed Photos

Production line equipment Photos show
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
Rust Removal
First, the surface of the steel pipe is derusted, usually by shot blasting or sand blasting, to ensure that the surface is clean and free of rust, oil and other impurities. Preheating: The cleaned steel pipe is preheated so that the subsequent polyurethane foam can better adhere to the steel pipe surface.

High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
High-Pressure PU Foam HDPE Winding Pipe Manufacturing System

Polyurethane spray molding line

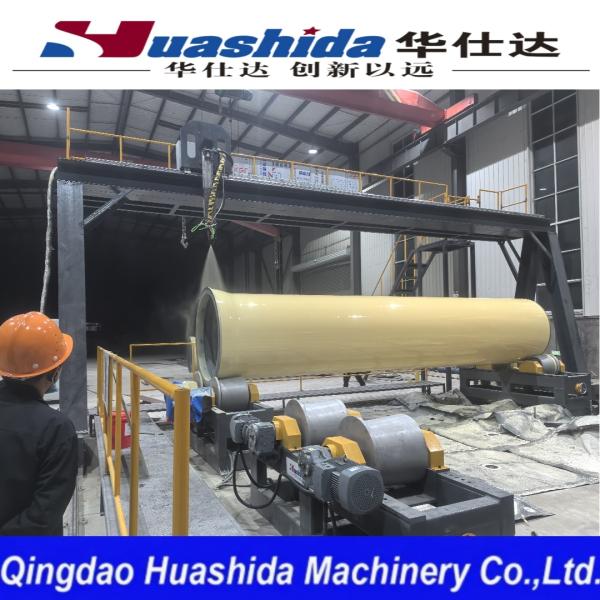

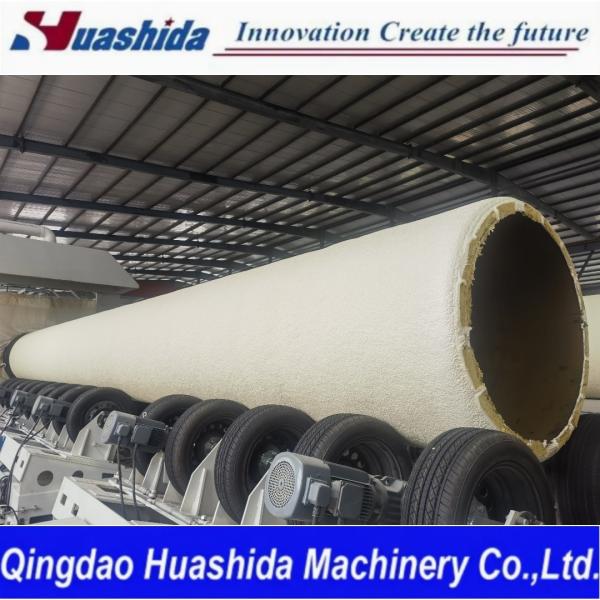

The polyurethane raw materials (isocyanate and polyol) are mixed in a high-pressure foaming machine and evenly sprayed onto the surface of the preheated steel pipe. The polyurethane raw materials rapidly foam on the surface of the steel pipe, forming an insulating layer.




Polyethylene sheet extruding winding line

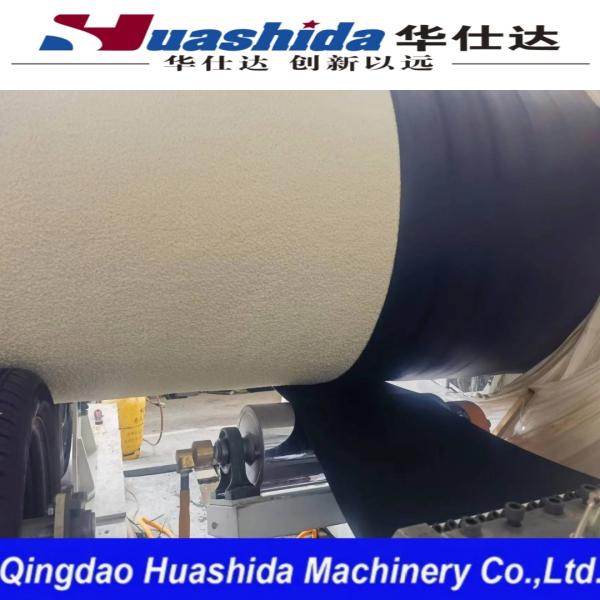

Polyethylene (PE) is wrapped around the polyurethane insulation layer to form an outer sheath. Cooling and shaping: The wrapped pipe is cooled and shaped to ensure that the outer sheath and insulation layer are tightly bonded to form a stable structure.

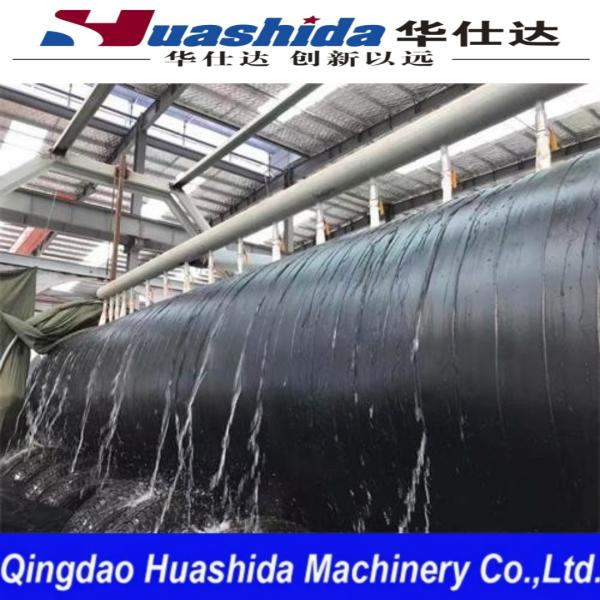

PE Jacket Water quenching

High-Pressure PU Foam HDPE Winding Pipe Manufacturing System

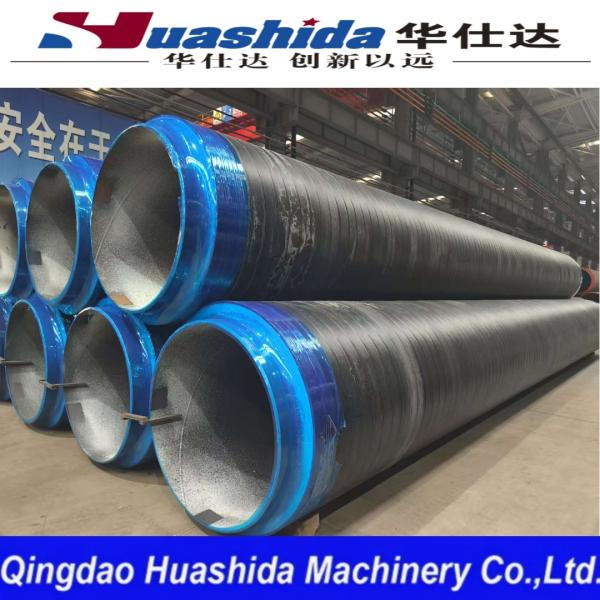

Wrapped finished pipe

High-Pressure PU Foam HDPE Winding Pipe Manufacturing System
Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
