Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Specifications
Brand Name :
huashida
Model Number :
PE Board
Certification :
CE, ISO9001:2008
Place of Origin :
qingdao,china
MOQ :
1
Price :
US$48,000.00
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
50 Units/Month
Delivery Time :
60days
Packaging Details :
Standard Package
Board Layers :
Single Layer, Double Layer, Multi-Layer
Screw No. :
Multi-screw
Width :
800mm-1600mm
Thickness :
0.1-30m
Applicable Materials :
PP/PE/PS/HIPS/ABS/PVC
Description

Electro Fusion Sleeve / Belt / Tape Girth Welding Joint Closure Production Line Thickness 20mm

Product Description

This line major used on electro-fusion girth welding joint closure manufacture of HDPE structured wall spiral pipe and pre-insulated pipe(PU foam pipe with HDPE outside casing). Color, specification and thickness can all be customized.

Thickness Range: 5-30mm.
Width Options: 800 mm, 1200 mm, 1500 mm, 2000 mm, 3000 mm.
Applicable materials:PP/PE/PS/HIPS/ABS/PVC

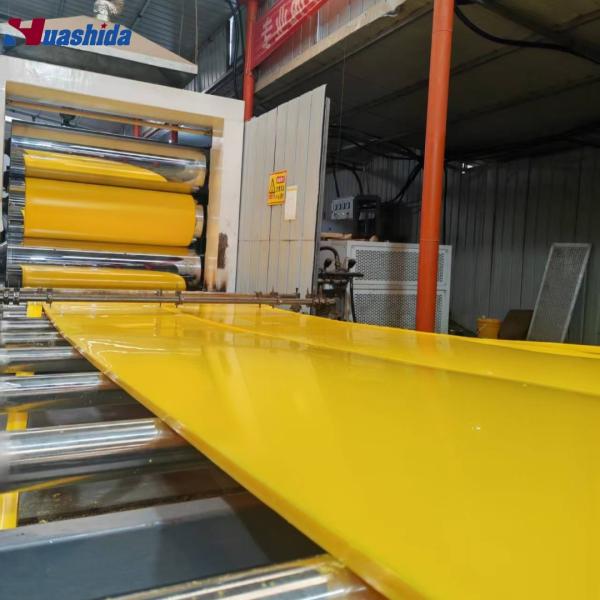

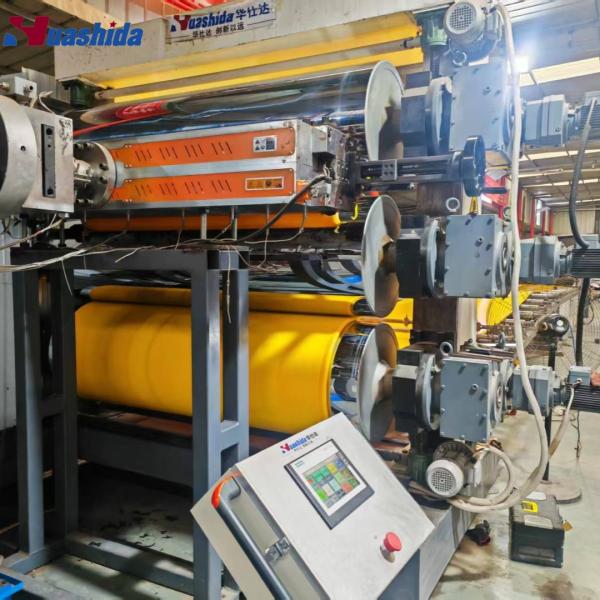

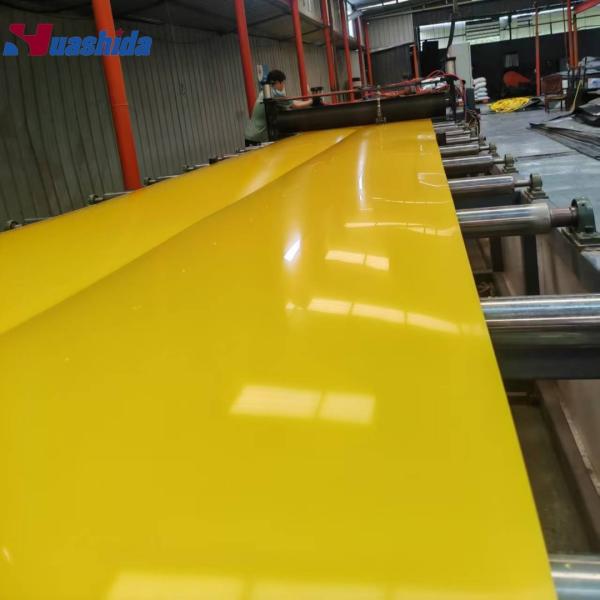

This extrusion line contains:
Extruder, Screen exchanger, Mould, Three-roller calender, Temperature controller, Cooling carrier frame, Haul-off, Cutter/Winder.

I. LDPE Sheet Extrusion Line
1 Hopper drier 1set
2 Vacuum loader 1set
3 SJ75/30 single screw extruder 1set
4 Mould 1set
5 Three-calender Machine 1set
6 Cooling rack 1set
7 Hauling machine 1set
8 Board shearing machine 1set
9 Stacker-made by USER 1set
10 Alloy net lamination device 1set


Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes


Product Parameters


Electro-Fusion Mesh Material Composition:

  • Material: Thin-wall stainless steel (nickel and chrome alloy) processed under high-pressure stamping.
  • Thickness: 0.30 mm ± 0.015 mm.
  • Width: 50 mm ± 0.2 mm.
  • Length: 1770 mm ± 10 mm.

Electrical Resistivity Standards:

  • Mesh Width: 50 mm x 3 mm x 6 mm.
  • Mesh Hole Diameter: 0.3 mm.
  • Wire Resistivity: 0.8 Ω/m.

Resistivity of electrofusion mesh
(mm/m)
Width of electrofusion mesh		 (mmxmm)
Mesh hole		 mm
Mesh wire		 (Q/m)
Resistivity
50 3x6 0.3 0.8
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes

Application

√Oil & Gas Pipelines: Securely joins and seals pipelines transporting fluids.

√Water Supply Systems: Ensures long-lasting, leak-proof connections.

√Industrial Processes: Suitable for chemical and heavy-duty applications.

Detailed Photos

Electro Fusion Sleeve Production Line 20mm Thickness for HDPE PipesElectro Fusion Sleeve Production Line 20mm Thickness for HDPE PipesElectro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes

Our Electro-Fusion Sleeve Production Line combines state-of-the-art technology with decades of expertise to deliver world-class products that meet the most stringent industrial requirements. Whether for oil, gas, or water pipeline projects, our sleeves ensure secure, durable, and efficient connections every time.Contact us today for a custom solution tailored to your pipeline needs!

International Trading show

Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes

Certifications

Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes

Clients case


Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
