Specifications
Brand Name :
HUASHIDA
Model Number :
530-1420
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
$100000-$300000/set
Payment Terms :
T/T
Supply Ability :
20 sets/year
Delivery Time :
60-90 days
Blasting Standard :
SA2.5
Productioncapacity :
1-3 meters per minute
Controlsystem :
Siemens PLC and HMI
Pipe Surface Preparation :
Shot Blasting
Warranty :
12 months
Condition :
New
Description

3LPE Coating Pipe Production Line water gas oil pipeline anticorrosion

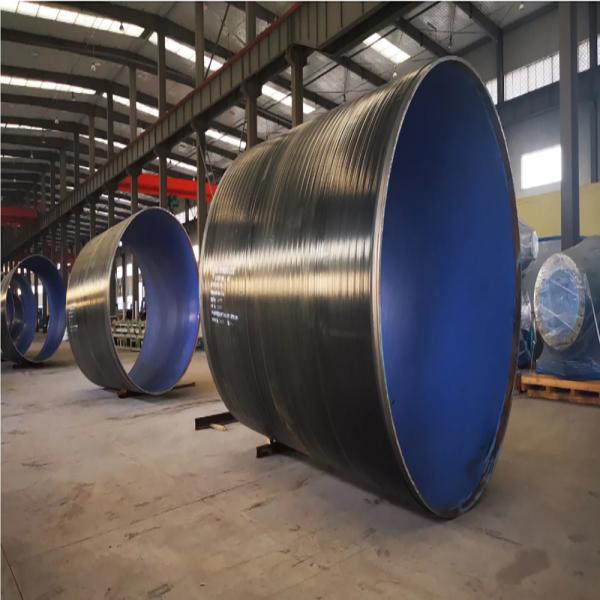

3LPE Coating Pipe Production Line is engineered for high-efficiency, precision coating of steel pipes ranging from Φ59 mm to Φ3000 mm in diameter. It applies a triple-layer protective coating—Fusion-Bonded Epoxy (FBE), Adhesive (AD), and Polyethylene (PE)—that delivers exceptional corrosion resistance, long-term durability, and robust mechanical performance. Ideal for critical pipeline projects in oil & gas, water transmission, and industrial infrastructure worldwide.

Advanced Coating Structure:

  • FBE Primer Layer (>100 μm) – Ensures strong adhesion and corrosion inhibition

  • AD Bonding Layer (170–250 μm) – Seamlessly integrates epoxy and polyethylene layers

  • PE Outer Layer (2.5–3.7 mm) – Provides mechanical protection and environmental resistance

The three layers are thermally fused into a unified, high-integrity coating that permanently bonds to the steel surface, forming a continuous impermeable shield against harsh operating conditions.

Automated Production Workflow:

  1. Pipe Loading & Alignment

  2. Shot Blasting (Surface Preparation)

  3. Medium-Frequency Induction Heating

  4. FBE Powder Application

  5. Adhesive & PE Extrusion Coating

  6. Water Cooling & Curing

  7. Pipe End Beveling & Finishing

  8. Final Unloading & Inspection

Designed for high throughput and consistent quality, this system features precise temperature control, automated material handling, and an environmentally conscious operating process, making it a reliable choice for modern pipeline coating requirements.


Equipment List

No.

Name

Set

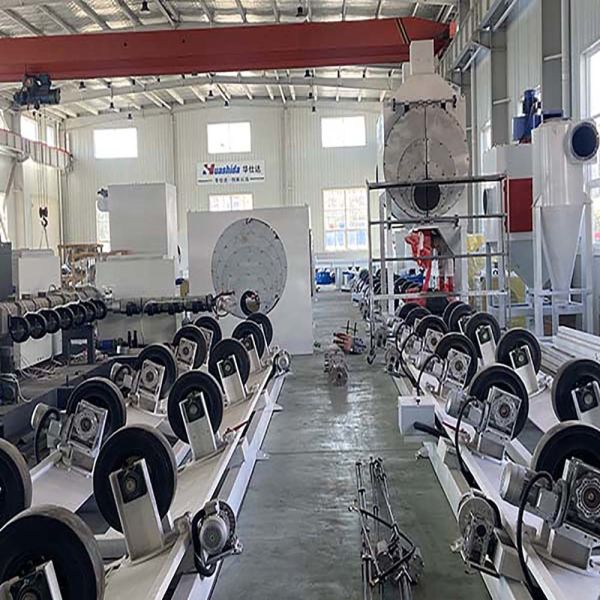

A. Surface cleaning -Shot blasting line

1

Pipe-converying Equipment

1

2

Shot Blast Cleaning Machine

1

3

Cyclone Dust Collector

1

4

Cartridge dust collector

1

5

Centrifugal exhaust fan

1

6

PLC control system

1

B. Coating applying equipment

1

Spiral Conveyor

1

2

Induction heating device

1

3

Powder spraying device

1

4

Automatic loading dryer

2

5

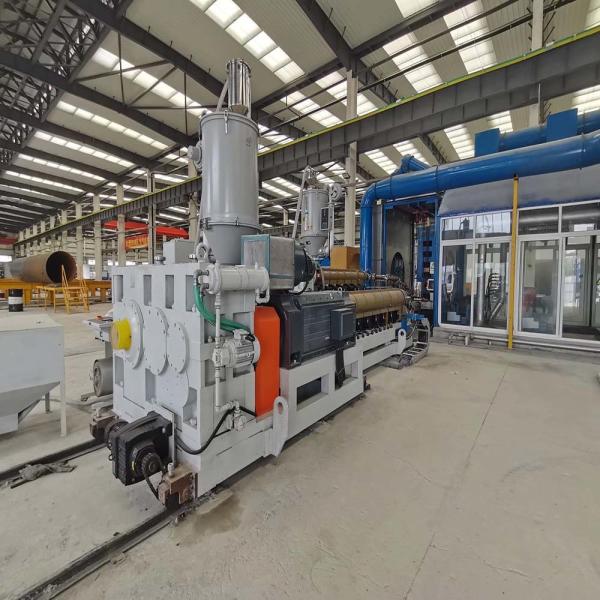

SJ-65/30 Extruder

1

6

SJ-150/30 Extruder

1

7

Hot melt adhesive extruder die

1

8

PE sheet extruder head mold

1

9

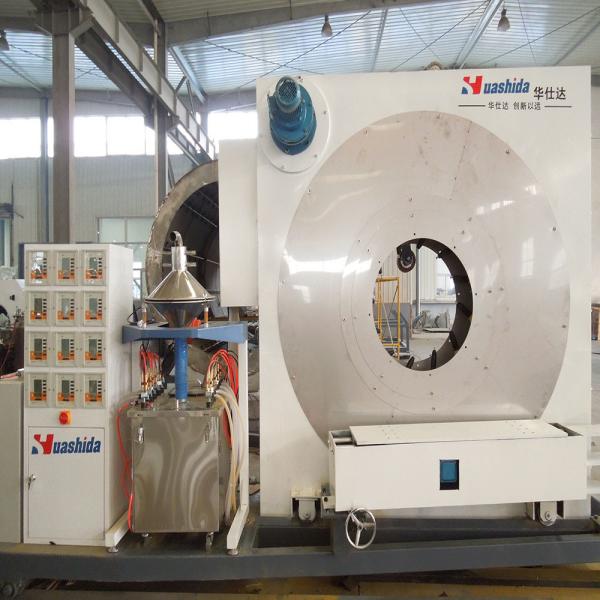

Hot melt adhesive/PE sheet coating device

1

10

Cooling Spray equipment

1

C.Platform Equipment

D.End cleaning Equipment

1

PE Beveling Machine

2

2

Hydraulic Lifting and Turning Machinery

1

3

Hydraulic Equipment

1

4

PLC

1
