O-Type Extrusion 3LPE Coating Machine for 50mm-426mm Steel Pipes with SA 2.5 Surface Treatment
O-Type Extrusion 3LPE Coating Machine for 50mm-426mm Steel Pipes with SA 2.5 Surface Treatment
O-Type Extrusion 3LPE Coating Machine for 50mm-426mm Steel Pipes with SA 2.5 Surface Treatment
O-Type Extrusion 3LPE Coating Machine for 50mm-426mm Steel Pipes with SA 2.5 Surface Treatment
Specifications
Brand Name :
Huashida
Model Number :
HSD 377 mm
Certification :
CE, ISO
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
100000-3000000
Payment Terms :
L/C,T/T
Supply Ability :
50 units/ month
Delivery Time :
90 days
Packaging Details :
Standard Package
Model NO. :
HSD 50-426
Coating :
Powder Coating
Application :
3PE 2PE Fbe Anticorrosion Coating
PE Thickness :
2-3mm
Pipe Surface Treatment :
No Less Than SA 2.5
Fbe Thickness :
200-800um
Description
Corrosion Resistance O-Type Extrusion 3lpe Coating Machine for Steel Pipes
Product Description

A complete set of O-type Extrusion Anti-Corrosion 3LPE 2LPE FBE Coating Machine includes systems of steel pipe transmission, shot blasting, dust collector, pipe heating, electrostatic spraying powder, PE and adhesive coating, water cooling, edge cutting, hydraulic and pneumatic device, detecting and electric controlling system.

O-type extrusion 3LPE anti-corrosion coated steel pipe has good chemical resistance:
it can resist the erosion of a variety of chemical media,,such as acids, bases, salts, oxidants, etc,suitable for medium transportation in different environments, prolong the service life of steel pipe. This kind of anti corrosive steel pipe is widely used in oil, natural gas transmission pipelines, water supply and drainage pipelines and many other fields.
O-Type Extrusion 3LPE Coating Machine for 50mm-426mm Steel Pipes with SA 2.5 Surface Treatment

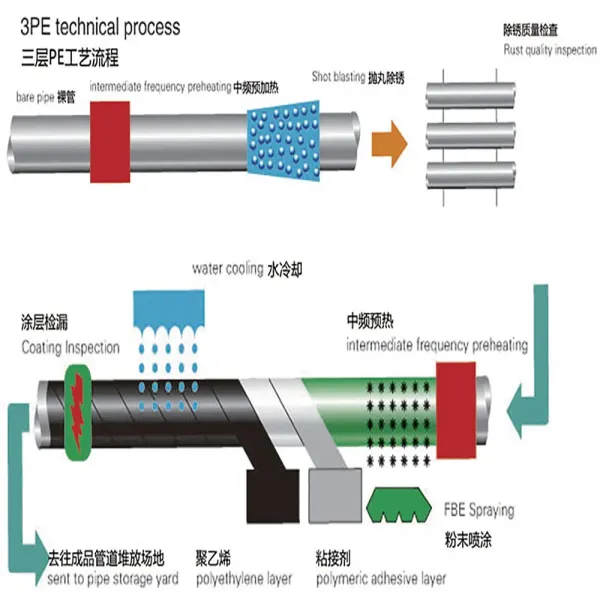

Technological Processes


Upload pipes→pipes screw conveyor→rust removal→intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→unload pipes
O-Type Extrusion 3LPE Coating Machine for 50mm-426mm Steel Pipes with SA 2.5 Surface Treatment

Product Parameters


(1) Steel pipe range:50mm-426mm
(2) Processing capacity:≥150m2/h
(3) Cleaning level:Sa2.5
(4) Materials for production: Epoxy powder, adhesive, polyethylene
O-Type Extrusion 3LPE Coating Machine for 50mm-426mm Steel Pipes with SA 2.5 Surface Treatment

Our Advantages


-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good anti-corrosion quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
O-Type Extrusion 3LPE Coating Machine for 50mm-426mm Steel Pipes with SA 2.5 Surface Treatment

Main Equipment List

No. Name Set
A. Derusting Equipment
1 Pipe-converying Equipment 1
2 Shot Blast Cleaning Machine 1
3 Cyclone Dust Collector 1
4 Pulse dust collector 1
5 Centrifugal exhaust fan 1
6 Rust removal equipment PLC control system 1
B. Coating equipment
1 Coating transfer equipment 1
2 IF heating device 1
3 Powder spraying device 1
4 Automatic loading dryer 2
5 SJ-65/30 Extruder 1
6 SJ-90/30 Extruder 1
7 Hot melt adhesive extruder die 1
8 PE extruder head mold 1
9 Hot melt adhesive/PE coating device 1
10 Cooling Spray equipment 1
C.Platform Equipment
1 Steel pipe platform 1
2 Post-rust removal transition platform 1
3 Product tube storage platform 1
4 Hydraulic Equipment 2
D.Groove Equipment
1 PE Beveling Machine 2
2 Hydraulic Lifting and Turning Machinery 1
3 Hydraulic Equipment 1

Company Background

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
