Specifications
Brand Name :
HUASHIDA
Model Number :
PE Board
Certification :
CE, ISO9001:2008
Place of Origin :
QINGDAO ,CHINA
MOQ :
1
Price :
US$250,000.00 - 500,000.00
Payment Terms :
L/C,D/P,Western Union
Supply Ability :
30 Units/Year
Delivery Time :
60days
Packaging Details :
Standard Package
Board Layers :
Single Plate
Adhesive Coating Thickness :
0.1-0.5mm
Basing Tape Max. Width :
1000mm
Customization :
can be customized
Description

PE Cold Application Anticorrosion Wrap Tape Coating Machine for Oil & Gas Pipelines


Product Description

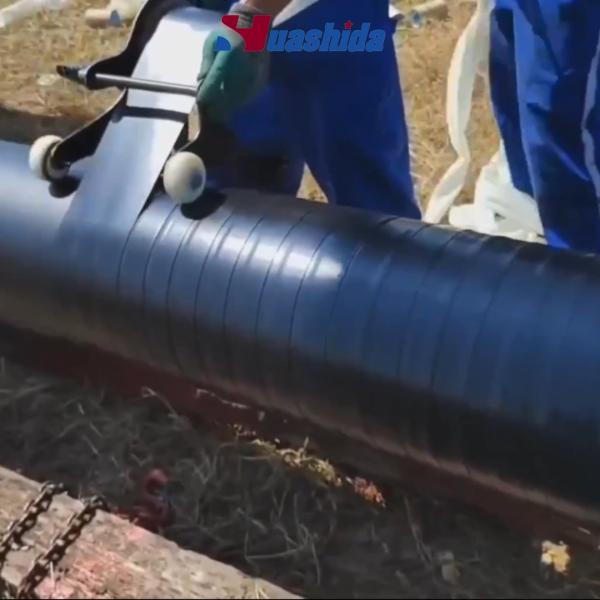

Anti corrosion tape-Inner Layer Tape is polyethylene (PE) anti-corrosion self-adhesive tapes. It is cold applied tape coating systems for corrosion protection of Water, Oil and Gas Pipelines. The anti corrosion tape is engineered to assure a high bond to the primed surface with excellent conformability characteristics. It is application should after Primer and before Mechanical Protection Outer Layer.

The equipment mainly consists of three parts: PE base film extrusion production line, Adhesive coating equipment, and slitting equipment.

PE Cold Application Anticorrosion Wrap Tape Coating Machine for Oil & Gas Pipelines
PE Cold Application Anticorrosion Wrap Tape Coating Machine for Oil & Gas Pipelines

Technical Parameters

The manufacturing procedure of cold-applied tape generally comprises the following key stages:

1.Base Film Extrusion
Raw Material Preparation: Polyethylene (PE) is prepared as the base film raw material.
Extrusion Molding: The raw material is heated and melted in an extruder, then molded through a die to form a continuous base film.
Cooling and Shaping: The extruded base film is cooled and shaped using cooling rollers to ensure uniform thickness and consistency.

2.Adhesive Coating
Adhesive Preparation: Butyl rubber are prepared to ensure proper viscosity and stability.
Coating Process: The adhesive is evenly applied to one or both sides of the base film using coating equipment to form an adhesive layer.

3.Slitting
Slitting Preparation: The coated base film roll is prepared, and the parameters of the slitting equipment are adjusted.
Slitting Operation: The wide roll is slit into cold-applied tapes of the required width using slitting equipment.
Winding and Packaging: The slit cold-applied tapes are wound into rolls, packaged, and prepared for shipment.

Detailed Photos


PE Cold Application Anticorrosion Wrap Tape Coating Machine for Oil & Gas Pipelines


PE Cold Application Anticorrosion Wrap Tape Coating Machine for Oil & Gas Pipelines
