Specifications
Brand Name :
HUASHIDA
Model Number :
50-1500MM
Certification :
CE, ISO9001:2008
Place of Origin :
QINGDAO,CHINA
MOQ :
1
Price :
US$100,000.00 - 1,300,000.00
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30 Sets/Year
Delivery Time :
60DAYS
Packaging Details :
Wodden Box
Pipe Structure :
Puf Insulation Layer, PE Outer Casing
Foaming Machine :
High-Pressure Foaming Machine
Foaming Thickness :
30-100mm
Applications :
Hot Chiller Water/Oil /Chemical Material Pipeline
Description

Rigid Polyurethane Spraying Polyethylene Winding Insulating Pipes Production Line

Product Description

1. Production line introduction
Polyurethane (PU)spraying polyethylene(PE) wrapping pre-insulated pipe production line is used for the production of polyurethane prefabricated direct buried thermal insulating pipes, which are widely used in the field of heating, cooling and crude oil transportation.
Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline

2. Product structure
Huashida Rigid polyurethane spraying polyethylene winding prefabricated directly buried insulation pipe consists of steel working pipe, spraying polyurethane rigid foam insulation layer and winding polyethylene outer protective pipe. The product structure is shown in the figure below:
Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline

3. Technological flow:

Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material PipelineThe spraying and winding production process ensures the uniformity of the density of the insulation layer, improves product quality, and reduces production costs.

Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline
PU Foaming spary Preinsulation Pipe Continuous Production Line

4. PUF spray PE winding preinsulated pipe production line consists of the following parts:
1) Steel pipe outwall shot blasting line
2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipment

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:
No. name
1 External wall Shot blasting rust removel machine
2 Medium-frequency induction heating furnace
3 Polyurethane spray foaming unit
4 pipe rotator trolley
5 Single screw extruder and diehead mould
6 Finished pipe ends trimming machine
7 pipe Conveyers and racks
8 Electrical system and PLC

5. Advantages of Polyurethane spray insulation pipe:
1). The density of polyurethane is uniform and controllable.
2). Polyurethane rigid foam has no empty spaces.
3). The surface of polyurethane foam is rough, the shear strength (friction) to the polyethylene outer casing is greater than 200Kpa.
4). The thickness of the polyurethane insulation layer and the thickness of the polyethylene outer casing can be adjusted according to the design.
5). The production has a high degree of automation.

Detailed Photos

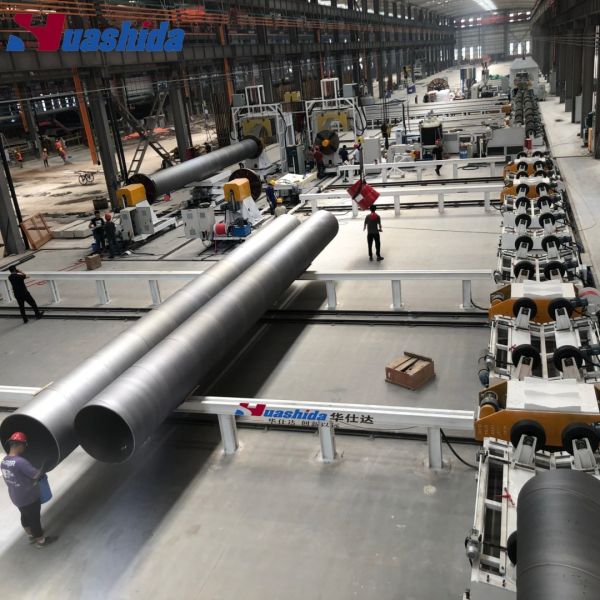

Production line equipment Photos show

Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline
Rust Removal
Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline

PE film jacket wrapping

PE Jacket Water quenching
Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.

Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html


HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
