Specifications
Brand Name :
Huashida
Model Number :
58-3500 mm
Certification :
CE, ISO, RoHS
Place of Origin :
Qingdao，Huashida
MOQ :
1 set
Price :
100,000.00 - 300,000.00 1 Set (MOQ)
Payment Terms :
T/T
Supply Ability :
30 sets units/year
Delivery Time :
70-90 days
Packaging Details :
Standard Package
Model NO. :
Pipe dia. 57-3400mm
Substrate :
steel
Blasting :
>2.5A
PE Thickness :
2-3mm
Description

Internal Epoxy and External Three-Layer Anti-Corrosion Poduction Line

Basic Info.

Model NO.
HSD
Type
Coating Production Line
Coating
Powder Coating
Substrate
Steel
Certification
ISO
Condition
New
Model
108-630
Pipe Ranges
108-630mm
Extrusion Capability
680kg/H
Serives
One Year
Pipe Style
PE
Transport Package
Standard Package for Export
Specification
pipe dia. 108-630mm
Trademark
Huashida
Origin
Qingdao, China
HS Code
8477209000
Production Capacity
680kg/H

Packaging & Delivery

Package Size
3500.00cm * 450.00cm * 500.00cm
Package Gross Weight
4000.000kg

Product Description

Internal Epoxy And External Three-layer Anti-corrosion Poduction Line
Product Description

Qingdao Huashida Machinery Co., Ltd. On the basis of absorbing advanced technical and innovative ideas, It has researched and developed 3PEcoating production line. It indicating the direction of the 3PE coating production line with high performance.
3LPE Coating Pipe Production Line with Pipe dia. 57-3400mm Blasting >2.5A and PE Thickness 2-3mm for Anti-Corrosion

Innovation Defines Quality - Huashida 3PE Coating Line Safeguards Global Pipelines

For over two decades, Qingdao Huashida Machinery Co., Ltd. has been dedicated to the research and manufacturing of advanced plastic and anti-corrosion equipment.
The company's latest 3PE Coating Production Line (HSD1000-2400) adopts internationally advanced three-layer coating technology to provide durable and reliable corrosion protection for oil, gas, and water pipelines.

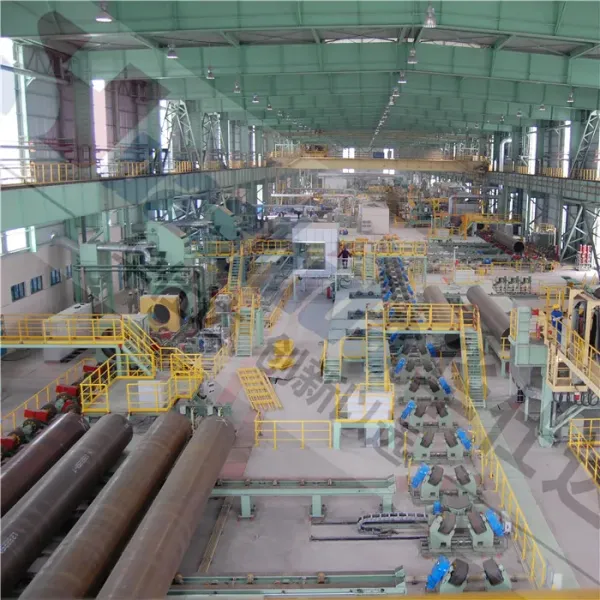

The line integrates automatic shot blasting, epoxy spraying, hot-melt bonding, polyethylene wrapping, and intelligent control into one continuous process. The coating is uniform and highly adhesive, effectively preventing corrosion and moisture penetration.
Certified under the ISO international quality management system, the equipment ensures stable quality and superior performance.
With its cutting-edge technology and strong service capability, Huashida's anti-corrosion equipment has been exported to the Middle East, Russia, Africa, and Southeast Asia, becoming a trusted partner for pipeline enterprises worldwide.
Huashida - Innovating for Excellence, Protecting Pipelines for the Future.
Detailed Photos


3LPE Coating Pipe Production Line with Pipe dia. 57-3400mm Blasting >2.5A and PE Thickness 2-3mm for Anti-Corrosion
3LPE Coating Pipe Production Line with Pipe dia. 57-3400mm Blasting >2.5A and PE Thickness 2-3mm for Anti-Corrosion


Technological processes

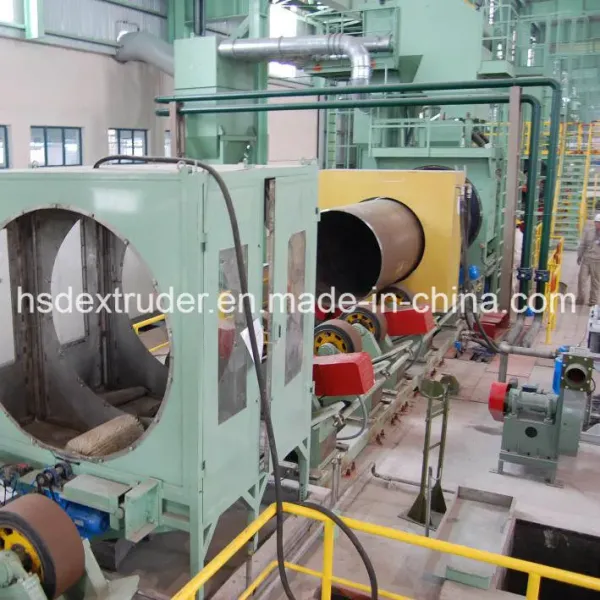

Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, s end→unload pipes
Circumstance condition
Product Parameters

Circumstance condition
Location temperature installation capacity available material
Indoor 0-30ºC Approx 1650KW FBE powder
Hot melt adhesive
HDPE granule

working conditions:
Power source Installation capacity Consumption of recycling cooling water
Approx 1650kw 3 phase 380v(-10%,+5%)50HZ ≤15ºC,0.15-0.2Mpa,0.5m3/min

3LPE Coating Pipe Production Line with Pipe dia. 57-3400mm Blasting >2.5A and PE Thickness 2-3mm for Anti-Corrosion
3LPE Coating Pipe Production Line with Pipe dia. 57-3400mm Blasting >2.5A and PE Thickness 2-3mm for Anti-Corrosion
3LPE Coating Pipe Production Line with Pipe dia. 57-3400mm Blasting >2.5A and PE Thickness 2-3mm for Anti-Corrosion
