Specifications
Brand Name :
HUASHIDA
Model Number :
500-1500MM
Certification :
CE, ISO9001:2008
Place of Origin :
QINGDAO,CHINA
MOQ :
1
Price :
US$100,000.00 - 1,300,000.00
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
30 Sets/Year
Delivery Time :
60DAYS
Packaging Details :
Wodden Box
Type :
Polyurethane Foam Machine
Foaming Thickness :
30-100mm
Applications :
Hot Chiller Water/Oil /Chemical Material Pipeline
Foaming Machine :
High-Pressure Foaming Machine
Description

Polyurethane PU Foam Pre-Insulated Steel Pipe Production Line machine

Product Description

PU Foaming spary Preinsulation Pipe Continuous Production Line

1. Pipe structure
Our company independently developed the spray winding insulation pipe production line, which consists of three parts: shot blasting and rust removal production line, polyurethane spraying production line, and PE winding production line.

2. Production line parameters:
(1) Steel pipe coverage: 206mm-1820mm
(2) Processing capacity: ≤250m2/h
(3) Cleaning level: Sa2.5
(4) Materials used: Black material (isocyanate), white material (combined polyether), polyethylene
(5) Main equipment: Shot blasting and rust removal production line, polyurethane spraying production line, PE winding production line, consisting of three parts

3. Technological flow:

PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal
PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal
PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal


PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal
PU Foaming spary Preinsulation Pipe Continuous Production Line


PUF spray PE winding preinsulated pipe production line consists of the following parts:
1) Steel pipe outwall shot blasting line
2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipment

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:
No. name
1 External wall Shot blasting rust removel machine
2 Medium-frequency induction heating furnace
3 Polyurethane spray foaming unit
4 pipe rotator trolley
5 Single screw extruder and diehead mould
6 Finished pipe ends trimming machine
7 pipe Conveyers and racks
8 Electrical system and PLC

Detailed Photos

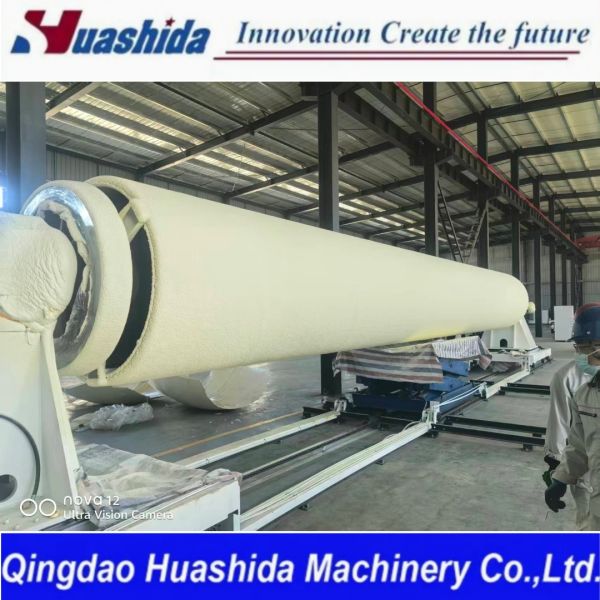

Production line equipment Photos show

PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal
Rust Removal
PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal

PE film jacket wrapping
PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal

PE Jacket Water quenching
PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.

Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html


HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.

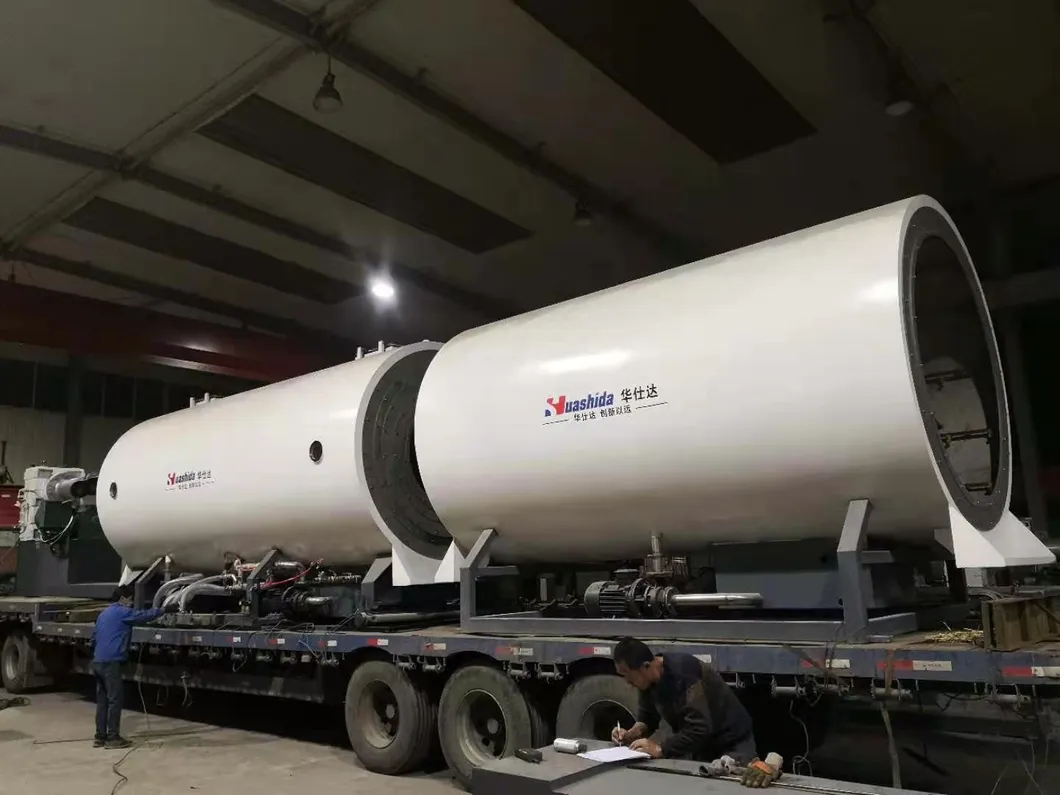

Shipment
