The Spray Winding Insulation Pipe Equipment is an automatic production line designed for manufacturing "polyurethane spraying + polyethylene winding" insulation pipes. This advanced system specializes in producing large-diameter, high-density, and high-performance prefabricated direct-buried insulation pipes, widely utilized in long-distance thermal power, chemical industry, and municipal heating projects.

The polyurethane spraying system operates with precision: the steel pipe rotates and moves forward at a constant speed while the spray gun uniformly applies liquid polyurethane (PU) to the outer wall. The material foams and solidifies instantly, forming a consistent insulation layer.

• One-step continuous forming: Integration of spraying and winding processes eliminates the need for foaming molds
• Flexible thickness adjustment: Insulation and outer protective layer thickness can be customized according to design requirements
• Uniform density: PU foam cells are fine and isotropic with minimal density fluctuation and no thermal bridges
• Stress-free outer protective layer: PE winding tightly wraps the insulation layer after cooling, enabling thinner wall thickness and material savings

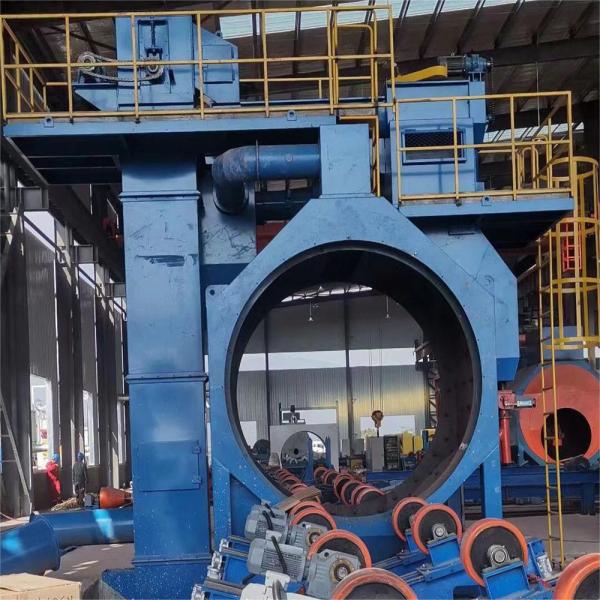

• External shot blasting and rust removal operation line
• Chuck type spraying operation line
• PU Thermal insulation layer winding production line
• PE Wrapping operation line
• Cooling system
• PLC control system

Jacketed Pipe Insulation Pipe (commonly known as "pipe-in-pipe") represents the traditional approach: first extruding the PE outer protective pipe, then sleeving it over the steel pipe, and finally pouring PU foam into the middle cavity to create the three-layer "steel pipe + PU + PE" structure.
