Specifications
Material :
PP/PE
Specification :
ISO9001: 2008
Brand Name :
huashida
Certification :
CE, ISO9001:2008, QS, GMP
Production Capacity :
10sets/Month
MOQ :
1
Place of Origin :
china
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Transport Package :
Standard Package
Computerized :
Computerized
Customized :
Customized
Delivery Time :
90 days
Automation :
Automatic
Price :
huashida
Packaging Details :
Standard packaging
Series :
Dwcp-600,Dwcp-1000
Max Speed :
6m/Min,1.2m/Min
Screw No. :
Single-screw
Model Number :
200-600,600-1000
Supply Ability :
100set a year
Description
HDPE Double Wall Corrugated Pipe Production Line
Product Overview
This advanced production line manufactures HDPE large diameter hollow wall steel reinforced winding pipes with superior performance characteristics.
Key Features
  • High ring stiffness
  • High impact strength with low weight
  • Excellent creep deformation resistance
  • Superior outer pressure resistance
  • Exceptional erosion resistance (acid, alkali, salt, etc.)
  • Production material cost savings
ISO9001:2008 Certified HDPE Double Wall Corrugated Pipe Production Line with Single-Screw Extruder and 6m/Min Max Speed ISO9001:2008 Certified HDPE Double Wall Corrugated Pipe Production Line with Single-Screw Extruder and 6m/Min Max Speed ISO9001:2008 Certified HDPE Double Wall Corrugated Pipe Production Line with Single-Screw Extruder and 6m/Min Max Speed ISO9001:2008 Certified HDPE Double Wall Corrugated Pipe Production Line with Single-Screw Extruder and 6m/Min Max Speed
Applications
Widely used for sewerage and drainage systems in urban areas. This pipe system replaces traditional plastic, cement, cast iron, and other pipe types. Its low assembly cost, easy operation, simple connection methods, and economical construction provide excellent market potential.
Production Line Features
  • Advanced technology design includes: 1st single screw extruder for profiled T belts, profiled T belts extrusion die, vacuum calibration cooling platform, haul-off, coiler; 2nd single screw extruder for HDPE plates; 3rd single screw extruder for melting glue material, spiral forming unit, cutting unit and stack unit

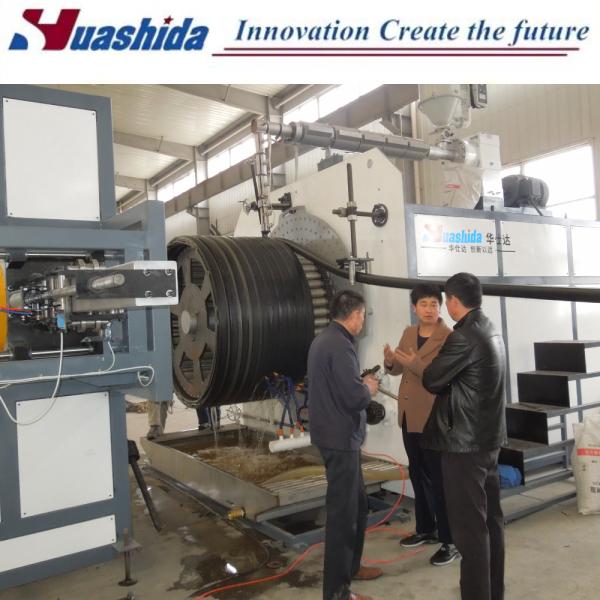

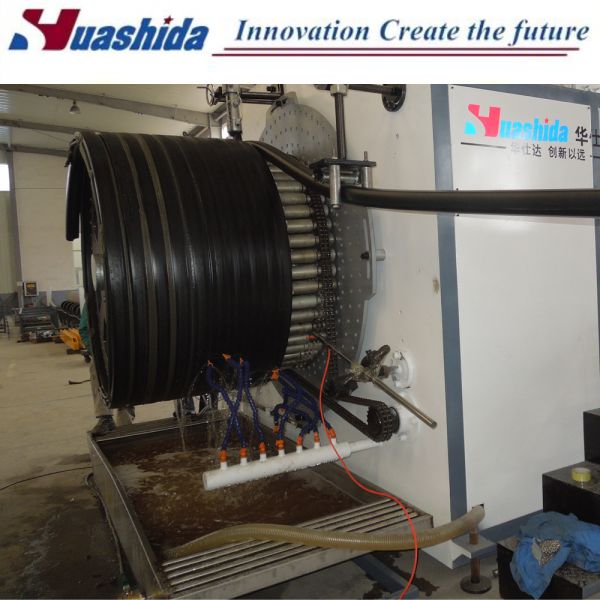

  • Spiral forming unit: Advanced multi-axes transmission box with high transmission force and stable running performance. Unique composite die-head design with rotational molding after combined feed
  • Cutting part: Saw cutting with desired length. OMRON or MITSUBISHI PLC computer control system with touch screen interface for automatic and reliable operation
  • PLC computer control system with touch screen: High-speed processing with large storage capacity. Multi-control points for synchronized operation of forming pipe extrusion, melting PE adhesive extrusion, winding and cutting processes
Production Line Components
The system consists of two main parts:
  • PE Pipe Production Line: Extrudes PE/PP profiled T belt. Includes SJ series Single Screw Extruder, Die Head (outer mold and mandrill), Calibration & Cooling platform, Haul-off and coiler
  • Forming Machine: Produces qualified HDPE double flat wall steel reinforced winding pipe. Includes SJ series Single Screw Extruder, Die Head, Spiral forming unit, Cutting Unit, Stack Unit, PLC control system with touch screen
Technical Parameters
PIPE DN Extruder Model Extruder Capacity Corrugator Series Mold Block Qty Max Speed (m/min)
ID200-600 SJ-90×36/SJ-75×36 600kg/400kg DWCP-600 36 6
ID600-1000 SJ-120×36 (3 sets) 850kg per DWCP-1000 39 1.2
Manufacturer Profile
Qingdao HuaShiDa Machinery Co., Ltd. is established in the High & New Technology Industrial Area of Qingdao, China. HSD's factory covers 34,000 square meters in Jin-ling Industrial Park, Chenyang District, Qingdao, China.
ISO9001:2008 Certified HDPE Double Wall Corrugated Pipe Production Line with Single-Screw Extruder and 6m/Min Max Speed ISO9001:2008 Certified HDPE Double Wall Corrugated Pipe Production Line with Single-Screw Extruder and 6m/Min Max Speed ISO9001:2008 Certified HDPE Double Wall Corrugated Pipe Production Line with Single-Screw Extruder and 6m/Min Max Speed ISO9001:2008 Certified HDPE Double Wall Corrugated Pipe Production Line with Single-Screw Extruder and 6m/Min Max Speed
Product Range
  • Single Screw Extruder & Twins Conical Extruder
  • Vacuum Calibrating pre-insulated pipe outside HDPE casing Extrusion line
  • 16-800mm Single/multi layer HDPE Pipe Extrusion Line
  • 200-3000mm HDPE Spiral Corrugated Pipe Extrusion Line
  • Fiberglass reinforced PP-R Pipe Co-extrusion line
  • Plastic Sheet/Plate Single/multi layer Extrusion Line
  • PVC Fiber & Steel Wire Reinforced Hose Line
  • Hand Extruder / Electro-fusion Welder
  • Heat Shrinkable sleeves (Normal style & Fiber Reinforced style)
  • Electro-fusion Girth Welding joint closure & Electro-fusion welded belt
