Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
Specifications
Supply Ability :
20 Sets/Year
Foam Material :
Polyurethane (PU)
Price :
220000-350000$
Shaft Material :
40Cr
Features :
High-Speed, Energy-Saving
Brand Name :
Huashida
Model Number :
HSD
Place of Origin :
CHINA
Packaging Details :
according to customer's requirement
Screw No :
Single-screw
Foamingmethod :
High-pressure foaming
Insulationmaterial :
Polyurethane (PU) foam
Product Type :
PE Pipe
Certification :
CE, ISO9001:2008
Exhaust :
Exhaust
MOQ :
1
Inner Pipe Material :
PERT, Plastic pipe
Diameter Range :
508-1680mm
Payment Terms :
T/T,Western Union
Description
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
Production Line Overview
Application Steel pipe anti-corrosion coating
Applying coating type 3PE, 3LPE, 2PE, 2LPE, 3PP, 2PP, FBE
Type of steel pipe Seamless steel pipe, spiral steel pipe, straight seam steel pipe
Diameter range 508-1680mm
Main equipment Pipe conveyor, Shot blasting machine, Electrostatic spraying machine, PE & Adhesive extruder, Water cooling room, Pipe end beveling machine, Dust removal machine, PLC control system
Available for coating standards DIN30670-1991, CAN/CSA Z245.21-2010, ISO21809-1-2009 SY/T 0413-2002, GB/T23257-2009, SY/T 0315-2002, AWWA C213-2001, CAN/CSAZ245.20-2010, ISO218909-2-2007, API RP5L9-2001, ГОСТ Р 51164-98

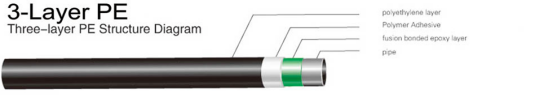

3-Layer PE Coating Structure
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery

3-layer PE anti-corrosion coating consists of three integrated layers:

  • FBE (Fusion bonded epoxy) coating, FBE >100um
  • Adhesive layer, 170~250um
  • Polyethylene layer, 1.8~3.7mm

The three layers are integrated and firmly combined with the steel pipe to form an excellent anti-corrosion coating.

Advantages of 3-Layer PE Coating

The three-layer polyethylene anti-corrosion coating combines the excellent properties of epoxy coating and extruded polyethylene layer: the interface characteristics and chemical resistance of the epoxy coating and the mechanical protection characteristics of extruded polyethylene layer.

Therefore, it is very superior as the outer protective layer of buried pipelines. After rigorous scientific testing, the three-layer PE coating can make the life of the buried pipeline reach 50 years. At present, it is recognized as an efficient external pipeline anti-corrosion technology in the world.

Steel pipe with 3-layer PE coating (3PE) is widely used in pipeline systems for the transmission of oil, gas, water, and other fluids. They have high resistance to corrosive from chemicals, moisture, harmful environment etc.

Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery

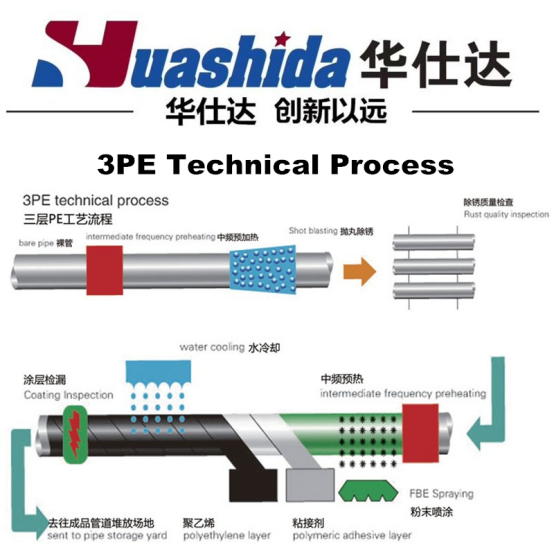

Internal and External Epoxy Coating Process Flow
Pipe Appearance Inspection → Qualified Pipe Loading → Spiral Conveying → Motorized Pipe Chasing → External Shot Blasting with Dust Collection → Motorized Pipe Disconnect → Inspection → Internal Shot Blasting → Internal Shot Blasting with Dust Collection → Inspection → Spiral Conveying → Pipe End Masking → Pipe Heating → Internal and External Epoxy Spraying → Beveling → Packaging and Unloading
Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery
