Specifications
MOQ :
100 Pieces
Packaging Details :
Standard Package
Certification :
ce
Payment Terms :
L/C,D/P,T/T
Material :
PE
Price :
US$10.00-30.00
Delivery Time :
30DAYS
Place of Origin :
qingdao ,china
Brand Name :
huashida
Structure :
2 Layers or 3 Layers
Color :
Black
Model Number :
Adhesive Tape
Use :
Steel Pipe Anti-Corrosion, Plastic Pipe Connection
Feature :
High Strength, Waterproof
Supply Ability :
5ton/Day
Description






Product Description


Radiation Cross-Linked Heat Shrink Tape for Pipeline Weld Joint Corrosion Protection

Radiation Cross-Linked Heat Shrink Tape for Pipeline Weld Joint Corrosion Protection

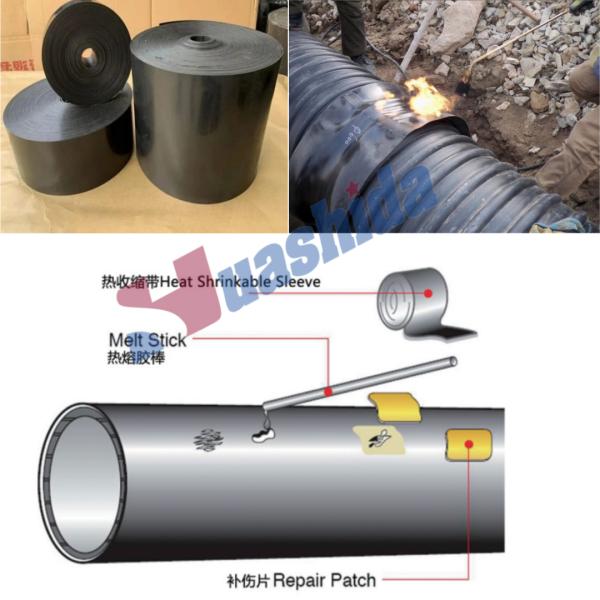

Heat shrinkable sleeve/belt developed and manufactured by Qingdao Huashida Machinery Co., Ltd for anti-corrosion of pipeline, is composed by radiation cross-linked polyethylene backing and adhesive (2 layers).
During connecting pipes, the hot melt adhesive is squeezed into the joint by the shrink power to form a perfectly sealed surface after being heated. It has good performance in pipeline waterproof, anti-chemical corrosion, insulation and anti-aging.

Application area:
It is mainly used for wrapping around the pipe, anti-corrosion of kinds of pipe joints, and repairing pipes.
For example Oil and gas pipe, PU insulation pipe, 3PE/2PE steel pipe.

Feature of our heat shrinkable sleeve:
1.Fast shrinkage speed,
2.good waterproof performance,
3 good anti-corrosive performance,
4.long service life, convenient transportation and fast construction.
5.using pure PE material and imported adhesive for ensuring the quality

TECHNICAL PARAMETERS
NO Test Item Unit Performance Test Result Test Method
Back Material
1 Tensile Strength MPa ≥17 19.47 ASTM D638
2 Elongation % ≥400 626 ASTM D638
3 Vicat Softening Point ºC ≥90 92 ASTM D1525
4 Brittleness Temperature ºC <-65 <-65 ASTM D2671C
5 Dielectric Strength MV/m ≥25 33.13 ASTM D149
6 Volume Resistivity Ω.m ≥1*1013 1.1*1013 ASTM D257
7 Environment Stress Crack h ≥1000 >1000 GB/T1842


8
Chemical
resistance
(7d)		 10%
HCI		 Tensile strength MPa ≥85 104.9 ASTM D638
Elongation % ≥85 96.3 ASTM D638
10%
Naah		 Tensile strength MPa ≥85 102.1 ASTM D638
Elongation % ≥85 95.6 ASTM D638
10%
NaCl		 Tensile strength MPa ≥85 108.3 ASTM D638
Elongation % ≥85 94.1 ASTM D638
9 Thermal aging
(150ºC,168h)		 Tensile strength MPa ≥14 20.7 ASTM D638
Elongation % ≥300 630 ASTM D638
NO. Test Item Unit Performance Text Result Text Method
Adhesive
1 Softening Point ºC ≥90 90.1 ASTM E28
2 Brittleness Temperature ºC <-15 <-15 ASTM D2671C
3 Lap Shear MPa ≥1.0 1.5 ASTM D1002

4		 Peel Strength
(23±2ºC)		 Steel N/cm ≥70 145.6 ASTM D1000
Primer N/cm ≥70 205.9 ASTM D1000
PE layer N/cm ≥70 190.0 ASTM D1000
Non-solvent Epoxy Primer
5 Shear of cured primer MPa ≥5.0 12 SY/T0041
Application

Heat shrinkable sleeve for Oil & Gas Pipe
Radiation Cross-Linked Heat Shrink Tape for Pipeline Weld Joint Corrosion Protection
Heat shrinkable sleeve for Thermo Insulated Pipe
Radiation Cross-Linked Heat Shrink Tape for Pipeline Weld Joint Corrosion Protection
For metal reinforced HDPE corrugated pipe (drainpipe)
Radiation Cross-Linked Heat Shrink Tape for Pipeline Weld Joint Corrosion Protection
DELIVERY
Radiation Cross-Linked Heat Shrink Tape for Pipeline Weld Joint Corrosion Protection
Radiation Cross-Linked Heat Shrink Tape for Pipeline Weld Joint Corrosion Protection
Radiation Cross-Linked Heat Shrink Tape for Pipeline Weld Joint Corrosion Protection
Radiation Cross-Linked Heat Shrink Tape for Pipeline Weld Joint Corrosion Protection
