PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
Specifications
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
31 Sets
Packaging Details :
Standard Package
Capacity :
160 - 200 kg/H
Place of Origin :
China - Shandong - Qingdao
Price :
200,000.00 - 400,000.00 USD$
Screw No. :
Single-screw
Certification :
CE, ISO9001:2008
Brand Name :
Huashida
Delivery Time :
80 days
Model Number :
HSD
Feeding Mode :
One Feed
MOQ :
1 set
Material :
Polyethylene PE
Description
Production Line Equipment of PE Cold Tape For Pipeline Protection Application
Product Overview

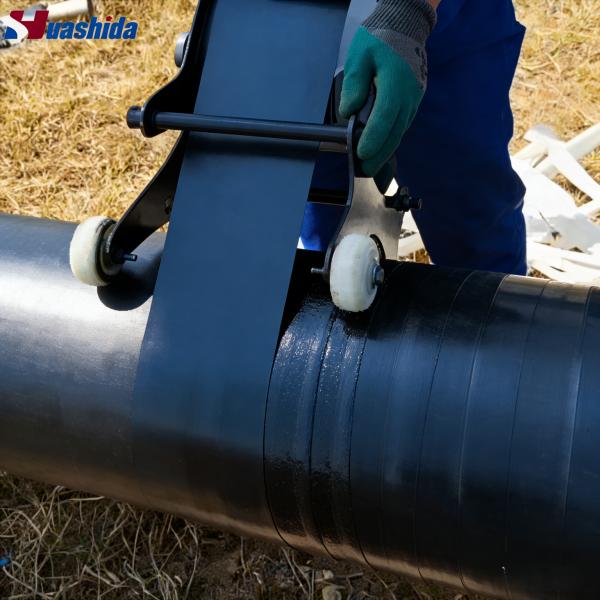

Cold-applied anticorrosion tape making machine is designed for producing PE tape for protection of underground or overhead pipelines in oil, gas, petrochemical, and wastewater industries.

The equipment mainly consists of three parts: PE base film extrusion production line, adhesive coating equipment, and slitting equipment.

PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
Production Process

The production process of cold-applied tape includes the following main steps:

  • Base Film Extrusion
    • Raw Material Preparation: Polyethylene (PE) is prepared as the base film raw material

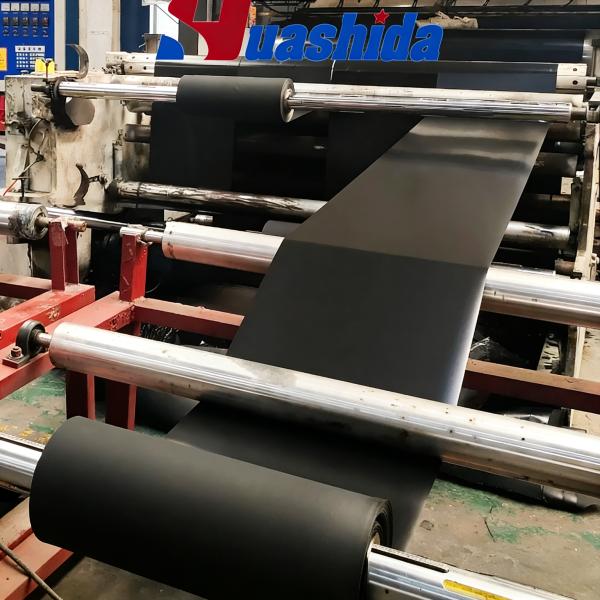

    • Extrusion Molding: Raw material is heated and melted in an extruder, then molded through a die to form continuous base film
    • Cooling and Shaping: Extruded base film is cooled and shaped using cooling rollers to ensure uniform thickness and consistency
  • Adhesive Coating
    • Adhesive Preparation: Butyl rubber is prepared to ensure proper viscosity and stability
    • Coating Process: Adhesive is evenly applied to one or both sides of the base film using coating equipment
  • Slitting
    • Slitting Preparation: Coated base film roll is prepared and slitting equipment parameters are adjusted
    • Slitting Operation: Wide roll is slit into cold-applied tapes of required width
    • Winding and Packaging: Slit tapes are wound into rolls, packaged, and prepared for shipment
Equipment Specifications
PE Base Film Extrusion Line
No. Equipment Name Quantity
1 Vacuum automatic feeder 1
2 Hopper dryer 1
3 SJ-75X30 extruder 1
4 Hydraulic screen changer 1
5 Die head mold type 1000 1
6 Multi-roller tape-casting machine 1
7 Winding machine 1
8 PLC computer control system 1
Adhesive Coating Machine
No. Equipment Name Quantity
1 Frame 1 unit
2 200N*M Magnetic powder brake + Silicone stick 1300mm with corona processor 1 unit
3 100N*M Magnetic powder brake 1 unit
4 100N*M magnetic powder clutch 2 units
5 200N*M magnetic powder clutch 1 unit
6 Screw 1 unit
7 Force-feed device 1 unit
8 Constant pressure system 1 unit
9 Adhesive delivery pipe 1 unit
10 Winding machine 1 unit
11 Unwinding machine 2 units
12 Coating compound equipment 1 unit
13 Main engine frequency converter 1 unit
14 Extruder frequency converter 1 unit
15 Thermal switch 1 unit
16 PLC 1 unit
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
Company Profile

Qingdao Huashida Machinery Co., LTD is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials, with more than 20 years of production experience.

Main Products
  • HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
  • Rigid pre-insulated pipe Production Line
  • Flexible pre-insulated pipe (PERT) production line
  • Steel pipe FBE/3LPE/3LPP anti-corrosion coating line
  • Steel pipe dust control system (Shot and Sand blasting)
  • PE pressure pipe/Water Gas supply pipe production line
  • PP/PE plastic board/sheet/geomembrane production line
  • NBR PVC Thermal insulation tube/plate production line
  • Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod

We always attach great importance to research and development, collaborating closely with Tsinghua University, Beijing University of Chemical Technology, South China University of Technology and scientific research institutions. By absorbing advanced technology home and abroad, we now rank among the top 3 manufacturers in the industry in China.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Middle East, Russia, Nigeria and other countries.

PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
Customer Cases
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
Our Team
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
Shipping & Transportation
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
Exhibition
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder
Certifications
PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder PE Cold Tape Production Line with 160-200 kg/H Capacity for Pipeline Anticorrosion Wrap Using Polyethylene PE Material and Single-Screw Extruder

Thank you for your interest in Qingdao Huashida Machinery Co., Ltd. equipment.

For further details, please feel free to contact us at any time. Our team will respond promptly and provide a fully customized solution tailored to your specific requirements and project needs.
