Specifications
Pipe Diameter Range :
110-2200mm
Brand Name :
Huashida
Installed Power :
160-650kw
Packaging Details :
1200*230*260 cm
Computerized :
Computerized
Model Number :
110-2000mm
Supply Ability :
30 Units/Year
Screw No. :
Single-screw
MOQ :
1
Delivery Time :
60 Days
Payment Terms :
L/C,T/T,Western Union
Price :
US$117,000.00-585,000.00
Certification :
CE, ISO 9001:2008
Main Extruder Model :
SJ-75/33 to SJ-150/33
Place of Origin :
Qingdao, China
Automation :
Automatic
Description
HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe
This HDPE Jacket Pipe Casing Extrusion Line is a high-performance system engineered to produce durable protective casings for PUR (Polyurethane) foam pre-insulated pipe systems. Featuring dust-free planetary cutting technology alongside state-of-the-art vacuum calibration, this production line eliminates plastic dust and debris during the cutting stage - keeping the production environment clean while ensuring casing pipes meet rigorous international standards for thermal insulation and mechanical protection.
By integrating seamlessly into the (HDPE casing + PU foam) manufacturing workflow, our HDPE casing extrusion line delivers high-speed output while maintaining energy efficiency. The resulting pre-insulated pipe casing features superior anti-corrosion properties and high-precision diameter accuracy across a 110-2200mm pipe diameter range, essential for long-term underground and industrial service.
HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe
Product Parameters
Model Main Extruder Model Pipe Diameter Range (mm) Capacity (kg/h) Installed Power (kw) Length (m)
PE-110/500 SJ-75/33 110-560 250-350 160 26
PE-655/1380 SJ-120/33 600-1200 700-900 480 36
PE-960/1860 SJ-150/33 960-1680 1000-1200 580 45
PE-1155/2200 SJ-150/33 1155-2000 1350 650 45
PE-315/760 SJ-90/33 315-760 400-600 280 30
PE-450/960 SJ-100/33 450-960 550-800 380 33
PE-500/1155 SJ-110/33 500-1155 600-900 420 35
Note: All parameters are for reference only. They can be selected, matched, or modified according to customer-specific requirements to meet diverse production needs.
Production Line Composition & Process Flow
Key Equipment Configuration
As a core part of the (HDPE casing + PU foam) pre-insulated pipe production line, this HDPE extrusion line consists of the following key equipment (configurations can be customized):
  • 1 set of Vacuum Loader
  • 1 set of Hopper Dryer

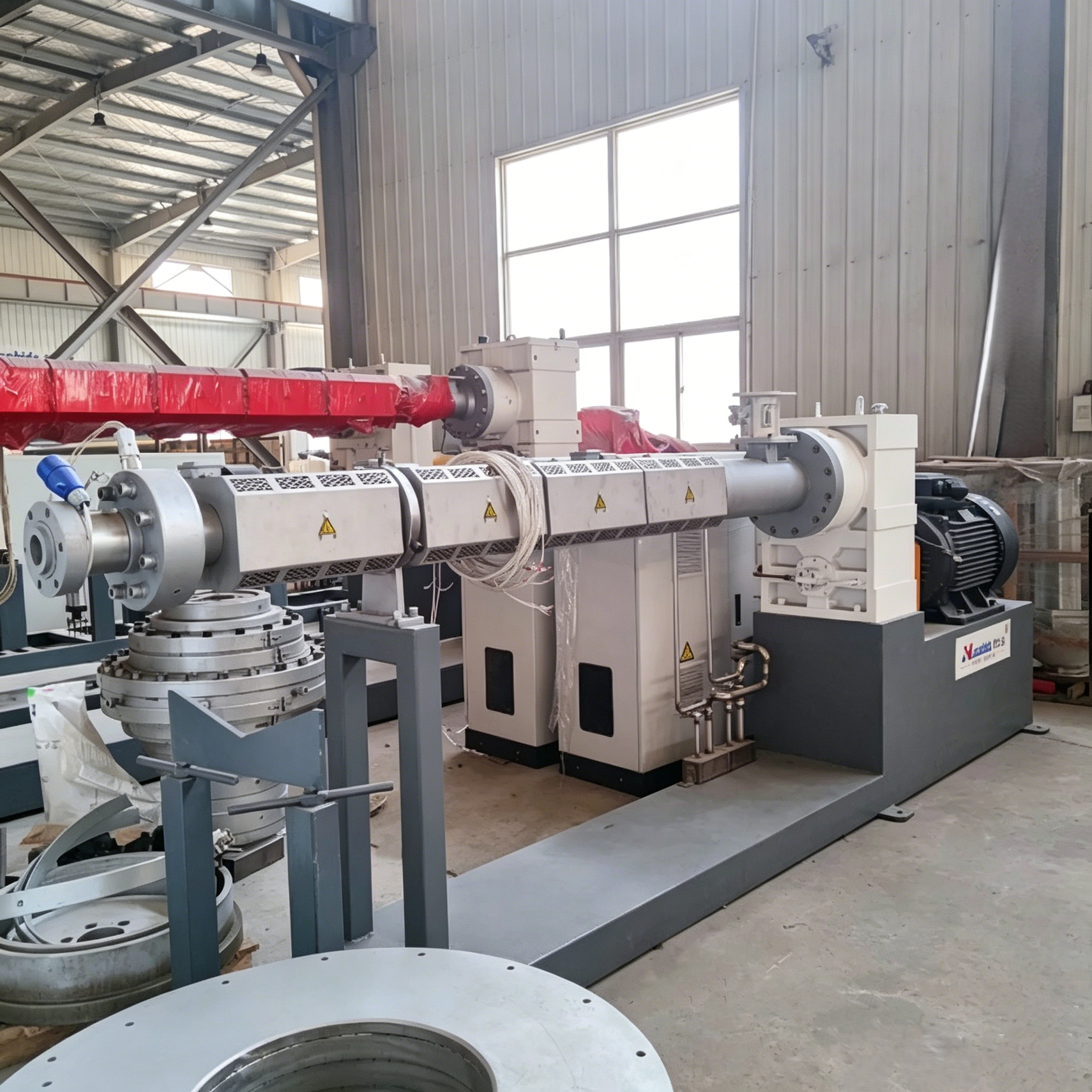

  • 1 set of High-efficiency Single Screw Extruder

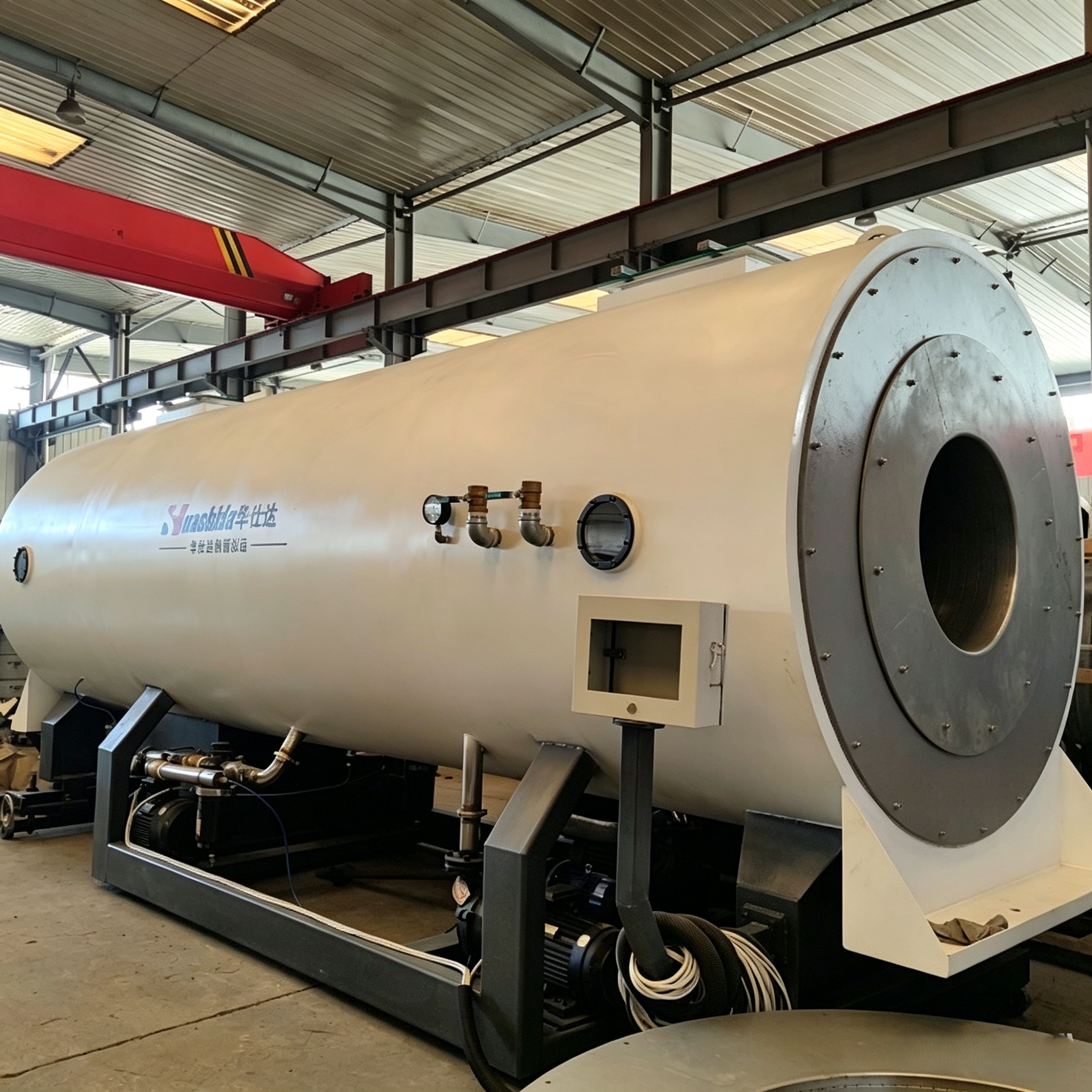

  • 1 set of Vacuum Calibration Table
  • 1 set of Water Spraying Tank

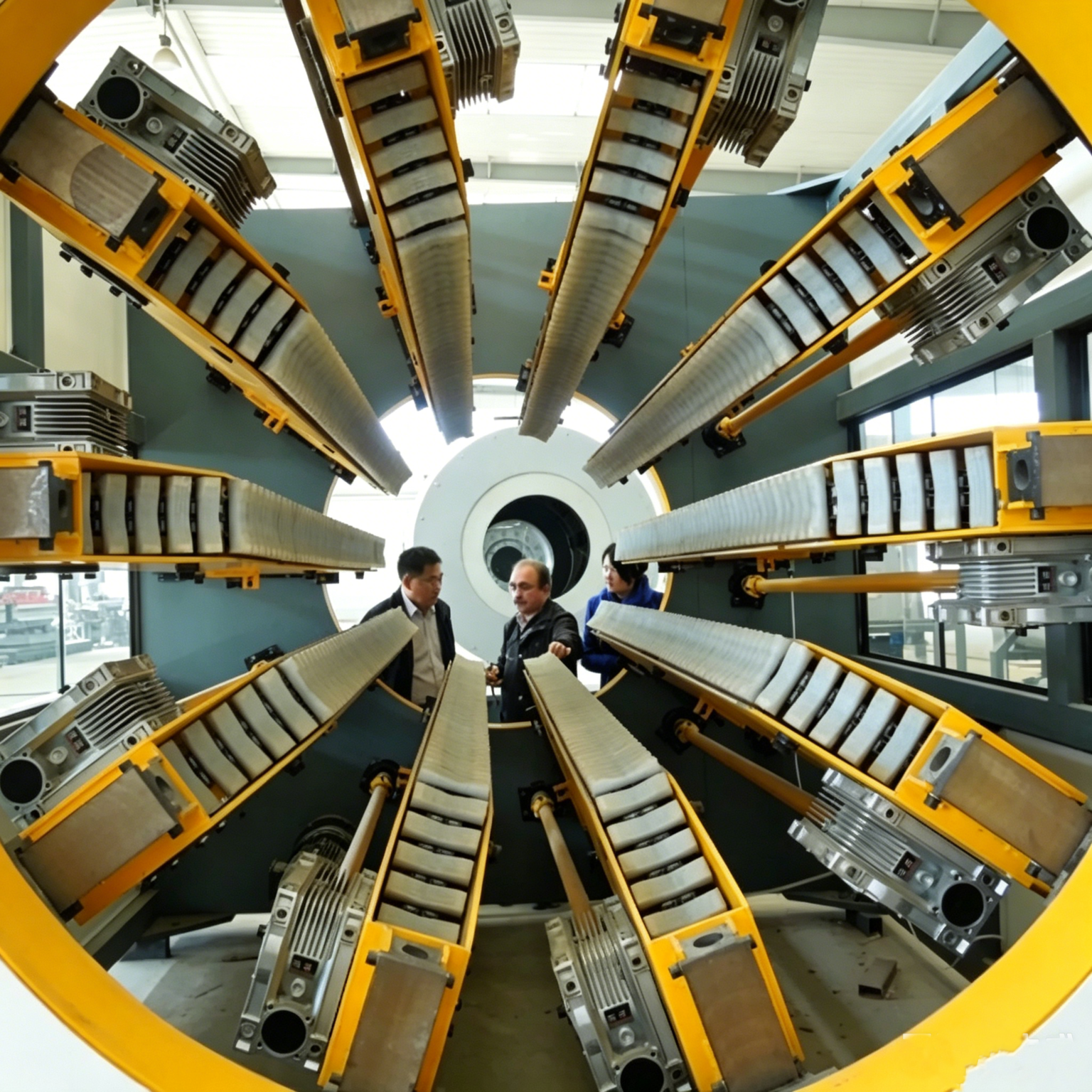

  • 1 set of Hauling Machine

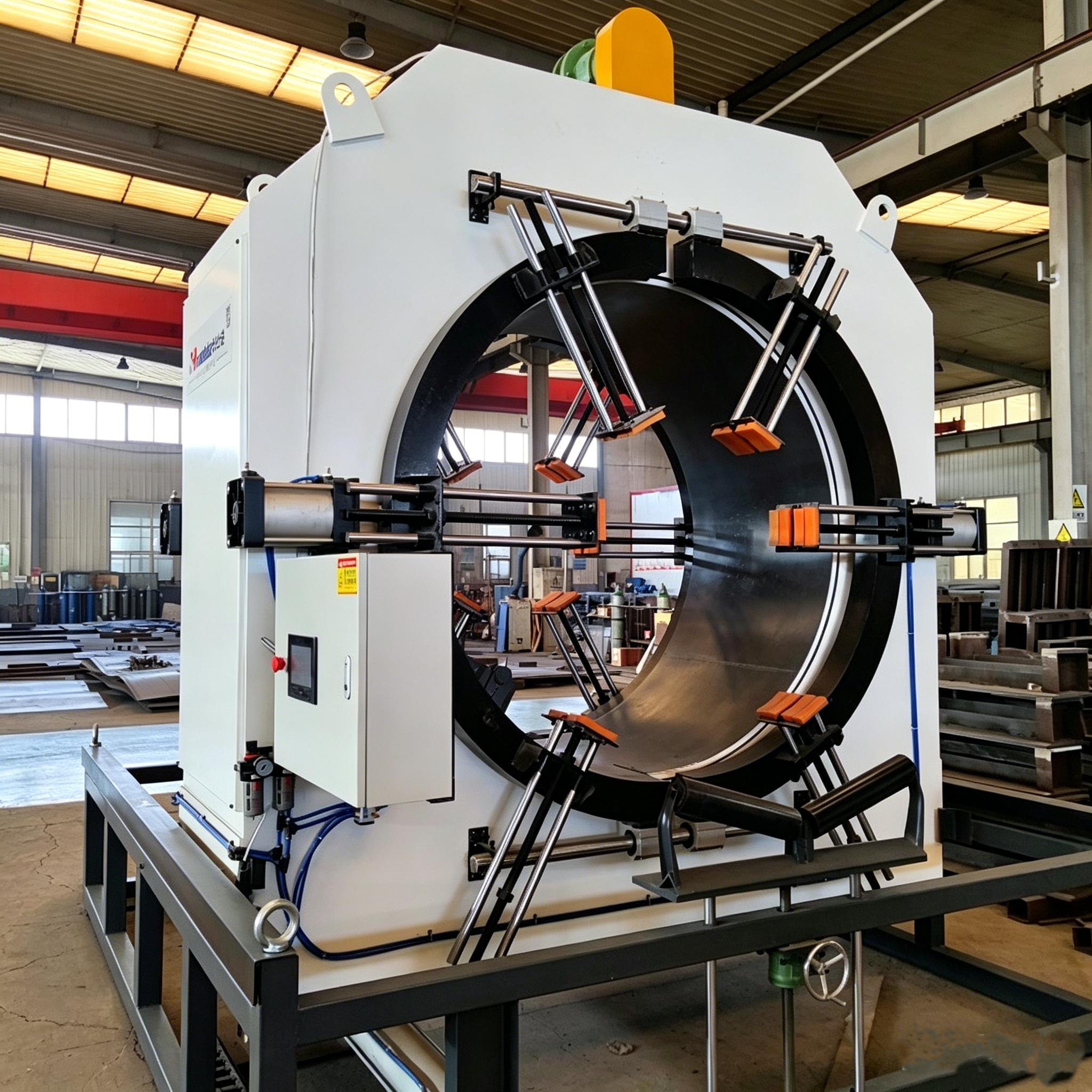

  • 1 set of Dust-Free Planetary Cutting Machine

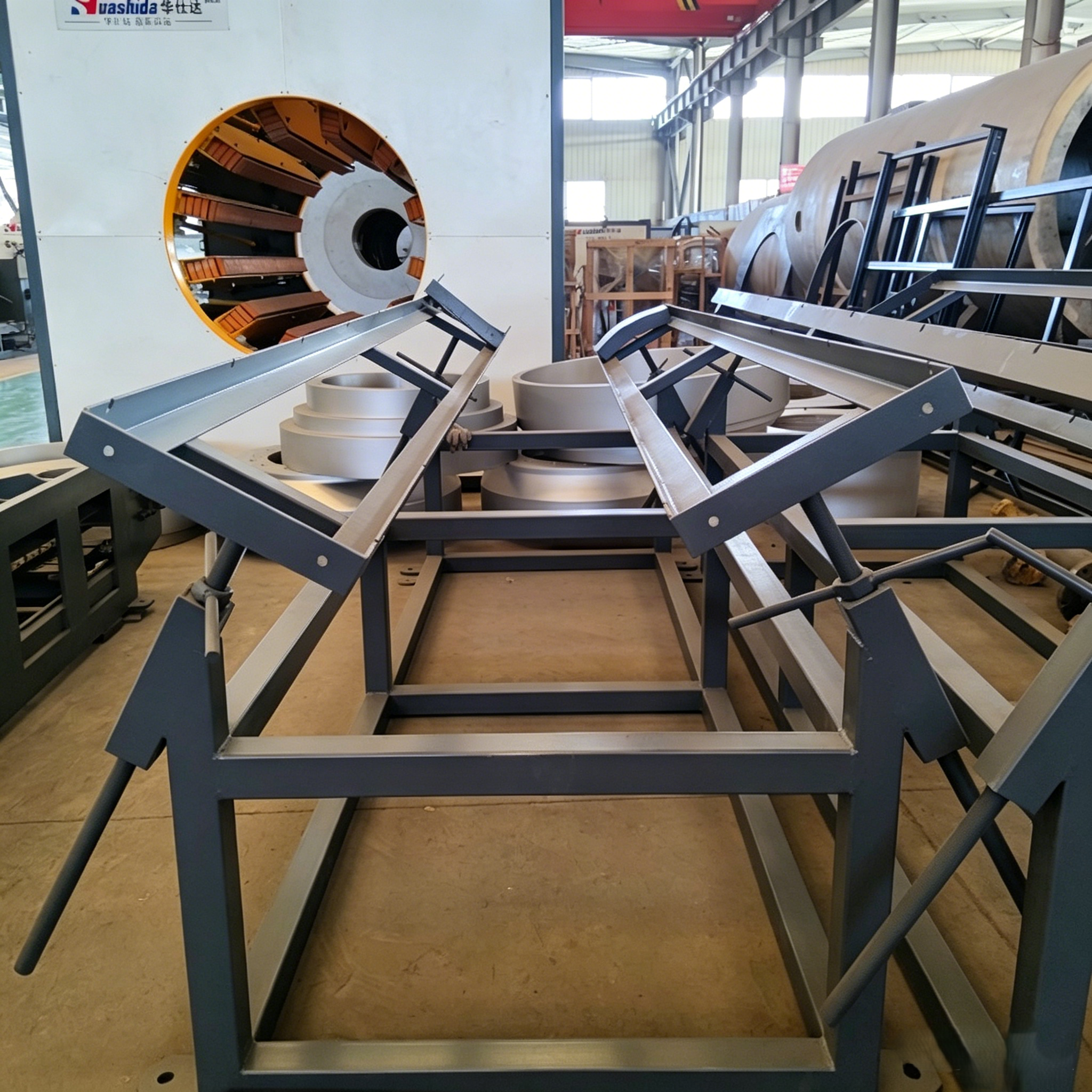

  • 1 set of Discharging Frame
All equipment operates in perfect coordination to ensure stable, efficient production of high-quality HDPE jacket pipe, matching the overall operation efficiency of the (HDPE casing + PU foam) pre-insulated pipe production system.
HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe
HDPE Jacket Production Process Flow
The production process is fully automated, simple to operate, and efficient, with the following steps:
  • Vacuum feeding of PE granules
  • Hot air drying of material
  • Extrusion plasticizing

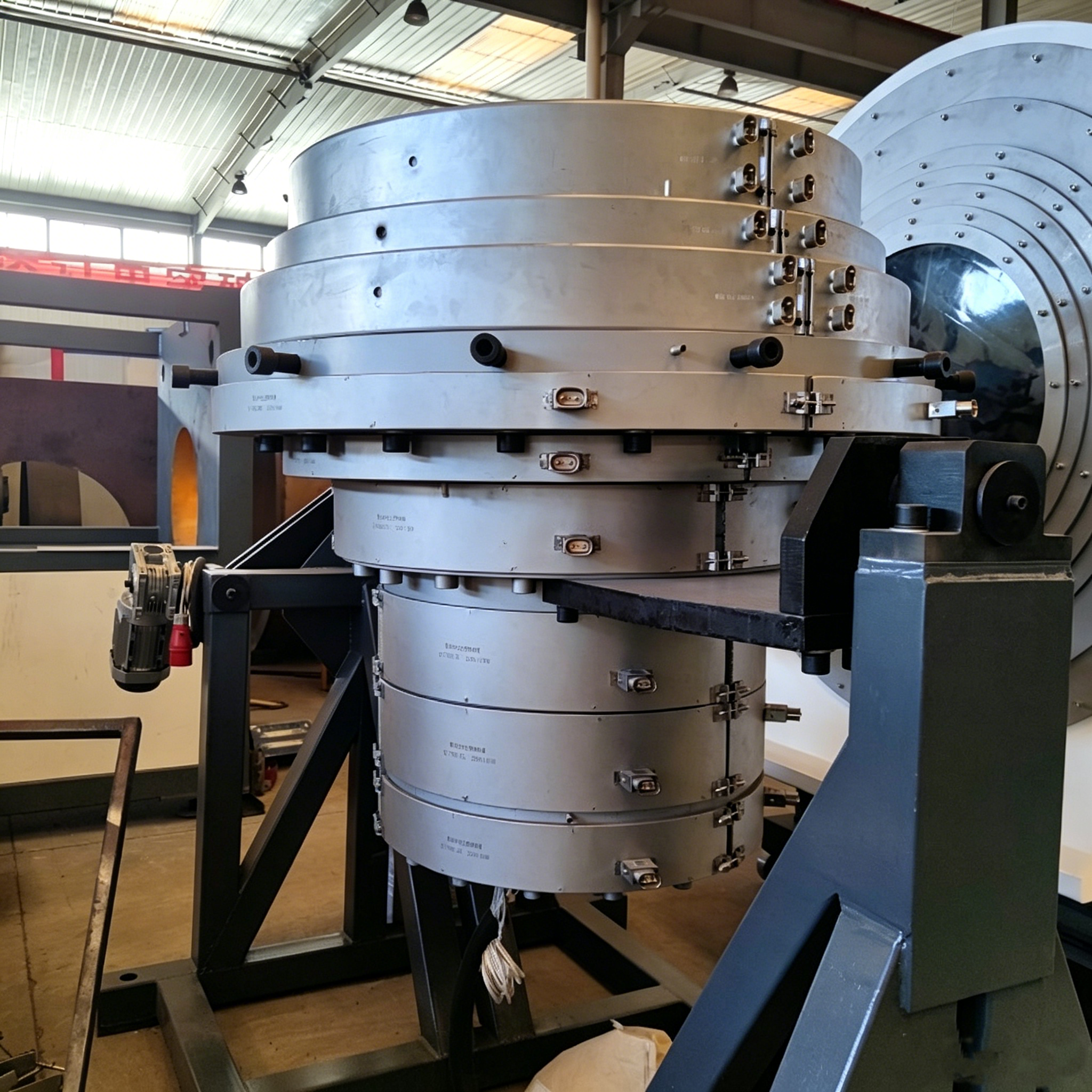

  • Mold shaping
  • Vacuum sizing/calibration
  • Water cooling
  • Pulling out
  • Dust-free cutting
  • Carrier laying-off pipe
The one-time forming process eliminates the need for edge trimming, reducing raw material waste and further improving production efficiency for this HDPE casing extrusion line.
Core Advantages (Equipment & Service)
Equipment Advantages
  • Dust-Free Cutting Technology: Eliminates plastic dust and debris during pipe cutting, reducing operator exposure and keeping the workshop environment clean.
  • Compact Size: Flexible deployment, suitable for various workshop venues, saving space.
  • High Automation Degree: Operable by a single person, significantly reducing labor costs and improving production efficiency.
  • Long Service Life: High-quality components and a well-designed system ensure low maintenance costs and long-term, stable operation.
  • High-Efficiency Extruder: Provides sufficient output and stable performance across the full 110-2200mm diameter range, perfectly matching the efficiency of the entire (HDPE casing + PU foam) pre-insulated pipe production line.
  • Superior Pipe Quality: Uniform wall thickness, smooth internal and external surfaces from vacuum calibration forming, precise diameter accuracy, and strong pressure resistance.
  • Cost-Saving: High raw material utilization rate, no waste, and one-time forming without additional trimming, reducing production costs.
Service & Technical Advantages
  • One-Stop Solution: Full-process services including design, installation, commissioning, and training for the (HDPE casing + PU foam) pre-insulated pipe production line.
  • Mature Experience: Extensive experience from 389 sets of HDPE jacket pipe production lines installed worldwide, with mature technology and strong implementability.
  • Professional Technical Team: 9 professional senior engineers specializing in dust-free HDPE casing extrusion and (HDPE casing + PU foam) pre-insulated pipe production technology.
  • Strong Technical Support: A high-end plastic machinery expert workstation in China, providing professional technical guidance and solutions.
HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe
Company Profile
Introduction
Founded in 2003, Qingdao Huashida Machinery Co., Ltd. is a leading manufacturer with 21 years of professional experience in pipeline anti-corrosion equipment and HDPE pre-insulated pipe production lines. We focus on delivering high-quality, patented equipment and one-stop solutions for global customers.
Core Strengths: We hold independent design patents and multiple international certifications (ISO9001, ISO14001, ISO45001, CE, ENC). Our main products cover HDPE jacket pipe casing extrusion lines (110-2200mm) with dust-free cutting capability, pre-insulated pipe production lines, and pipeline anti-corrosion materials & instruments.
Global Reach: Over 500 sets of our production lines have been exported to Russia, Kazakhstan, Iran, Nigeria, and other countries, earning wide global recognition.
Customer Support: We provide customized solutions and a professional after-sales team offering on-site guidance and online training to ensure stable equipment operation.
