Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes
Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes
Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes
Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes
Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes
Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes
Specifications
Certification :
CE, ISO9001:2008
Pipe Surface Preparation :
Shot Blasting
Price :
US$230,000.00-350,000.00
Packaging Details :
Standard Package
Total Power :
200-500KW
Supply Ability :
30 Sets
Coating Layers :
3 layers (FBE+Adhesive+Polyethylene)
Operating Mode :
Automatic/Manual
Payment Terms :
Western Union,L/C,T/T
Insulationmaterial :
Polyurethane (PU) foam
Delivery Time :
80 days
Usage :
Making 3lpe Coating Pipe
Velocity :
1 to 6 Meter Per Minutes
Pipe Cleaning Method :
Shot blasting
Brand Name :
huashida
Surface :
≥SA2.5
Coatingtype :
3-Layer Polyethylene (3LPE)
Place of Origin :
Qingdao
Coating Thickness :
1.8-2.7mm
Standard :
ASTM, GB, DIN
Adhesive Material :
Epoxy Resin
MOQ :
1
Heating Method :
Medium-Frequency Heating System
Description

Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes

3PE is a new anti-corrosion coating for steel pipes, which ingeniously combines Europe's 2PE anti-corrosion coating with the fusion-bonded epoxy (FBE) coating widely adopted in North America.

Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes

3-layer PE anti-corrosion coating consists of three layers:

  1. FBE (Fusion bonded epoxy) coating, FBE>100um
  2. Adhesive layer, 170~250um
  3. Polyethylene layer, 1.8~3.7mm

The three layers are integrated and firmly combined with the steel pipe to form an excellent anti-corrosion coating.

Application Steel pipe anti-corrosion coating
Applying coating type 3PE, 3LPE, 2PE, 2LPE, 3PP, 2PP, FBE
Type of steel pipe Seamless steel pipe, spiral steel pipe, straight seam steel pipe
Diameter range 38mm-4200mm

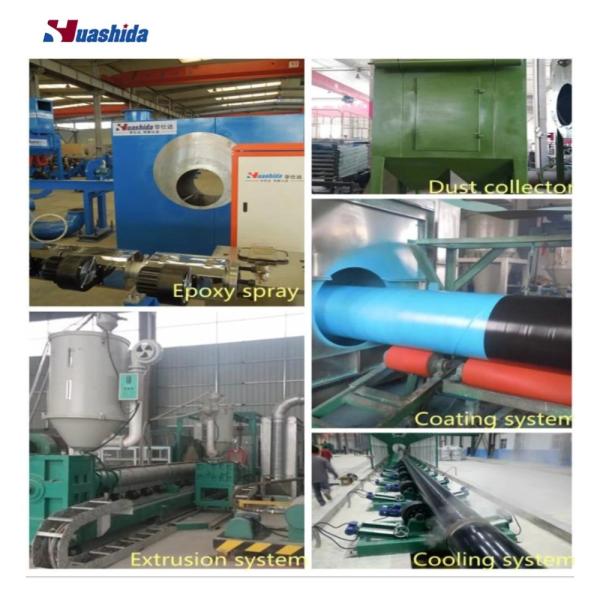

Main equipment Pipe conveyor, Shot blasting machine, Electrostatic spraying machine, PE&Adhesive extruder, Water cooling room, Pipe end beveling machine, Dust removal machine, PLC control system
Available for coating standards DIN30670-1991,21-2010,ISO21809-1-2009 SY/T 0413-2002,GB/T23257-2009, SY/T 0315-2002, AWWA C213-2001, ISO218909-2-2007and so on

Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes

Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes

Company Profile

Qingdao Huashida Machinery Co., LTD is a manufacturer with over 20 years of production experience specializing in plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials.

Our Main Products
  • HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
  • Rigid pre-insulated pipe Production Line
  • Flexible pre-insulated pipe (PERT) production line
  • Steel pipe FBE/3LPE/3LPP anti-corrosion coating line
  • Steel pipe derusting line (Shot and sand blasting)
  • PE pressure pipe/Water Gas supply pipe production line
  • PP/PE plastic board/sheet/geomembrane production line
  • NBR PVC Thermal insulation tube/plate production line
  • Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod

We maintain strong commitment to research and development, collaborating with prestigious institutions including Tsinghua University, Beijing University of Chemical Technology, and South China University of Technology. By integrating advanced domestic and international technologies, we rank among the top three manufacturers in our industry in China.

Our global reach extends to more than 400 overseas customers, with exports to Kazakhstan, Uzbekistan, Middle East, Russia, Nigeria, and numerous other countries.

Factory Overview
Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes
Our Team
Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes
Delivery
Three-Layer Polyethylene (3PE) Anti-Corrosion Coating System for Buried Steel Pipes
