PP PE PMMA PET Recycling granulation Machinery pelletizing machine.
Plastic Recycling Machine.
PP PE Film Two Steps Pelletizer Production Line Machine.

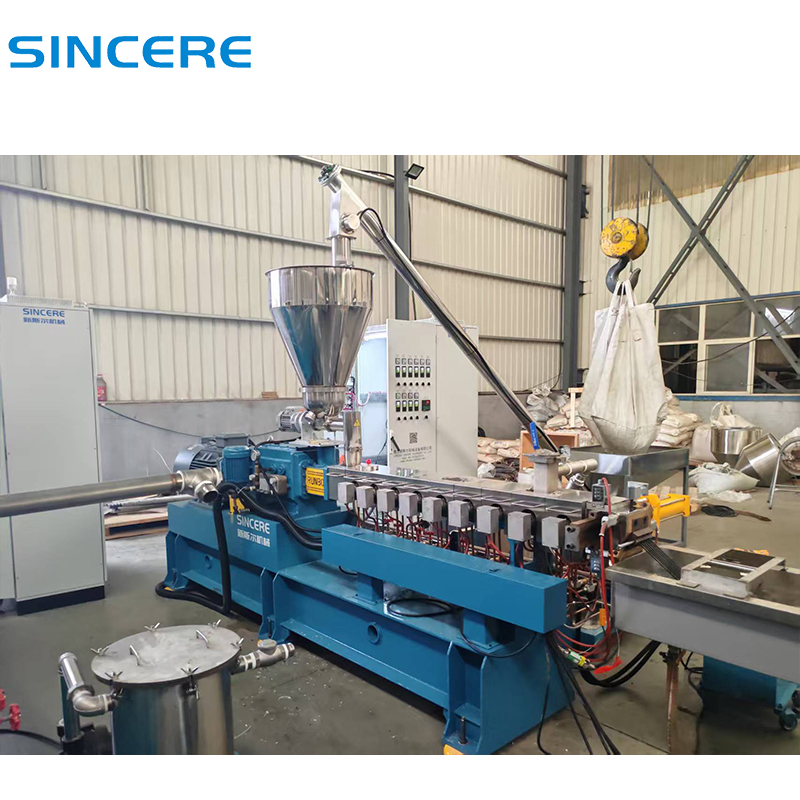

1. Draw pelletizing production line for PP PE PMMA PET PS ABS PA, PVC, PC, POM, EVA, PMMA.
This pelletizing extruder has the special screw design and different configuration, it is suitable for the recycling and pelletizing of raw materials such as PP, PE, PET, PS, ABS, PA, PVC, PC, POM, EVA, PMMA and the pelletizing of the raw materials with different colors. The gearbox is high torque designed which attains the functions of low noise and stable operation. The surface of the screw and barrel has been special treated so that the screw and barrel are wearable, they can have a very good plastification and mixing effect and the production capacity is high. The extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so that the output can be more stable and the pellets are more dense.

Model	Screw dia. (mm)	L/D	Screw speed max. (rpm)	Main motor power (kw)	Output (kg/h)
XSSP45	45	25-36	20-120	5.5-11	18-40
XSSP65	65	25-36	20-120	15-37	40-90
XSSP90	90	25-36	20-95	37-75	100-250
XSSP120	120	25-36	20-80	55-110	250-380
XSSP150	150	25-36	20-80	110-160	300-450
XSSP180	180	25-36	20-80	180-250	400-650

2.

PP/ PE Water ring recycling pelletizing line
It has advanced technology,It has the best quality and the lowest price.
This machine is equipped with gearbox specially-designed for hard tooth face ; 38CrMoALA nitrided screw and barrel; non-stop screen-changer, cooling water tank, blower fan, hob-style granule-cutter. It is suitable for the recycling and pelletizing of PP, PE, PS, PET, ABS, PC, PVC, ect.

Main technical parameters:

Model	Screw diameter	Aspect Ratio	Screw speed	Main motor power	Production capacity
XSZL45	45	25-36	20-120	5.5-11	18-40
XSZL65	65	25-36	20-120	15-37	40-90
XSZL90	90	25-36	20-95	37-75	100-250
XSZL120	120	25-36	20-80	55-110	250-380

3.

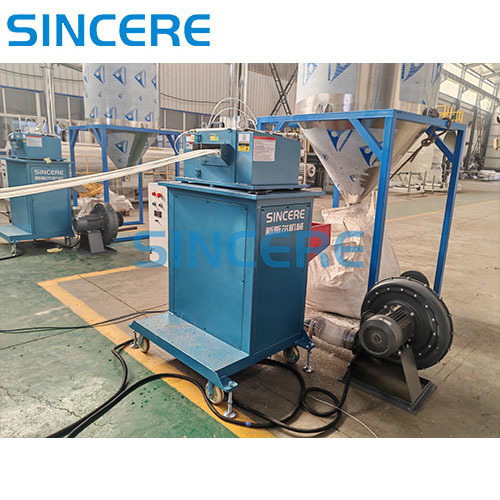

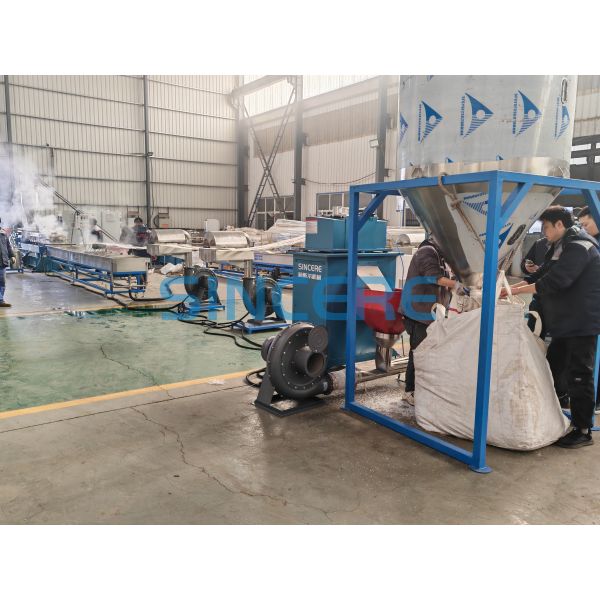

Two Steps Pelletizer Production Line

This machine is used to pelletizing recycled material;
Screen exchanger will make sure the extruded granule is purity;
The raw material can be PE/PP/PS/ABS scrap;
Machine consists of:
1,Two sets of single screw extruder
2,Die and Mould
3,Cooling Sink
4,Pelletizer
5,Fetch water device
6,Hydraulic pressure station
7,Pressure sensor
8.Automatic control system
9,Spiral feeding machine
The capacity can be 200-800kg/h according requirement;
