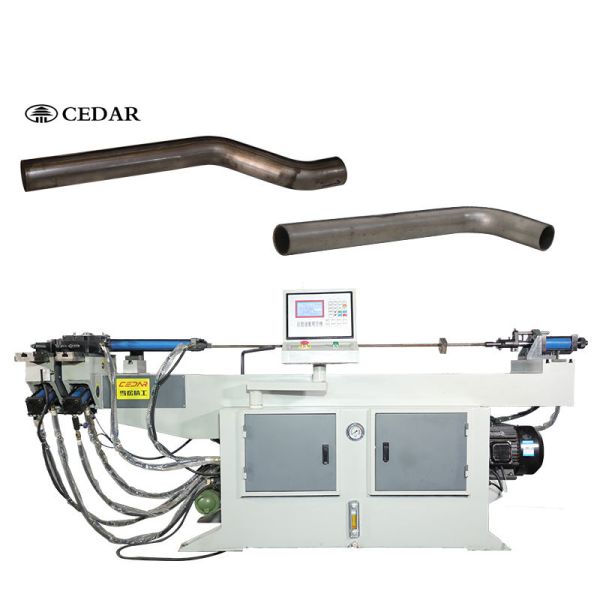

China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
Specifications
material / metal processed :
Alloy, Brass / Copper, Carbon Steel, Stainless Steel, PVC, Aluminum, Plastic, metal
bending radius (mm) :
15 - 250
max. bending angle (deg) :
190
bending precision (deg) :
±0.1
Place of Origin :
Jiangsu, China
Brand Name :
CEDAR
automation :
semi-automatic
extra services :
Swaging
power (kw) :
5.5
weight (kg) :
1100
warranty :
1 Year
key selling points :
Competitive Price
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
Bearing, Motor, Pump, PLC, Other, Automatic
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
bending machine
Application :
Bent metal workpiece
Power :
5.5kw
Maximum bending radius :
250
Maximum bending angle :
185°
Each pipe can set the number of elbows :
16
Maximum hydraulic pressure :
15MPa
Machine size :
3200*850*1030mm
PLC :
Mitsubishi
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company
Showroom Location :
None
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Year :
2020
MOQ :
1 set
Price :
$3,207.60-3,572.10 / set
Description
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

Product features:

NC pipe bender is controlled by microcomputer

It has manual control, semi-circular control and full automatic control

Overload automatic protection

Automatic detection of machine failures and operational failures

5, mobile foot switch has urgent stop function

The screen shows the touch button

Automatic memory function

Power failure automatic protection function.

project

unit

SB-50NC

Max. Capacity OD x WT (Mild Steel)

mm

Φ50*2.0

Bending radius of 1.5D as an example

mm

Φ44.45*3.0t

The largest applicable stainless steel pipe

mm

Φ44.45*2.0t

Maximum core length

mm

2210

Maximum bending radius

mm

250

Maximum bending angle

°

185°

Each pipe can set the number of elbows

One

16

Maximum hydraulic pressure

MPa

15

Motor Power

kw

5.5

Pump displacement

L

23

Machine weight

kg

1100

Machine size (L × W × H)

mm

3200*850*1030
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine
China Factory 63NC Hydraulic Tube Bender Pipe Bending Machine

1.Q: Are you a manufacturer or a trading company?

A: we are a direct marketing company. Cedar is our trademark. We do pipe processing machinery.

2. Q: how do you choose your machine

A: you must tell us the following details

How much control do you want to bend

How much the thickness

What material

How much is bent

Of course, there are drawings.

3.Q: what about your machine quality and after-sales service?

A:Our company quality assures safety is the first, many old customers, the after-sale service is the service for you wholeheartedly.

4.Q: where did your factory get there?

A:Our factory is located next to zhangjiagang city (Shanghai) under the jurisdiction of suzhou city. You can fly directly to Shanghai hongqiao airport or PVG airport. You are welcome to visit our humble home.
