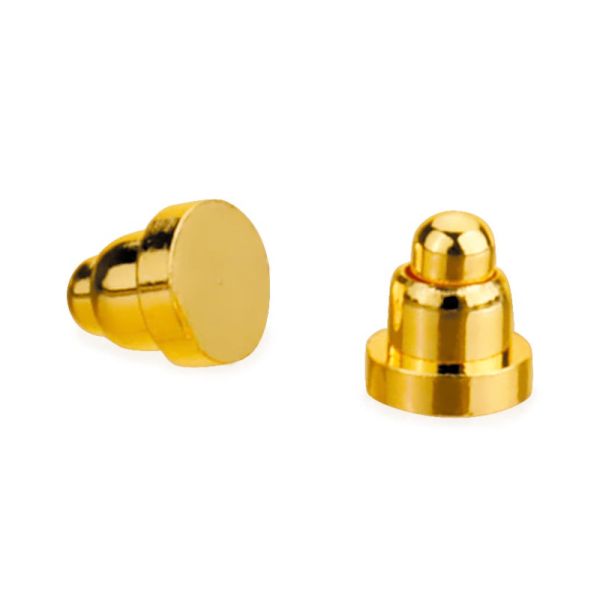

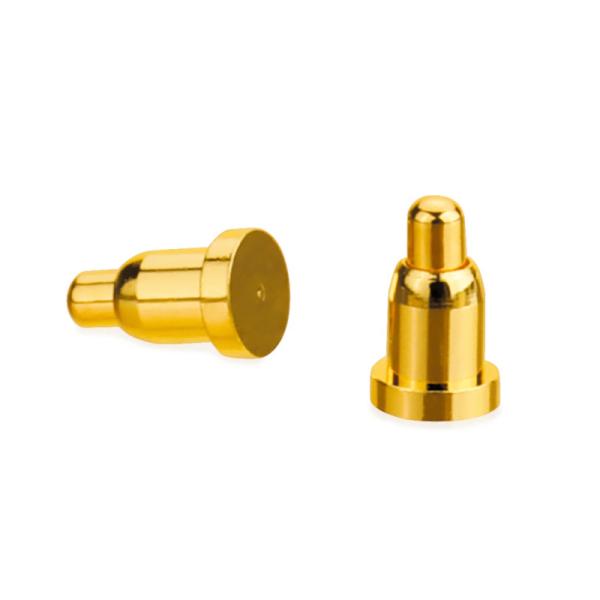

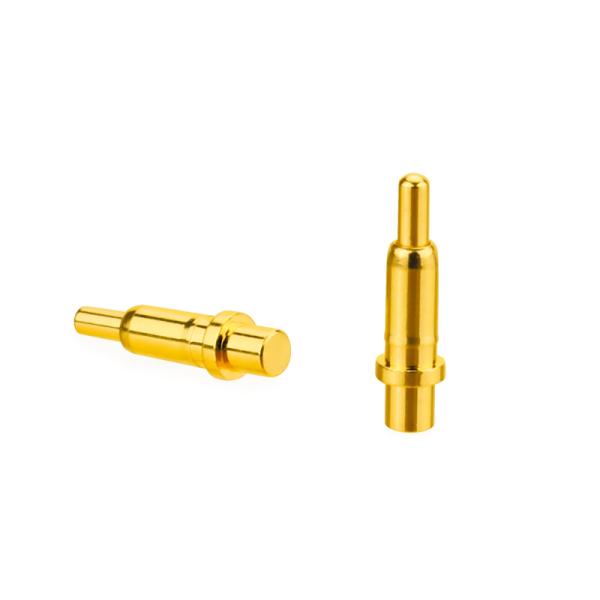

2.54mm Spring Loaded POGO Pin 5V 2A Gold Plated 4 Pins Magnetic Pogo Pin Connector
2.54mm Spring Loaded POGO Pin 5V 2A Gold Plated 4 Pins Magnetic Pogo Pin Connector
Specifications
Brand Name :
TX
Certification :
ICAS ROHS ULS GS REACH
Place of Origin :
China
MOQ :
30K
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000Kpcs
Delivery Time :
17-22 Days
Packaging Details :
Vacuum Reel/ PVC Bag
Product Name :
spring loaded pin
Connector type :
Male Pogo Pin
Application :
Bluetooth headset charging pin, PCB
Finish process :
Electroplated gold
Service :
Customized OEM
Size :
Customized
Cycle life :
10000~1000000 times
Plunger plating :
Gold Plating Over Nickel Plating
Description

Customize Length 4 Pin Pitch 2.54mm 5V2A 12V 2A Gold Plated Single Row SMT Pogo pin

Application
① Contact Probes for semiconductor tests Contact Probes for inspection measuring instruments, electronic component inspection sockets, wafers and printed circuit boards. Also known as Spring probes, Probe Pins, and Pogo Pins.

② Products for consumer / industrial equipment, Spring-loaded Connectors Spring-loaded Connectors for smartphones, laptops, devices, wearable terminals, cameras, battery connections, and POS terminals. Also known as Pogo Pins, and Pogo Pin Connectors.

  • Long service time, 10,000 times
  • No tooling fee, easy go customize
  • Adjustable and measurable spring force
  • Fine pitch
  • Flexible manufacturing ways: SMT, plug-in...
  • Save space: help mechanical engineer easily allocate components on PCB
  • Good performance on RF solution
  • RoHS and Halogen Free
Material Brass(C3604)
Color Gold
Size Depends on customers' requirements
Type SMT, per customers' demand
Plated Gold palted from 2 to 40U", can customized
Cycle life 30,000 ~100,000 times
Contact resistance 50m Ohm Max.
Salt fog 48H
Rated current&voltage 2A~40A / 12V, can be customized
Applications PCB,power ,charging equipments
Certificate ISO9001/ROHS/REACH
Packing 1000pcs/PE bag(or according to customer requirements)
Payment Term T/T,30% Deposit,70% Balance
Payment method T/T,PayPal,
Freight Air,Sea,Express
Sample Lead Time Inventory sample 1-3 days /customizd sample 3-7days
Production Lead Time 5-15 working days, or depend on order quantity
Made For America,Europe,Asia,South African
Trade Term EXW,FOB,CIF
Service High quality with reasonable price.
OEM serivce, any special size, color, designs are acceptable.
Original sample can be re-made.

Characteristics:

1. Female pogo pin connector, male pogo pin connector,

2. Free samples with high class precision, 0.01mm precision

3. High recycling, Large Current ,Low MOQ, Low-Resistance

4. Standard & Non-Standard Pogo pin connector

5. OEM / ODM , Can be custom Designed

6. One Row, two rows, three rows

7. Surface Mount Soldering, Double Head, Flat Head

8. Water proof

Structure Ball beads structure Sloping structure Perforated structure Claw structure
Contact impedance ≤ 10mΩ ≤ 30mΩ ≤ 50mΩ ≤ 5mΩ
Long service time 10000+ 10000+ 10000+ 500+
Recommended working current 10A max 10A max 10A max 10A max
Main application areas Mainly used for charging and condition with certain requirements for vibration and shock Mainly used for charging or signal transmission of Consumer electronics Mainly used for signal transmission or grounding antenna,etc. Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles.
Remarks The beads increase the internal contacts,the contact is more stable,and the more needle space is required The most commonly used structure on the market The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging The needle and the needle tube have multiple contacts to increase the contact stability

How to place the order
* You send us drawing or sample

* We carry through project assessment

* We make the sample and send it to you

* You think the sample is good then place an order and pay us 30% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to courier company

Material
Stainless Steel SS201, SS301, SS303, SS304, (SS304 FOOD GRADE), SS316, SS316L, SS416 etc.
Steel Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc
Brass HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc
Copper C11000,C12000,C12000 C36000 etc
Aluminum AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc
Iron A36, 45#, 1213, 12L14, 1215 etc.
Plastic ABS, PC, PE, POM, Delrin, Nylon, plastic, PP,PEI, Peek etc.

Surface Finish
Aluminum parts Stainless Steel parts Steel Plastic
Clear Anodized Polishing Powder Coated Painting
Color Anodized Polishing Zinc plating Chrome plating
Sandblast Anodized Passivating Oxide black polishing
Chemical Film Sandblasting Nickel plating Sandblast
Brushing Laser engraving Chrome plating Laser engraving
Polishing Carburized
Chroming Heat treatment

2.54mm Spring Loaded POGO Pin 5V 2A Gold Plated 4 Pins Magnetic Pogo Pin Connector2.54mm Spring Loaded POGO Pin 5V 2A Gold Plated 4 Pins Magnetic Pogo Pin Connector2.54mm Spring Loaded POGO Pin 5V 2A Gold Plated 4 Pins Magnetic Pogo Pin Connector2.54mm Spring Loaded POGO Pin 5V 2A Gold Plated 4 Pins Magnetic Pogo Pin Connector
