PH1.27mm Female Header Dual Row Y Type Terminal Au flash Vertical Height=4.6MM Consumer Components

What is a PCB Connector?

Printed Circuit Board connectors are connecting systems, which are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. As PCBs are not hard-wired to each other and can be assembled later in a production process, providing an easy method of Design for Manufacture.

PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments: Parallel or mezzanine – both connectors are vertical orientation;90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors are known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. There are also some other names for PCB connectors: Male PCB Connectors usually referred to Pin Headers, as they are simply rows of pins, while Female PCB Connectors named as Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.

Specification:

Why Choose CNJWY

Research and Development Capability:

Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.

OEM/ODM Producing

CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.

Quality Guarantee

Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.

Competitive Price

More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.

Product Application:

Male pin header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team

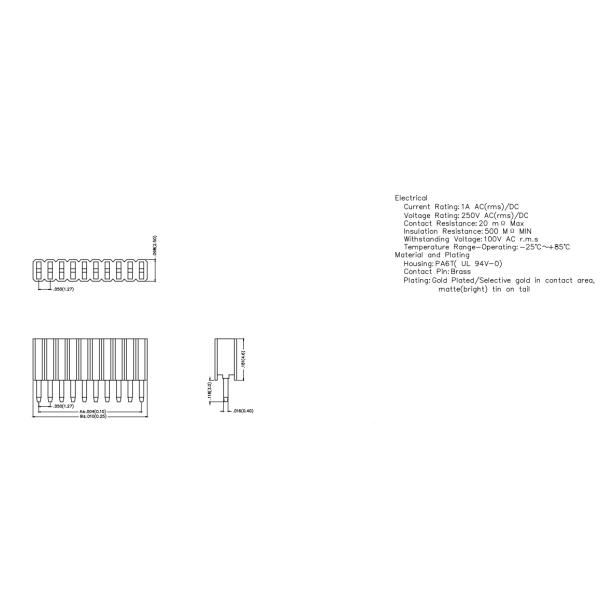

Drawing:
