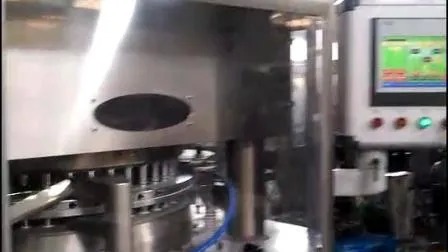

GZPS660 High Speed Rotary Tablet Press Machine with SGS CE Certification and Double Press Rollers

Specifications

MOQ :

Price :

Welcome to consult

Brand Name :

Tianfeng

Model Number :

GZPS660

Certification :

CE ISO

Place of Origin :

SHANGHAI, CHINA

Delivery Time :

30-45 working days

Packaging Details :

export plywood case

Model NO. :

GZPS660

Voltage :

380V

No. of Stations :

45, 55, 75

Max. Tablets Output :

405000, 495000, 675000 pcs/hour

Max. Pressure :

100 kN

Max. Pre-pressure :

20 kN

Max. Tablet Diameter :

Round tablet: 25, 16, 13 mm; Special shaped tablet: 25, 19, 16 mm

Max. Filling Depth :

20 mm

Max. Tablet Thickness :

8 mm

Max. Turret Speed :

75 1/min

Main Motor Power :

11 kW

Machine Height :

1850 mm

Host Dimensions :

1704*1380*1926 mm

Control Cabinet Dimensions :

750*550*1750 mm

Machine Net Weight :

Host: 3980 kg; Control Cabinet: 240 kg

Description

Applications

This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.

Features

High speed with large quantity punches, double press rollers, suitable for mass production.
Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
Three impellers type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
Reliable electronic control system, advanced control principle, and reliable imported components ensure the selection of various programs and interlocking protection functions. The control system can accurately monitor the entire production process.
The first waste rejection controller, the rotary encoder, the pressure sensor, the waste solenoid valve, etc. can be used to eliminate the unit of the waste sheet in the state of the tablet.
The gap type small flow quantitative automatic pressure lubrication system is equipped with a high-precision central lubrication pump, which not only ensures sufficient lubrication of the punch and the track, but also solves the problem of contaminating the tablet with oil. The progressive sealed semi-automatic grease lubrication system ensures the Fat lubrication is clean, convenient and reliable.
Special oil proof, dust proof and noise proof design.

Note

GZPS660 Model adopt advanced operation system and tablet weight control system, adjust each operation parameter (main pressure, pre-pressure and filling depth) easily without handwheel. Effective detecting and adjusting for tablet hardness and weight is achieved.
GZPS660 Model can record all the process parameters for each production batch, it is convenient for operator to control the machine. Technical parameter

Model		GZPS-45	GZPS-55	GZPS-75
No. of Stations		45	55	75
Max. Tablets output (pcs/ hour)		405000	495000	675000
Max. Pressure (kN)		100	100	100
Max. Pre-pressure (kN)		20	20	20
Max. Tablet Diameter (mm)	Round tablet	25	16	13
Max. Tablet Diameter (mm)	Special shaped tablet	25	19	16
Max. Filling Depth (mm)		20	20	20
Max. Tablet Thickness (mm)		8	8	8
Max. Turret Speed (1/min)		75	75	75
Main Motor Power (kW)		11	11	11
Height of the Machine (mm)		1850	1850	1850
Overall size (mm)		Host 170413801926 Control Cabinet 7505501750
Machine Net Weight(kg)		Host 3980 Control Cabinet 240
