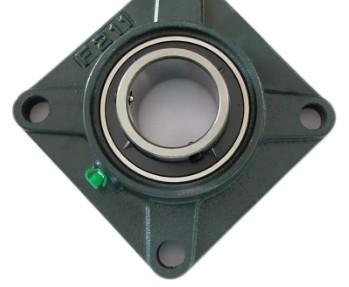

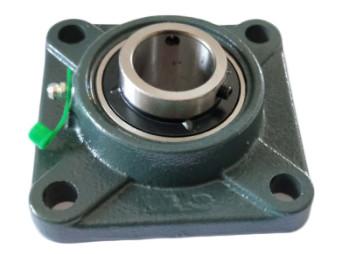

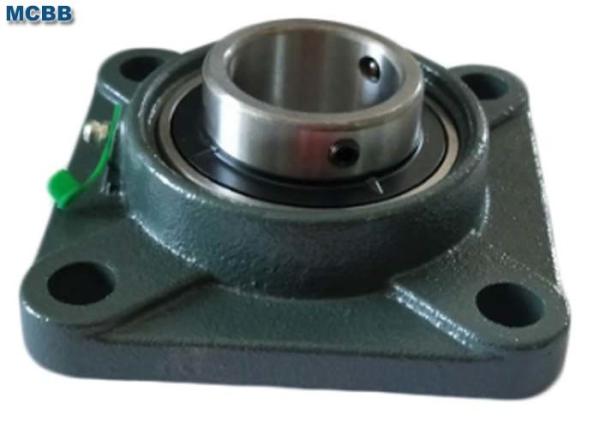

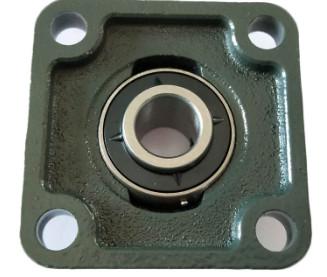

Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211
Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211
Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211
Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211
Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211
Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211
Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211
Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211
Specifications
Brand Name :
MCBB/ Customization/ Any famous brand
Model Number :
UCFCS211
Certification :
ISO90001:2008
Place of Origin :
Jiangsu China
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB
Supply Ability :
30,0000pcs/month
Delivery Time :
Within 7days after confirmation
Packaging Details :
1pc/plastic bag+ single color box+ carton + plywood pallets
Product Name :
pillar block bearings UCFCS211
Housing No. :
UCFCS211
Weight :
3.5kgs
Inner diameter :
55mm
Outer diameter :
162mm
Thickness :
162mm
Description

Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211

UCFCS211 Description,

The outer spherical bearing is spherical (universal rotation) bearing has the function of adjusting the center. When the new bearing product leaves the factory, the bearing and the bearing housing are not adjusted, which is a normal phenomenon. It can be corrected during installation and use.

Specification, split housing pillow block bearings,

Bearing Unit

Dimensions(mm)

Bearing No.

Housing

Housing

NO.

No.

Wt (kg)

　

a

p

e

i

s

j

k

g

f

z

Bi

n

　

　

UCFCS211-32

162

137

96.9

7

14

16

11

25

114

39.8

55.6

22.2

UC211-32

FCS211

2.72

UCFCS211-33

UC211-33

UCFCS211-34

UC211-34

UCFCS211-35

UC211-35

UCFCS211

UC211

UCFCS211 Feature, installing pillow block bearings,

1. Shaft fastening: 2 grub screws, inner ring extended on both sides.

2. Material: ultra clean AISI 52100 chrome steel

3. It is suitable for high loads and speeds, also in case of alternating direction of rotation.

4. Grease: Chevron SR1-2 or food industry FM222

5. Working Temperature range: -20°C to +120°C celsius

Why us?

NO MOQ, 1pcs is ok. Supporting 7days refund.

More model bearings,

Model NO. (Pillow block bearing)

Length(mm)

Width(mm)

Thickness
(mm)

Weight(kg)

UCP201

127

38

60.7

0.76

UCP202

127

38

60.7

0.74

UCP203

127

38

60.7

0.72

UCP204

127

38

64

0.7

UCP205

140

38

69.5

0.76

UCP206

160

44

82

1.25

UCP207

167

48

92

1.55

UCP208

180

52

98

1.9

UCP209

189

54

106

2.2

UCP210

204

57

112

2.75

UCP211

217

60

125

3.3

UCP212

238

66

137

4.7

UCP213

262

70

149

5.6

UCP214

266

72

155

6.6

UCP215

274

74

162

7.3

UCP216

292

78

174

9

UCP217

310

83

186

10.8

UCP218

326

88

198

13

UCP220

380

95

225

16

Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211

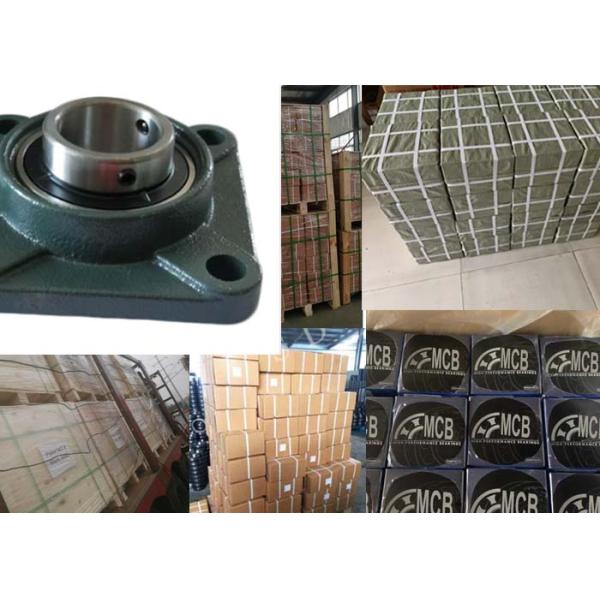

Pillow Block Ball Bearing Package,

1. Neutral industry package, single PP bag+signle color box+ hardness outer carton+ Pallet.

2. Per customer's require to packing.

3. Encomic Package, 5pcs/carton+Pallet

Anti Rust Housings Pillow Block Ball Bearing Low Friction UCFCS211

Action now, welcome contact us for price list. The following is our 24hours in service. Welcome to be our " VIP' customer to enjoy more special prices.
