SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings
SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings
SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings
SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings
SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings
SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings
SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings
SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings
Specifications
Brand Name :
MCBB/ Customization
Model Number :
SSBFL205
Certification :
CE
Place of Origin :
Jiangsu China
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C, , T/T, Western Union, MoneyGram, Paypal, Direct RMB, Payment online by credit card, Direct RMB from aborad
Supply Ability :
30,0000pcs/month
Delivery Time :
Within 7days after confirmation
Packaging Details :
1pc/plastic bag+ single color box+ carton + plywood pallets
Product name :
SSBFL205-16 high temperature pillow block bearings
Inner Diameter :
25mm
Outer Diameter :
52mm
Width :
75mm
Weight :
0.27kg
Cage :
J steel security stamping
Description

SSBFL205 White Color Housing Stainless Steel Ball Bearing, Sealed Pillow Block Bearings


High temperature pillow block bearings, Description,

1. Factory Direct Sales Stainless Steel Bearing SSBFL205-16 with Open Cover and Oil Seal.

2. Outer spherical bearing with seat can work under the condition that two bearing seats have different shafts, and the maximum automatic adjustment angle can reach 2 °.


3. Outer spherical bearing with seat has good rotation accuracy; it can be easily relubricated. The clearance is larger than the deep groove ball bearing of the same size, so the temperature difference has less influence on its accuracy.


Type e pillow block bearing, Specification,

Model Old Model Ineer Diameter Outer Diameter Width Weight
SBPFL205-16 - 25.4 95 76 0.28
SBPFL205-15 - 23.812 95 76 0.28
SBPFL205-14 - 22.2250 95 76 0.28
SBPFL205 - 25 95 76 0.28
SAPFL205-16 CL390205-16 25 95 76 0.32
SAPFL205-15 CL390205-15 23.81 95 76 0.32
SAPFL205-14 CL390205-14 22.2250 95 76 0.32
SAPFL205 CL390205 25 95 76 0.32


Split housing pillow block bearings, Feature,

Anti-rust, preservative

Why choose mcbb bearing?

With us your money in safe, your business in safe.

More bearing model for reference,

Bearing Number Shaft dia d(mm) H(mm) L(mm) L1(mm) A(mm) J(mm)
SSBFL 201 12 113 60 66 25.5 90
SSBFL 202 15 113 60 66 25.5 90
SSBFL 203 17 113 60 66 25.5 90
SSBFL 204 20 113 60 66 25.5 90
SSBFL 205 25 130 68 73 27 99
SSBFL 305 25 150 80 84 29 113
SSBFL 206 30 148 80 84 31 117
SSBFL 306 30 180 90 94 32 134
SSBFL 207 35 161 90 94 34 130
SSBFL 307 35 185 100 104 36 141
SSBFL 208 40 175 100 104 36 144
SSBFL 308 40 200 112 118 40 158
SSBFL 209 45 188 108 113 38 148
SSBFL 309 45 230 125 132 44 177
SSBFL 210 50 197 115 120 40 157
SSBFL 310 50 240 140 144 48 187
SSBFL 211 55 224 130 134 43 184
SSBFL 311 55 250 150 154 52 198
SSBFL 212 60 250 140 144 48 202
SSBFL 312 60 270 160 164 56 212
SSBFL 213 65 258 155 157 50 210
SSBFL 313 65 295 175 186 58 240
SSBFL 214 70 265 160 163 54 216
SSBFL 314 70 315 185 196 61 250
SSBFL 215 75 275 165 168 56 225

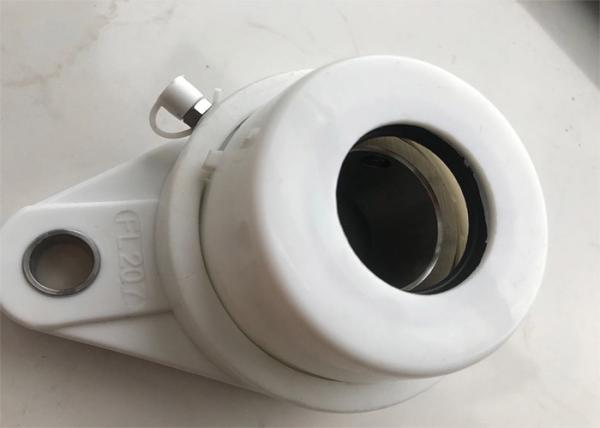

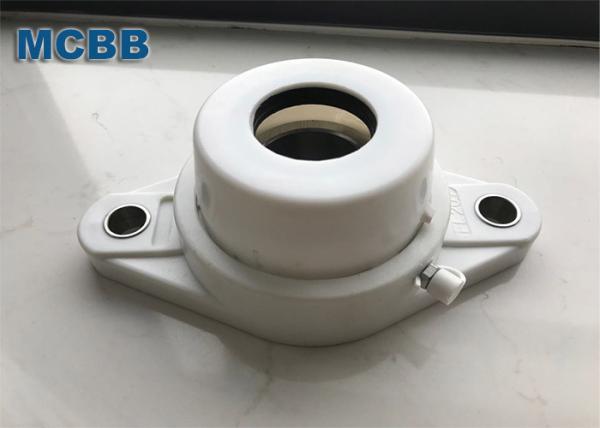

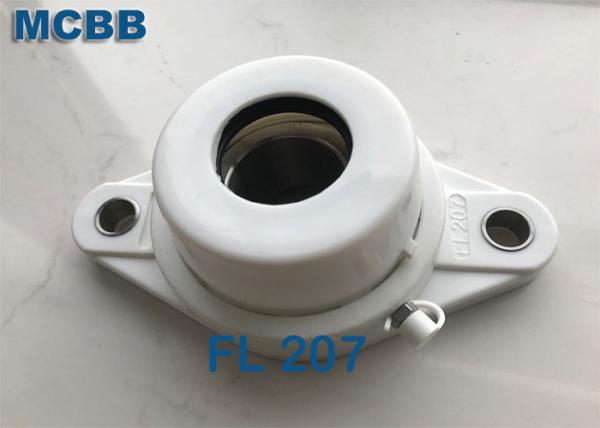

Product pictures show,

SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings


Application,

SSBFL205 Stainless Steel Ball Bearing , Sealed Pillow Block Bearings

Welcome contact us for price list of bearings, if you need. Here 24/7 in serve.
