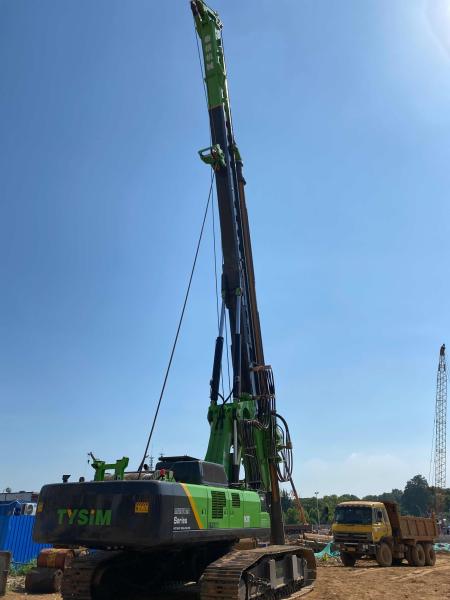

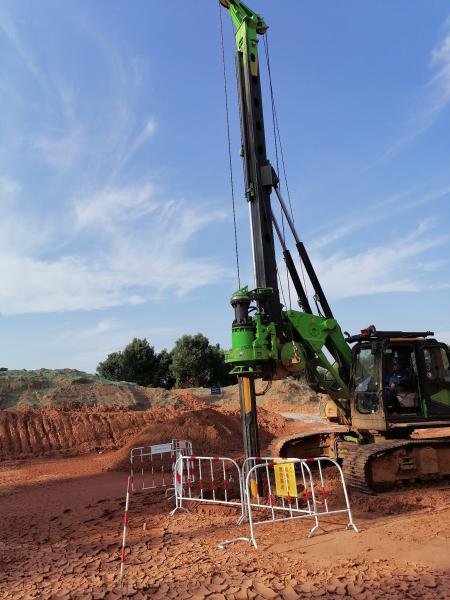

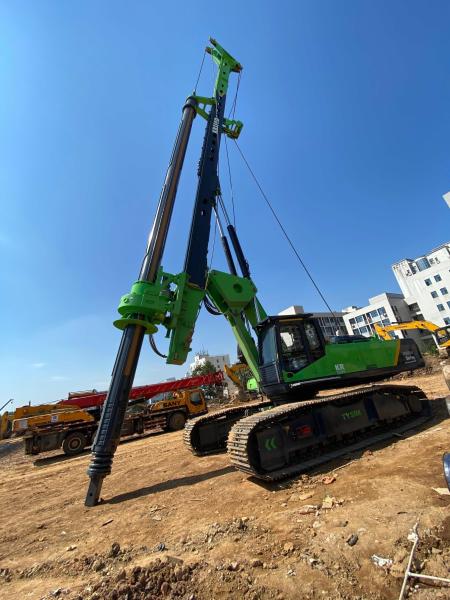

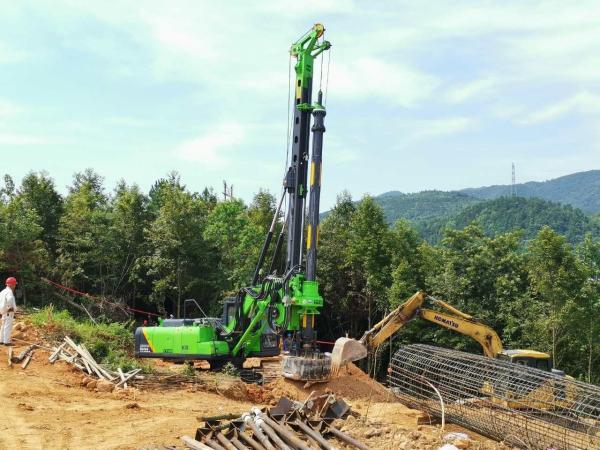

KR300C Hydraulic Piling CAT Chassis
KR300C Hydraulic Piling CAT Chassis
KR300C Hydraulic Piling CAT Chassis
KR300C Hydraulic Piling CAT Chassis
KR300C Hydraulic Piling CAT Chassis
KR300C Hydraulic Piling CAT Chassis
KR300C Hydraulic Piling CAT Chassis
KR300C Hydraulic Piling CAT Chassis
Specifications
Brand Name :
TYSIM
Model Number :
KR300C
Certification :
CE/ISO900A
Place of Origin :
China
MOQ :
1 set.
Price :
230000
Payment Terms :
L/C, T/T, D/P
Delivery Time :
1-3month
Packaging Details :
Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container
Description
Product Name:Piling Rig MachineMax Drilling Diameter:1000
Max Torque:300Max Drilling Depth:23(17+6)
Main Winch Force:320Crownd Force:220
Stroke:17Base Engine:CAT C-9
Highlight:

Diesel Engine Piling Rig

,

320KN Drilling Rig Machine

,

KR300C Piling Rig Machine

Drilling Rig KR300C Diesel Engine Piling Equipment
The original made in USA powerful Cummins engine is selected to integrate with the core technology of TYSIM in electronic
control system and hydraulic system to maximize its working performance.
The whole series of Tysim products have passed GB certification and EU EN16228 standard certification, better dynamic and
static stability design to ensure construction safety;
New and upgraded Caterpillar chassis with high quality to ensure the best performance of the whole machine;
Add pressure and power head torque perfectly match,
more efficient rock entry;
Technical specification of KR300C rotary drilling rig
Torque300kN.m
Max. diameter2200 mm
Max. drilling depth80/54 m
Speed of rotation7~23 rpm
Max. crowd pressure260 kN
Max. crowd pull260 kN
Main winch line pull340 kN
Main winch line speed72 m/min
Auxiliary winch line pull90 kN
Auxiliary winch line speed70 m/min
Stroke(crowd system)6000 mm
Mast inclination(lateral)±5°
Mast inclination(forward)5°
Max. operating pressure34.3 MPa
Pilot pressure3.9MPa
Travel speed1.5 km/h
Traction force510 kN
Operating height22685 mm
Operating width4300 mm
