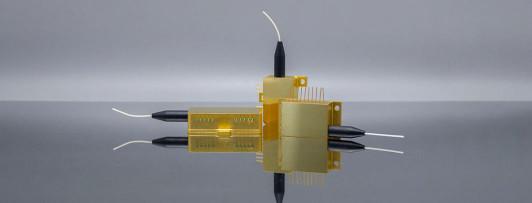

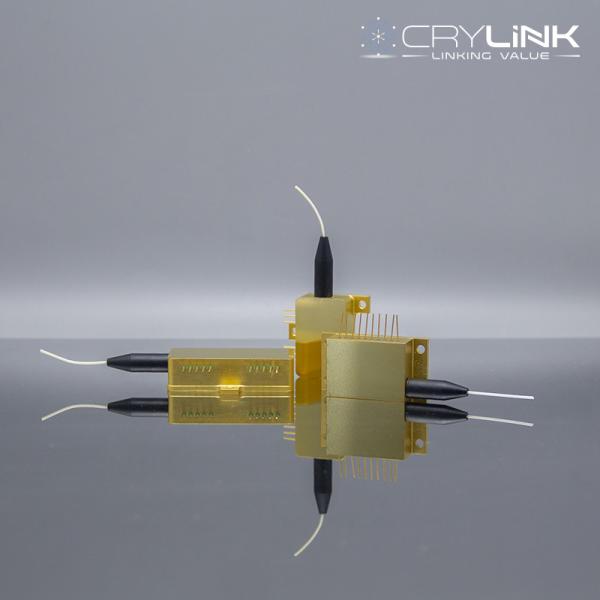

105um Fiber 808nm Narrow Linewidth Semiconductor Laser
105um Fiber 808nm Narrow Linewidth Semiconductor Laser
105um Fiber 808nm Narrow Linewidth Semiconductor Laser
105um Fiber 808nm Narrow Linewidth Semiconductor Laser
105um Fiber 808nm Narrow Linewidth Semiconductor Laser
105um Fiber 808nm Narrow Linewidth Semiconductor Laser
105um Fiber 808nm Narrow Linewidth Semiconductor Laser
105um Fiber 808nm Narrow Linewidth Semiconductor Laser
Specifications
Brand Name :
CRYLINK
Model Number :
808nm Narrow Linewidth Semiconductor Laser Module
Certification :
ISO9001
MOQ :
1
Price :
custom
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

808nm Narrow Linewidth Semiconductor Laser Module

(Download PDF)

Model and Parameter

Model CL808-0.5-3W-NSL003 CL808-0.5-600mW-NSL(PD)004
Optical
Parameter		 Continuous Output Power (mW) 3000 600
Center Wavelength (nm) 808±0.5 ±0.5
Spectral Width (nm) ≤0.1 ≤0.1
Electrical
Parameter		 Threshold Current (mA) 0.80 0.3
Operating Current (mA) 4.0 1
Operating Voltage (V) 1.9 1.8
Differential Efficiency (W/A) ≥1.0 1
PD Current (µA) 200-1000 <2000
TEC Maximum Current (A) 2.2 2.2
TEC Maximum Voltage (V) 8.7 8.7
Optical
Fiber Parameter		 Fiber Diameter (µm) 105 105
Fiber Cladding Diameter (µm) 125 /
Fiber Coating Diameter (µm) 250 /
Numerical Aperture 0.22 0.22
Connector SMA905,FC/PC SMA905
Other
Parameter		 Operating Temperature (℃) 10-30 10-30
Operating Relative Humidity (%) 75 75
Storage Temperature (℃) -20~70 -20~70
Storage Relative Humidity (%) 90 90
Pin Soldering Temperature,Max (℃) 250(10 Sec.) 250(10 Sec.)

  • Output power:3W
  • Wavelength:808±0.5nm
  • 105 µm multimode fiber output
  • 0.22NA
  • Line width <0.1nm
  • Temperature drift <0.007nm/℃, VBG wave lock
  • Built-in TEC
  • Research
  • Raman spectrometer
  • Laser particle size analyzer
  • Medical applications
  • Up-conversion material
Product tags

laser fiber sma905

,

sfp wavelength

,

triple wavelength diode laser
