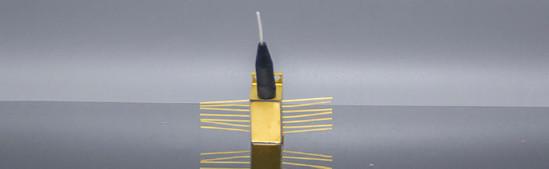

0.22NA Numerical Aperture 785nm Semiconductor Laser
0.22NA Numerical Aperture 785nm Semiconductor Laser
0.22NA Numerical Aperture 785nm Semiconductor Laser
0.22NA Numerical Aperture 785nm Semiconductor Laser
0.22NA Numerical Aperture 785nm Semiconductor Laser
0.22NA Numerical Aperture 785nm Semiconductor Laser
0.22NA Numerical Aperture 785nm Semiconductor Laser
0.22NA Numerical Aperture 785nm Semiconductor Laser
Specifications
Brand Name :
CRYLINK
Model Number :
785nm Stable Wavelength Semiconductor Laser
Certification :
ISO9001
MOQ :
1
Price :
custom
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

785nm Stable Wavelength Semiconductor Laser

(Download PDF)

Model CL785-0.5-600mW-SWL001
Optical Parameter Continuous Output Power (mW) 600
Center Wavelength (nm) 785±0.5
Spectral Width (nm) ≤0.3
Characteristics of Wavelength With Temperature (nm/℃) 0.02
Characteristics of Wavelength With Current (nm/A) 0.05
Electrical Parameter Threshold Current (mA) 0.36
Operating Current (mA) 1.4
Operating Voltage (V) 2.3
Differential Efficiency (W/A) 0.6
PD Current (µA) 100-600
Thermistor Parameters (kΩ/β(25℃)) 10±5%/3450
TEC Maximum Current (A) 2.2
TEC Maximum Voltage (V) 8.7
Optical Fiber Parameter Fiber Diameter (µm) 105
Fiber Cladding Diameter (µm) 125
Fiber Coating Diameter (µm) 250
Numerical Aperture 0.22
Connector SMA905
Other Parameter Operating Temperature (℃) 10-30
Operating Relative Humidity (%) 75
Storage Temperature (℃) -20~70
Storage Relative Humidity (%) 90
Pin Soldering Temperature,Max (℃) 250(10 Sec.)

  • Output power:600mW
  • Wavelength:785±0.5nm Lock wavelength
  • Fiber core diameter:105 µm
  • Numerical aperture:0.22NA
  • Current locking range:0.3-1.4A
  • Temperature locking range:15-35℃
