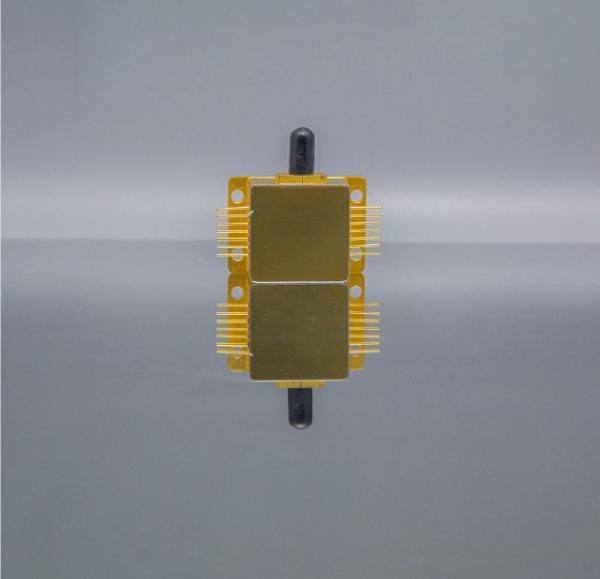

15W Material Processing 808nm Semiconductor Laser
15W Material Processing 808nm Semiconductor Laser
Specifications
Brand Name :
CRYLINK
Model Number :
808nm Semiconductor Laser Module
Certification :
ISO9001
MOQ :
1
Price :
custom
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

808nm Semiconductor Laser Module

(Download PDF)

Model and Parameter

Model Continuous Output Power (W) Spectral Width (nm) Operating Current (A) Fiber Diameter (µm)
CL808-3-2W-SML012 2 ≤6 5.0 200-400
CL808-10-7W-SML013 7 ≤6 12 200
CL808-10-6W-SML014 6 <3 7.6 105, 200
CL808-10-2W-SML015 2 ≤3 2.5 105
CL808-10-4W-SML016 4 ≤3 5.5 200
CL808-10-6W-SML017 6 ≤3 6.5 105
CL808-10-9W-SML018 9 ≤3 11 200
CL808-10-2W-SML019 2 ≤6 <2.5 200-400
CL808-10-4W-SML020 4 ≤6 5.0 200-400
CL808-10-7W-SML021 7 ≤6 8.5 200-400
CL808-10-8.5W-SML022 8.5 ≤6 11 200-400
CL808-10-7W-SML023 7 ≤6 12 200
CL808-10-8W-SML025 8 <6 10 200
CL808-10-15W-SML026 15 <6 9.5 400

  • Output power:2W,4W,6W,7W,8W,8.5W,9W,15W
  • Wavelength:808±10nm
  • Fiber core diameter:200-400 µm,105/200 µm,105 µm,200 µm,400 µm
  • Numerical aperture:0.22NA
  • Indicator light: 650nm
  • Medical application
  • Material processing
  • Laser pump source
