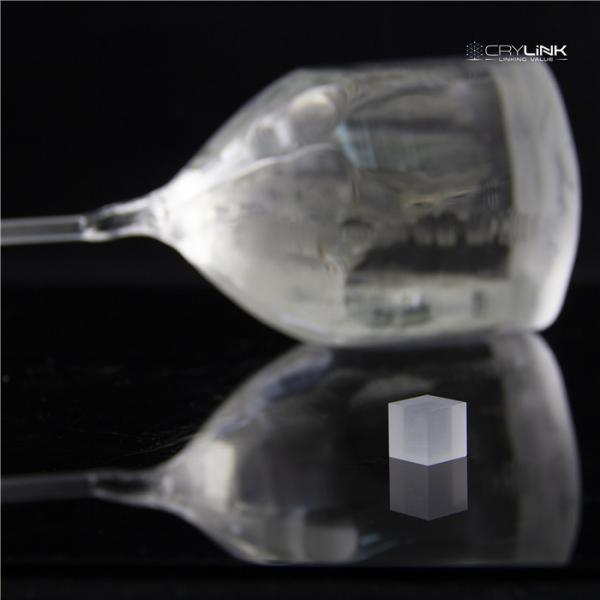

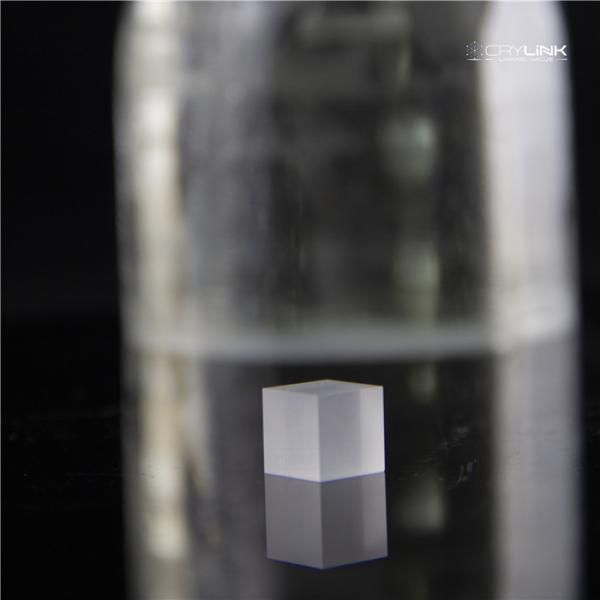

Ce YAP Scintillator Crystals Mechanically Chemical Resistant For Electron Microscopy
Ce YAP Scintillator Crystals Mechanically Chemical Resistant For Electron Microscopy
Ce YAP Scintillator Crystals Mechanically Chemical Resistant For Electron Microscopy
Ce YAP Scintillator Crystals Mechanically Chemical Resistant For Electron Microscopy
Specifications
Place of Origin :
China
Brand Name :
CRYLINK
Certification :
Iso9001
MOQ :
1 Pieces
Price :
negotiation
Packaging Details :
Carton
Delivery Time :
3-4 weeks
Payment Terms :
TT
Supply Ability :
100 pieces /month
Model Number :
CRYLINK-Ce YAP Scintillator Crystal
Name :
Ce YAP Scintillation Detector
Chemical composition :
YAlO3
Melting (℃) :
1875℃
Crystal structure :
Rhombic
Structure :
Pnma
Cell parameters() :
(a)5.329 (b)7.371 (c)5.180
Description
Description

Yttrium aluminum perovskite activated by cerium is a fast(28 ns decay time), mechanically and chemically resistant scintillation material. These scintillators have very low energy secondary X-ray emission, which is of advantage in imaging applications. YAP:Ce detectors are used for gamma and X-ray counting, electron microscopy, electron and X-ray imaging screens. The materials scintillation and mechanical properties enable their use in tomography systems.

Features

  • Fine physical and chemical characteristics

  • Suitable for ultra-thin screen applications

  • Suitable for tomography systems

  • Fast decay time: 28 ns

  • High light output

Applications

  • CT

  • PET

  • Particle accelerator

  • SPECT

Physical and Chemical Properties

Property

Ce:YAP

Chemical composition

YAlO3

Melting (℃)

1875℃

Crystal structure

Rhombic

Structure

Pnma

Cell parameters()

(a)5.329
(b)7.371
(c)5.180

Hardness

8.6

Density(g/cm3)

5.37

Thermal conductivity(W/℃cm,25℃)

0.11

expanding coefficient(10-6/℃)

(a)4.2
(b)11.7
(c)5.1

Refractive index(=1.079m)

(na)1.931
(nb)1.923
(nc)1.909

Scintillation properties:

Emission peak (nm)

360

Light yield (PhotonsMev-1)

25000

Relative light output (%NaI:Tl)

40

Decay time (ns)

25-38

Energy resolution

＜5%

Zeff

40

Afterglow (% after 6ms)

<0.005

Polishing Specification for Laser Grade

Orientation Tolerence

<0.5°

Thickness/Diameter Tolerance

±0.05 mm

Parallel

10’’

Perpendicular

5’

surface Quality

10/5

Clear Aperture

>90%

Chamfer

<0.2×45°

Maximum dimensions

Dia55mm

Standard product

Dimensions, mm

Decay time, ns

Light yeild, photons/Mev

Refractive Index

5×5×0.5

< 40

25000

1.91 - 1.93

5×5×1

10×5×0.5

10×5×1

10×10×0.5

10×10×1

25×25×0.5

25×25×1

dia5×0.5

dia5×1

dia10×0.5

dia10×1
