Specifications
Brand Name :
Philis
Model Number :
polyester filter cloth
Certification :
ISO
Place of Origin :
China
MOQ :
100 meters
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000m per week
Delivery Time :
within 10 days
Packaging Details :
standard export package
material :
polyester + fiberglass
color :
yellow
working temperature :
150-170
weight :
600gsm
thickness :
1.8mm
Description

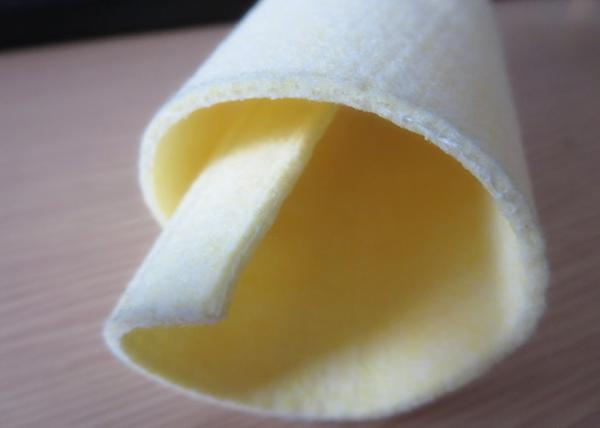

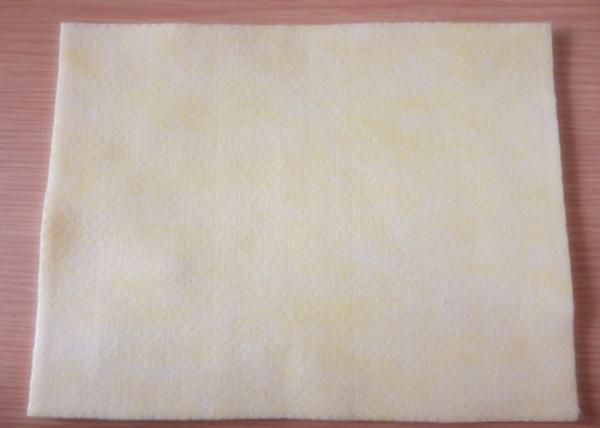

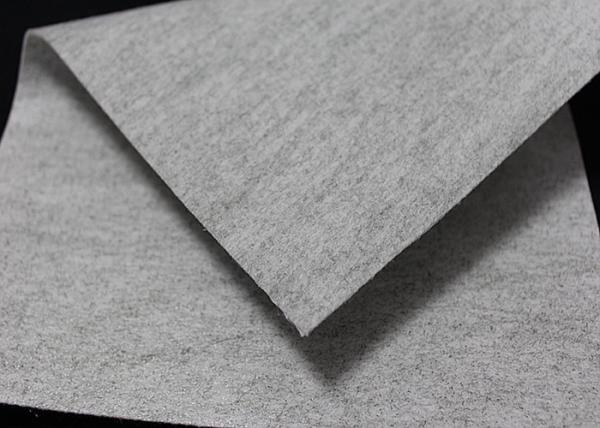

150 - 170 Degree Dacron / Polyester Filter Cloth Felt for High Temperature Filter

Quick Detail:

Normal temperature flue gas filtration felt

100% polyester

1.5mm to 3mm thickness

Weight from 350 to 800s

Width 2.1 meter maximum

High porosity ,good air permeability

Good price quality

Laminated compound,grads counterchange

Description:

High efficiency of removing dust particle

Easy clear and long useful life

Smooth surface after Singeing,Heat setting,Calendering.

Specifications:

Product No. : MT 560

Name: Polyester with fiberglass scrim
Weight(g/m2): 600
Material: Polyester with fiberglass scrim
Thickness(mm): 1.8
Air permeability(L/m2/s): 200-350
Tensile strength : Warp:≥1200
(N/5×20cm) Weft:≥1500

Tensile elongation: Warp:<35
(%) Weft:<40

Working Temp: Continuous:150
Short time:170
Finishing treatment: Singeing, Calendering

Technical Parameters
Item Parameters
Product Name Medium Temperature(MT)
Weight 700±5% g/m²
Thickness 2.2±10% mm
Air Permeability 8-12 m³/ m²/min
Breaking Strength Warp >1000 N/50*200mm
Weft >1500 N/50*200mm
Breaking Elongation Warp <10 %
Weft <10 %
Working Temperature Continuous 150 ℃
Instant 170 ℃
Finish Treatment Singeing Calendering Laminating Oil&Water Repellent

Material Polyester Fiber /Polyester scrim
Weight(g/m2) 400 450 500 550 600
Thickness(mm) 1.4 1.6 1.8 2.0 2.2
Air Permeability(m3/m2/min) 21 18 16 13 12

Tensile strength

(n/5 x 20cm)

Warp >1000 >1000 >1100 >1100 >1150
Weft >1350 >1400 >1500 >1550 >1600
Elongation (%) Warp < 25 < 25 < 25 < 25 < 25
Weft < 45 < 45 < 45 < 45 < 45

Working

temperature(℃)

Continues ≤130 ≤130 ≤130 ≤130 ≤130
Instant 150 150 150 150 150
Finishing Treatment Singeing,Het setting,Calendering

Notices:

Polyester felt can be produced by ordinary staple scrim or high strength filament scrim, due to the customer demands,weight ranges from 350 g/m2 to 800 g/m2.

Applications:

Cement industry Asphalt industry

Power Plants Coal industry

Carbon black industry Chemical industry Smelting industry

ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree

ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 DegreeISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree

Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
