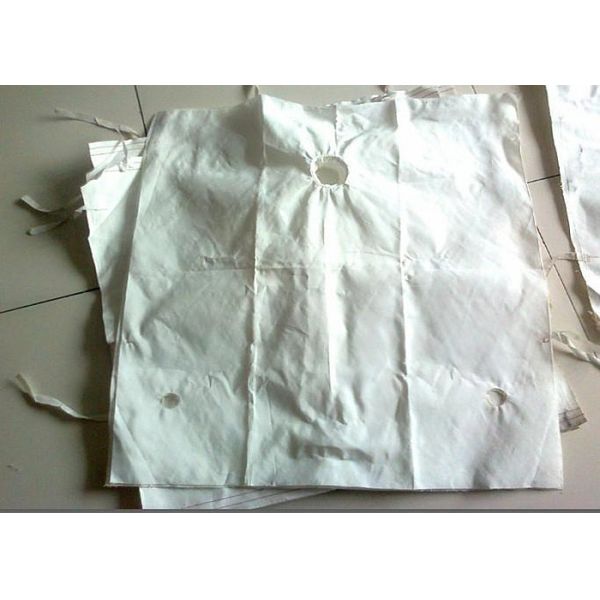

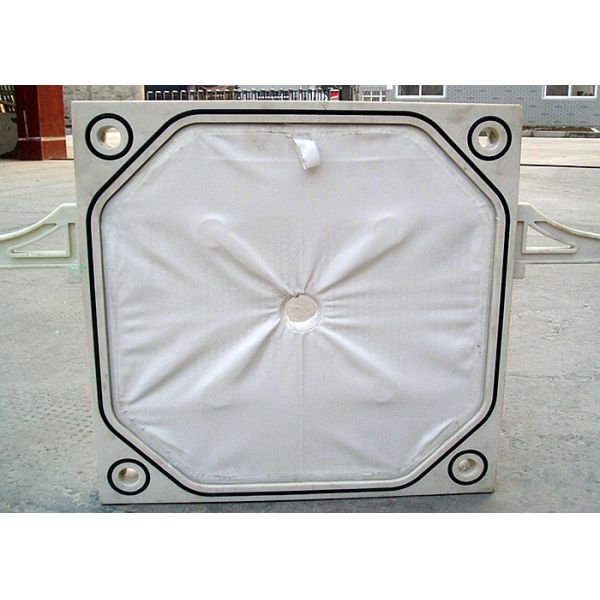

PP and PE Plate and Frame Filter Press Cloth designed for high-temperature filtration applications with excellent dimensional stability and abrasion resistance.
| Model | Material | Weight (g/m²) | Thickness (mm) | Air Permeability (l/m².s) | Breaking Strength (N/5x20CM) | Elongation (%) | Density (pcs/10cm) | Weave |
|---|---|---|---|---|---|---|---|---|
| PP 750A | PP | 450 | 0.79 | 26 | 3104 | 38 | 222 | PLAIN |
| PP 750B | PP | 517 | 1.27 | 30 | 2608 | 35 | 256 | TWILL |
| PP 750BB | PP | 740 | 1.40 | 8 | 10115 | 35 | 582 | SATIN |
| PP 750AB | PP | 650 | 1.30 | 20 | 7800 | 26 | 450 | TWILL |
| PP 4212 | PP | 380 | 1.07 | 123 | 2972 | 24 | 236 | TWILL |
| PE 8222 | PE | 700 | 1.5 | 8 | 720 | - | - | TWILL |
| Model | Application |
|---|---|
| P0802Y | Zinc oxide (needle felt) |
| T0803t | Potash fertilizer (needle felt) |
| P120D/P050D/P080D/P020MD | Double layer monofilament filter cloth |
| P050D, P030MD, P020MD | FGD, Gypsum |
| N9029, N199, P1010, P020MD | Iron ore concentrate |
| 9501-32, 9501-35 | Fly ash, coal ash |
| 9501-34 | Zinc oxide |
| P1010sdy | Zinc sulfate |
| PT9502b-41DY | Gold mining, vanadium mine |
| 9502-40 | Borax, vanadium pentoxide |
| PT9502b-31 | Gold |
| P750AB | Copper |
| P120/P190 | Phosphate |
| MP11343Y | Copper |
| 9502-402DY | Iron sulfide |
| 9503-32 | Catalyst |
| P190 | Beer filtration |
| P199s/P11636 | Sugar filtration |
| N120B | Palm oil filtration (anti-static) |
| P1010-37DY | Titanium Dioxide |
| 3233SY | White carbon black |
| 3233SY/108C/P801IIy | Kaolin |
| T3112BY/3233SYY | Pigment, dyestuff |
PET, PP, PA6, PA66 in monofilament, multifilament fabric, interwoven filter yarn
Filter press, centrifuge, leaf filter, fluid bed dryer, rotary/horizontal disc filter
Hangzhou Philis Filter Technology Co., Ltd. has grown to become one of the leading manufacturers of dust filtration spare parts in China.
We operate imported filter needle felt production lines from France (ASSELIN) and produce high-quality non-woven products according to customer requirements.
With 8 needle felt production lines, our annual production capacity reaches 20,000 square meters per day. We produce various filter fabrics including polyester, acrylic, fiberglass, PPS, Nomex, P84, PTFE, and woven filter fabrics.
We introduced German high technology to develop China's first filter bag production line, helping manufacturers save labor costs while improving work efficiency. Our advanced technology and simple operation have earned widespread customer praise.
