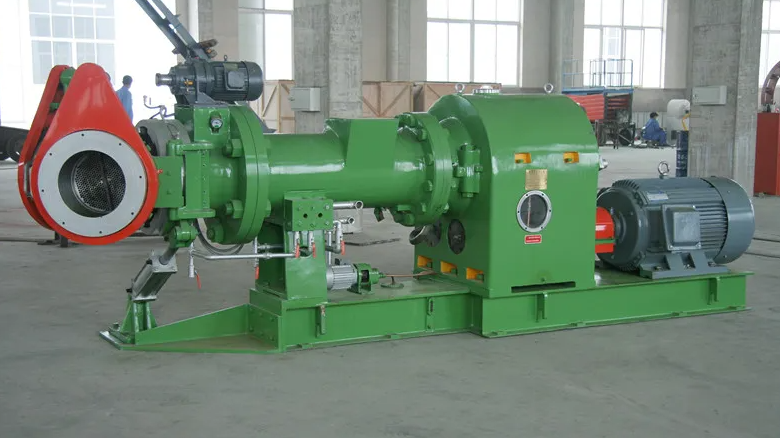

200mm Cold Feed Hot Feed Rubber Extruder 1 - 75 Rpm Rubber Sheet Extruder
200mm Cold Feed Hot Feed Rubber Extruder 1 - 75 Rpm Rubber Sheet Extruder
200mm Cold Feed Hot Feed Rubber Extruder 1 - 75 Rpm Rubber Sheet Extruder
200mm Cold Feed Hot Feed Rubber Extruder 1 - 75 Rpm Rubber Sheet Extruder
Specifications
Brand Name :
HC
Model Number :
SKS
Certification :
ISO
Place of Origin :
Qingdao
MOQ :
1
Price :
$10000
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
30days
Packaging Details :
Pallet
Screw Diameter (mm) :
250mm
Screw L/D Ratio :
14:1
Screw Speed (Rpm) :
1-75 Rpm
Safety-System :
with an Emergency Brake Device, Emercency Buttons.
Production Capacity :
30sets Per Month
Description

Product Description

The hot feed rubber extruder is used for extruding half-finished rubber products such as inner tubes, tire treads, rim bands, rubber tubes, etc.

1: The material of the screw is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface is HRC60-65 and the depth is 0.5-0.7mm.
2: The material of bush is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface for the inner hole is HRC60-65 and the depth is 0.5-0.7mm.
3: The motor of the equipment is direck current motor with stepless speed regulation. The decelerator is a gear decelerator with cylinder gears of two grades hardness. The precision of transmission is 6 steps.

Technical Parameters

    • Type and spec. XJ-65 XJ-85 XJ-115 XJ-150 XJ-200 XJ-250
      Screw dia.(mm) 65 85 115 150 200 250
      L/D 4 4.8 4.8 4.4 4.4 4.5
      Screw rotational speed(r/min) 20.27 27.4 20 ~ 60 27 ~ 81 22.4 ~ 67.2 19.7 ~ 59.1
      35.47 53.72
      Motor power (kw) 7.5 17 30 15.3 ~ 55 33.3 ~ 100 33.3 ~ 100
      Overall dimension L×W×H(mm) 1600×675×1053 2050×735×1275 2770×665×1300 3585×814×1470 4549×1140×1750 4950×1150×1483
      Capacity (kg/h) 50 ~ 80 62 ~ 270 100 ~ 350 800 1500 ~ 2200 3500
      Total weight(t) 1.5 2.6 3.3 4.5 7.21 9
    • 200mm Cold Feed Hot Feed Rubber Extruder 1 - 75 Rpm Rubber Sheet Extruder

Packing Display

200mm Cold Feed Hot Feed Rubber Extruder 1 - 75 Rpm Rubber Sheet Extruder
