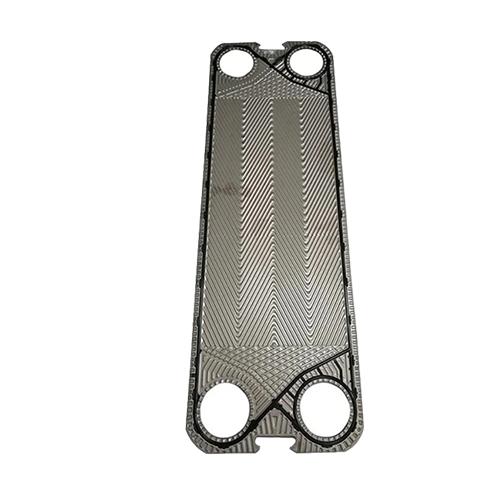

Sondex SF53 Plate And Gasket Replacement For Jam Milk Beer Chiller Plate Type Heat Exchanger
Sondex SF53 Plate And Gasket Replacement For Jam Milk Beer Chiller Plate Type Heat Exchanger
Specifications
Brand Name :
SONDEX
Model Number :
SF53
Certification :
FDA Certified,SGS,ISO9001,ISO14001 etc.
Place of Origin :
Qingdao,China
MOQ :
10Pcs
Price :
$15
Payment Terms :
L/C,T/T,D/P,Western Union
Supply Ability :
10000Pcs/Day
Delivery Time :
5-8 Days
Packaging Details :
Wooden Case+Pallet
Thickness :
0.5mm, 0.6mm
Sectional Shape :
Corrugation
Applications :
District heating, district cooling, marine oil cooling, chemical, food industry
Product Name :
NBR EPDM FKM Gasket From GEA Plate Heat Exchanger Ss316 Plate Replacement VT40
Flexibility :
Flexible Material
Material of Plate Suited Liquid Kinds :
Stainless Steel (AISI304.316 Etc), Pure Water, Normal Water, Oil for eating, Mineral Oil, Ti, Ti-pd, Sea Water, Saline Water, Mineral Water, 20Cr, 18Ni, 6Mo (254SMO), Dilute Sulphuric Acid, Organic Water Solution, Ni, High-temp and concentration caustic so
Description
  • High-Quality Material: Our SONDEX SF53/SF123/SF160/SW26A EPDM Plate is crafted from premium materials, including SS304/SS316/SS316L/Titanium/Alloy C276, ensuring optimal durability and resistance to corrosion in various industries, including food & beverage, waste water treatment, and chilled water applications.
  • Versatile Applications: This heat exchanger plate is suitable for a wide range of industries, such as food & beverage factories, sugar mills, and ethanol production facilities, catering to diverse needs and requirements.
  • Advanced Design: The plate heat exchanger features a unique corrugated plate design with a channel gap of 2-6 mm, facilitating efficient heat transfer and ensuring optimal performance in various settings.
  • Comprehensive Warranty and Support: We offer a 1-year warranty, along with machinery test reports and video outgoing-inspection, providing customers with peace of mind and assurance of product quality.
  • Global Availability: Our showroom locations in Vietnam, the Philippines, Indonesia, and Thailand ensure easy access and convenient purchasing experience for customers worldwide, including those in the Asia-Pacific region.
    Plate Type
    Single plate
    Flow Channel Between Plates
    3.5mm ~12.0mm (Optional depends on working condition)
    Plate Thickness
    0.4mm ~ 1.0mm
    Heat Transfer Plate Material
    Stainless steel - 304/304L, 316/316L, 254 SMO, Titanium, Hastelloy C-276, others
    Gasket Material
    NBR, EPDM, HNBR, HEPDM, NBR-HT, FKM, Viton A, Viton G
    Pressure Plate Material
    Carbon steel, stainless steel and others on request
    Temperature Range
    -50℃ ~ +180℃ Varies with the media and gasket selection.
    Maximum Pressure
    Maximum standard pressure 10 bar / 16 bar
    Port Connection
    DN32, DN50, DN80, DN125, DN150, DN200, DN250, DN350
