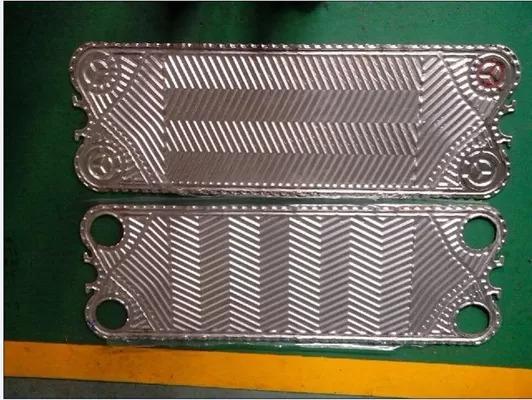

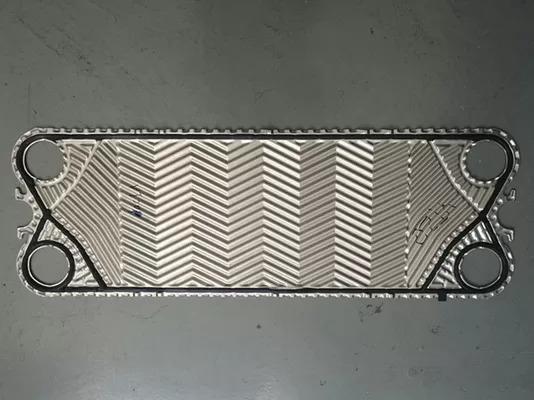

GEA Plate Heat Exchangers VT20 OEM PHE Plates Gaskets For Food Industry
GEA Plate Heat Exchangers VT20 OEM PHE Plates Gaskets For Food Industry
GEA Plate Heat Exchangers VT20 OEM PHE Plates Gaskets For Food Industry
GEA Plate Heat Exchangers VT20 OEM PHE Plates Gaskets For Food Industry
GEA Plate Heat Exchangers VT20 OEM PHE Plates Gaskets For Food Industry
GEA Plate Heat Exchangers VT20 OEM PHE Plates Gaskets For Food Industry
Specifications
Brand Name :
GEA
Model Number :
VT20
Certification :
FDA Certified,SGS,ISO9001,ISO14001 etc.
Place of Origin :
Qingdao,China
MOQ :
10Pcs
Price :
$2.8
Payment Terms :
L/C,T/T,D/P,Western Union
Supply Ability :
10000Pcs/Day
Delivery Time :
5-8 Days
Packaging Details :
Wooden Case+Pallet
Thickness :
0.5mm, 0.6mm
Sectional Shape :
Corrugation
Applications :
District heating, district cooling, marine oil cooling, chemical, food industry
Product Name :
NBR EPDM FKM Gasket From GEA Plate Heat Exchanger Ss316 Plate Replacement VT40
Flexibility :
Flexible Material
Material of Plate Suited Liquid Kinds :
Stainless Steel (AISI304.316 Etc), Pure Water, Normal Water, Oil for eating, Mineral Oil, Ti, Ti-pd, Sea Water, Saline Water, Mineral Water, 20Cr, 18Ni, 6Mo (254SMO), Dilute Sulphuric Acid, Organic Water Solution, Ni, High-temp and concentration caustic so
Description

VT20/VT20P/VT20M Plate Heat Exchanger Construction


With Safetytherm, experts have succeeded in designing an extremely reliable version of a conventional sealed plate heat exchanger. Two extremely thin plates with welded inlet and outlet openings form a small leakage gap within a double-wall plate. In the seldom event of a plate crack occurring, this clever solution with special leakage channels ensures that a mixture of a non-compatible media is excluded and the leakage is visible.


The compact design and function of Safetytherm meets the high standards. Our customers can be certain of one thing: Safetytherm is a shining example of an effective and low-maintenance double-plate solution which guarantees a high level of production safety.


VT20 Model Plate Heat Exchanger Specification

Surface Area 0.26㎡
Plate Theta Angle 127 ° 127 °
Connection Diameter 79 mm
Plate Corrugate Thickness 3.9 mm
Plate Centre Length* Width 868 * 212 mm
Plate Shape Length*Width 999 * 337 mm


Model: VT20/VT20P/VT20M Name: Plate Heat Exchanger Gasket/Plate
Max Design Pressure: 2.5 MPaG Max. Plate Material: Stainless Steel, Titanium, High Nickel Alloy, Nickel And Others
Gasket Material: NBR, EPDM, FPM, NBRHT, VITON Surface Area: 0.26 ㎡
Plate Theta Angle: 127 ° 127° Connection Dia: 79 Mm
Plate Corrugate Thickness: 3.9 Mm Plate Centre Length* Width: 868 * 212 Mm
Plate Shape Length*Width: 999 * 337 Mm

High Light: Food Industry PHE Plates
Food Industry PHE Gaskets
VT20 GEA Plate
