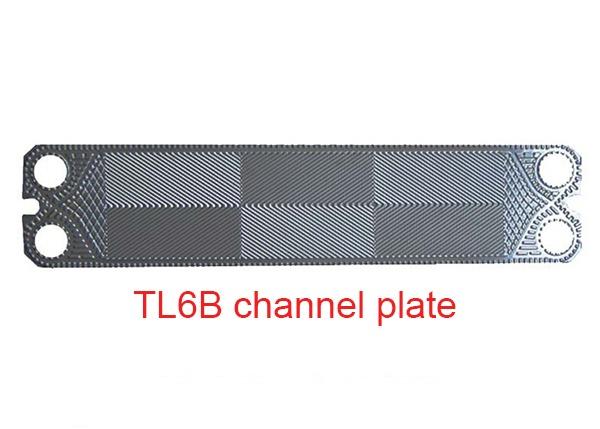

TL6B TL10P Heat Exchanger Channel Plate For Heat Exchanger Sealing
TL6B TL10P Heat Exchanger Channel Plate For Heat Exchanger Sealing
TL6B TL10P Heat Exchanger Channel Plate For Heat Exchanger Sealing
TL6B TL10P Heat Exchanger Channel Plate For Heat Exchanger Sealing
Specifications
Brand Name :
Alfa Laval
Model Number :
TL series
Certification :
FDA Certified,SGS,ISO9001,ISO14001 etc.
Place of Origin :
Qingdao,China
MOQ :
10Pcs
Price :
$4.1
Payment Terms :
L/C,T/T,D/P,Western Union
Supply Ability :
10000Pcs/Day
Delivery Time :
5-8 Days
Packaging Details :
Wooden Case+Pallet
Thickness :
0.5mm, 0.6mm
Sectional Shape :
Corrugation
Applications :
District heating, district cooling, marine oil cooling, chemical, food industry
Product Name :
NBR EPDM FKM Gasket From GEA Plate Heat Exchanger Ss316 Plate Replacement VT40
Flexibility :
Flexible Material
Material of Plate Suited Liquid Kinds :
Stainless Steel (AISI304.316 Etc), Pure Water, Normal Water, Oil for eating, Mineral Oil, Ti, Ti-pd, Sea Water, Saline Water, Mineral Water, 20Cr, 18Ni, 6Mo (254SMO), Dilute Sulphuric Acid, Organic Water Solution, Ni, High-temp and concentration caustic so
Description
Model NO.
TL10, TL10P, TL10B, TL6B, TL35S, TL15B
Sectional Shape
Corrugation
Performance
Pressure Resistant, Temperature Resistant, Corrosion Resistant
Material
NBR, EPDM, HNBR, Va, Vg
Style
Plate Type
Type of Plate
Intermediate Plate
Plate Pattern
Wavy/Herringbone
Warranty
1 Year
After-Sales Service
Supply Free Spare Parts During Warranty Time
Application
Heat Exchanger Spare Parts
Principle
Recuperative Heat Exchanger
Brand
Alfa
Plate Hole
0 Hole, 1 Hole, 2 Holes, 3 Holes, 4 Holes
Plate Material
SS304, SS316L, Titanium, Hastelloy, Nickel, 254sm
Transport Package
Wooden Packaging /Customized
Specification
SS304, SS316, Titanium, Nickle, Smo254, Hastolly
Trademark
KRB OEM
Origin
China
HS Code
841950050
Production Capacity
10000PCS/Per Month

Product Description

Product Description :
Plate heat exchanger is made of stainless steel or alloy plate, which can withstand various corrosive media. EXHeat uses heat mixing technology to integrate heat transfer and pressure drop of the heat exchanger, it can operate at a better working point. Internal bypass, double channel technology and unequal flow cross-sectional assembly provide the perfect solution for conditions with large differences in the flow of media on both sides. Gasket is designed between the plates. Gasket is the structure of a double sealing gasket and has a signal hole. When the medium leaks first, it can be released through the signal port and solve the problem in advance, so as not to cause the mixing of the two media.

Main features of Plate&gasket
material of Plate : SS304, SS316,Smo254, Nickle, Hastolly ,Titanium.
material of Gasket:NBR, HNBR, EPDM, HEPDM,VA,VG.
plate material
Support available
SS304, SSI316L
Pure water, soft water, mineral oil,mineral water
Hastelloy
concentration sulfuric acid etc.
Titanium
Sea water, saline water, vegetable water
254Smo

Diluted sulfuric acid
Nickel Caustic soda at high temperature and concentration
Seal material
Temperature range (ºC)
Support available
NBR
120
Water, sea water, mineral oil, salt water
HT NBR
130
Mineral oil, thermal oil
HNBR 150

High temperature mineral oil, high temperature water
EPDM
150
Hot water, steam, acid, alkali
HT EPDM
165
High Water Tempearture
VA/VG 180 high temperature oil
