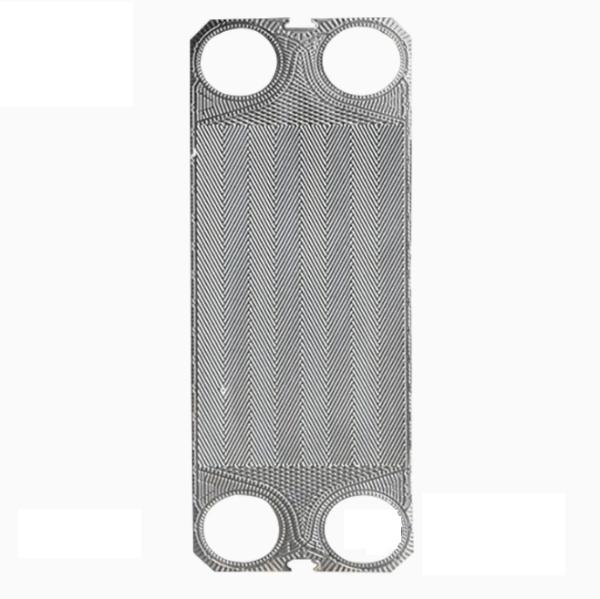

Sondex S188 Cooling And Heating High Efficiency Heat Transfer Plate For Heat Transfer
Sondex S188 Cooling And Heating High Efficiency Heat Transfer Plate For Heat Transfer
Specifications
Brand Name :
SONDEX
Model Number :
S188
Certification :
FDA Certified,SGS,ISO9001,ISO14001 etc.
Place of Origin :
Qingdao,China
MOQ :
10Pcs
Price :
$12
Payment Terms :
L/C,T/T,D/P,Western Union
Supply Ability :
10000Pcs/Day
Delivery Time :
5-8 Days
Packaging Details :
Wooden Case+Pallet
Material of Plate Suited Liquid Kinds :
Stainless Steel (AISI304.316 Etc), Pure Water, Normal Water, Oil for eating, Mineral Oil, Ti, Ti-pd, Sea Water, Saline Water, Mineral Water, 20Cr, 18Ni, 6Mo (254SMO), Dilute Sulphuric Acid, Organic Water Solution, Ni, High-temp and concentration caustic so
Thickness :
0.5mm, 0.6mm
Sectional Shape :
Corrugation
Applications :
District heating, district cooling, marine oil cooling, chemical, food industry
Product Name :
NBR EPDM FKM Gasket From GEA Plate Heat Exchanger Ss316 Plate Replacement VT40
Flexibility :
Flexible Material
Description

Production parameter:


Model: S188 Name: Plate Heat Exchanger Gasket/Plate
Max Design Pressure: 2.5 MPaG Max. Plate Material: Stainless Steel, Titanium, High Nickel Alloy, Nickel And Others
Gasket Material: NBR, EPDM, FPM, NBRHT, VITON Surface Area: 1.88㎡
Plate Theta Angle: 50° 126° Connection Dia: 303mm
Plate Corrugate Thickness: 3.5 Mm Plate Centre Length* Width: 2120*480 Mm
Plate Shape Length*Width: 2504*868 Mm

High Light: Sonderlock Type PHE gasket
S188 PHE gasket
S187 PHE plate


Our advantage:

1. Quality
ISO certificate & TMQ manage, serious quality check, our value message is " quality is our culture", with us your money in safe your business in safe.
 2. Quality guarantee
the thickness of plate: 0.5-0.6mm
gasket content is 70%, we can make 68% use import material.
Ater-sales provided.
3. Stronger team
stronger & professtioal technicist and R&D department.

4. Design
New design painting drying plate heat exchanger in color brilliancy. Reliable performance & wide varieties and complete in specifications
5. Price
Be capable of beat your competitor, because reliable quality, superior meateial, latest technology & finely processed,complete in specifications &quality and quantity assured, the most importantly is reliable reputation
6. Shipping & packing
general 7 working days, we accept MQQ for your testing.
Plywood case & carton for protect goods.
7. Terms of payment
T/T Visa Western UnionPaypal
8. Best service just for best of you:transfer heat and walks besides with you only for provide the best products and services to keep our customers satisfied we everlasting target.
