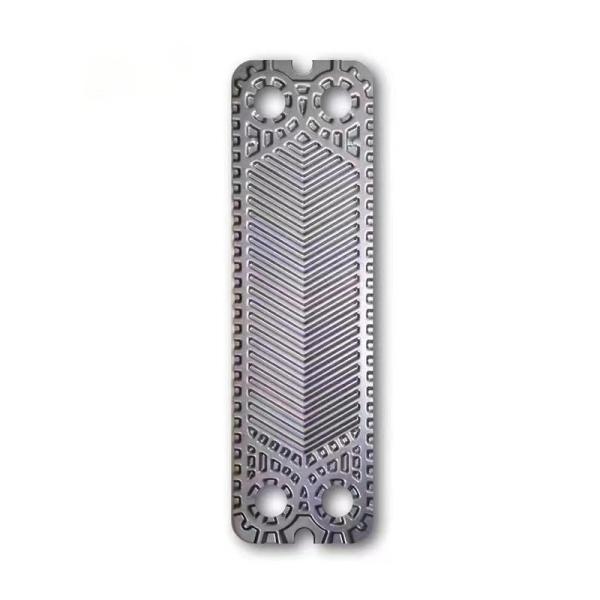

Keribo OEM Stainless Steel M3 Plates Temperature Resistant Heat Exchanger Plate
Keribo OEM Stainless Steel M3 Plates Temperature Resistant Heat Exchanger Plate
Specifications
Brand Name :
Alfal laval
Model Number :
M3
Certification :
IOS
Place of Origin :
Qingdao,China
MOQ :
200PCs
Price :
$5
Supply Ability :
5000/Week
Delivery Time :
5-7Days
Packaging Details :
BOX/Pallet/Wooden Box
Size :
Various sizes available
Plate Embossing :
Chevron or diamond pattern
Type :
Removable plate for heat exchanger
Plate Thickness :
0.5mm
Warranty :
1 Year
Plate Design :
Single or double wall
Description

Product Specifications

Plate heat exchanger plate is specially used to isolate medium and conduct heat exchange in plate heat exchanger, which is an important part of plate heat exchanger. Its main materials include stainless steel (SUS304.316), titanium and titanium palladium (Ti, Ti Pd), 20Cr, 18Ni, 6Mo (254SMO), alloy (C276), copper (H68), etc.


Plate Type Single plate for PHE
Flow Channel Between Plates 3.5mm ~12.0mm (Optional depends on working condition)
Plate Thickness 0.4mm ~ 1.0mm
Heat Transfer Plate Material Stainless steel 304, 316/316L, 254 SMO, Titanium, Hastelloy C-276, others
Gasket Material NBR, EPDM, HNBR, HEPDM, NBR-HT, FKM, Viton A, Viton G
Pressure Plate Material Carbon steel, stainless steel and others on request
Temperature Range -50ºC ~ +180ºC Varies with the media and gasket selection.
Maximum Pressure Maximum standard pressure 10 bar / 16 bar
Port Connection DN32, DN50, DN80, DN125, DN150, DN200, DN250, DN350


Keribo OEM Stainless Steel M3 Plates Temperature Resistant Heat Exchanger Plate


Product future


1:High temperature corrosion resistance:The plate is made of 304/316L/titanium plate/Hastelloy high-strength corrosion-resistant material, free from high temperature medium, and has a long service life.

2:Corrugated runner, high heat transfer: The special corrugated structure of the plate enables the fluid to obtain a high heat transfer coefficient at a low flow rate, which is 3-5 times that of the traditional shell.

3:Diversion area design, less scaling: The design of the split flow area has high plate pressing accuracy, uniform surface medium flow rate, pressure drop, and is not easy to scale, which can improve the overall heat transfer efficiency.

4:Complete molds: Imported plate exchange and domestic plate exchange, complete molds, meet a variety of media and working conditions, select a variety of adhesive strips, and have a wide range of applications.


Our Advantages
1. The nitrogen freezing burr processor we used which is adopting advanced technology in china. The equipment is easy to operate with high efficiency and precision which remove the raw edges without damaging products.

2. The advanced full-size automatic measuring machine was introduced from Israel can make automatic quality inspection and sorting .The detection accuracy reaches 10μm and the speed reaches 300 pieces/min.

3. We have a professional customer service team with a complete service system and strong technical supports.

4. Fast production & in-time delivery that never delay your project and usage.

5. One-stop custom service and value-added service to save your time and cost.

6. OEM/ODM Services are available. We can design and produce various Non-standard.Rubber Parts according to your PDF, 3D or STEP drawing files.
Keribo OEM Stainless Steel M3 Plates Temperature Resistant Heat Exchanger Plate
